STARTER CLUTCH

GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

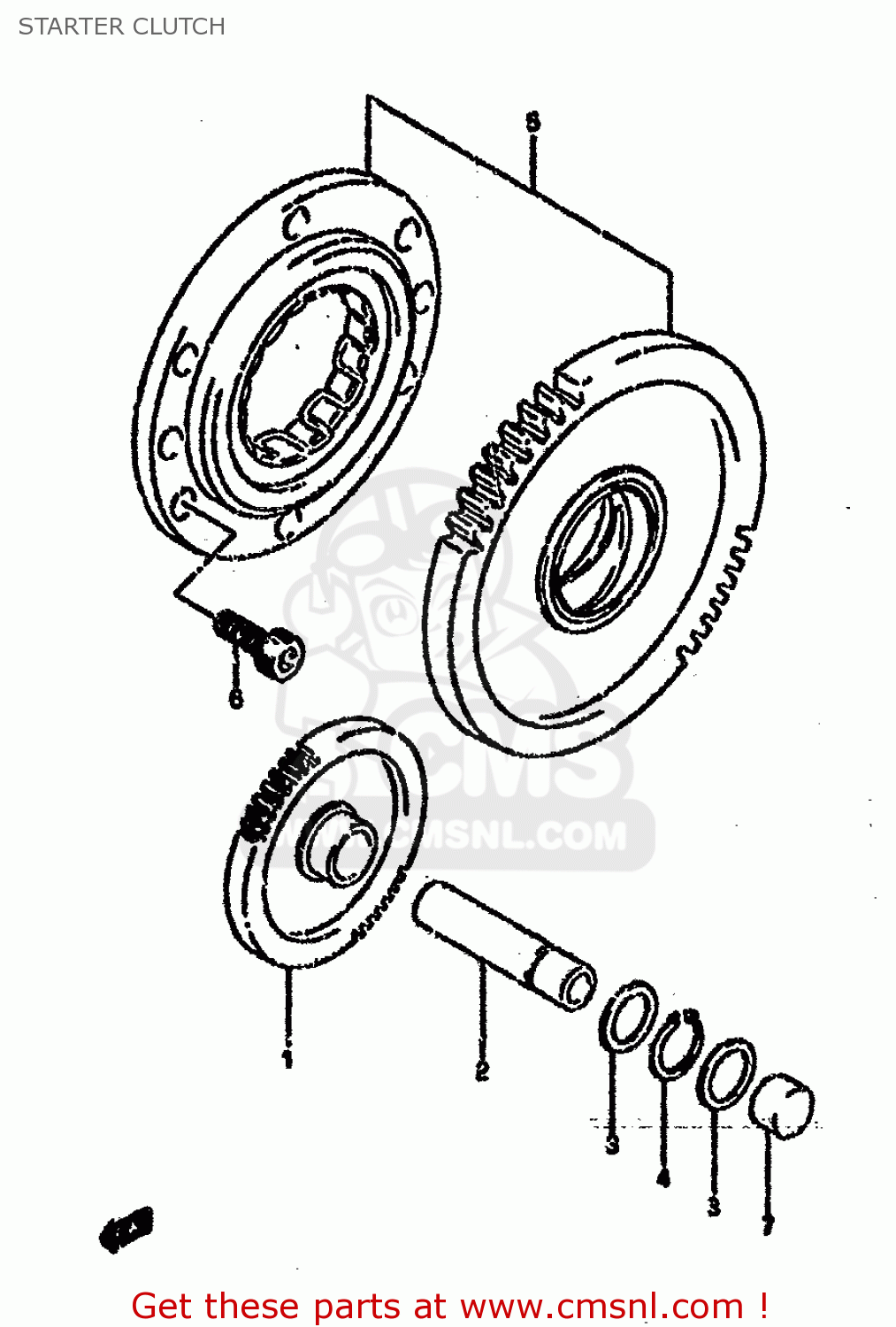

Starter clutch diagram GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

STARTER CLUTCH GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

STARTER CLUTCH GSXR750SP 1994 (R) FRANCE GERMANY (E04 E22)

prices are in EUR

ref

part #

description

quantity

1

1261121E00
ref: 1

GEAR,STARTER IDLE (NT:1

€ 73.50

2

1261617E00
ref: 2

SHAFT,STARTER IDLE GEAR

€ 10.50

3

0822112185
ref: 3

WASHER

€ 2.50

4

0833131126
ref: 4

CIRCLIP,12 MM

€ 2.00

5

1260021810
ref: 5

CLUTCH SET,STARTER

€ 251.00

6

0713006123
ref: 6

BOLT,STRANGER

€ 2.50

7

0924112006
ref: 7

PLUG

€ 5.50
