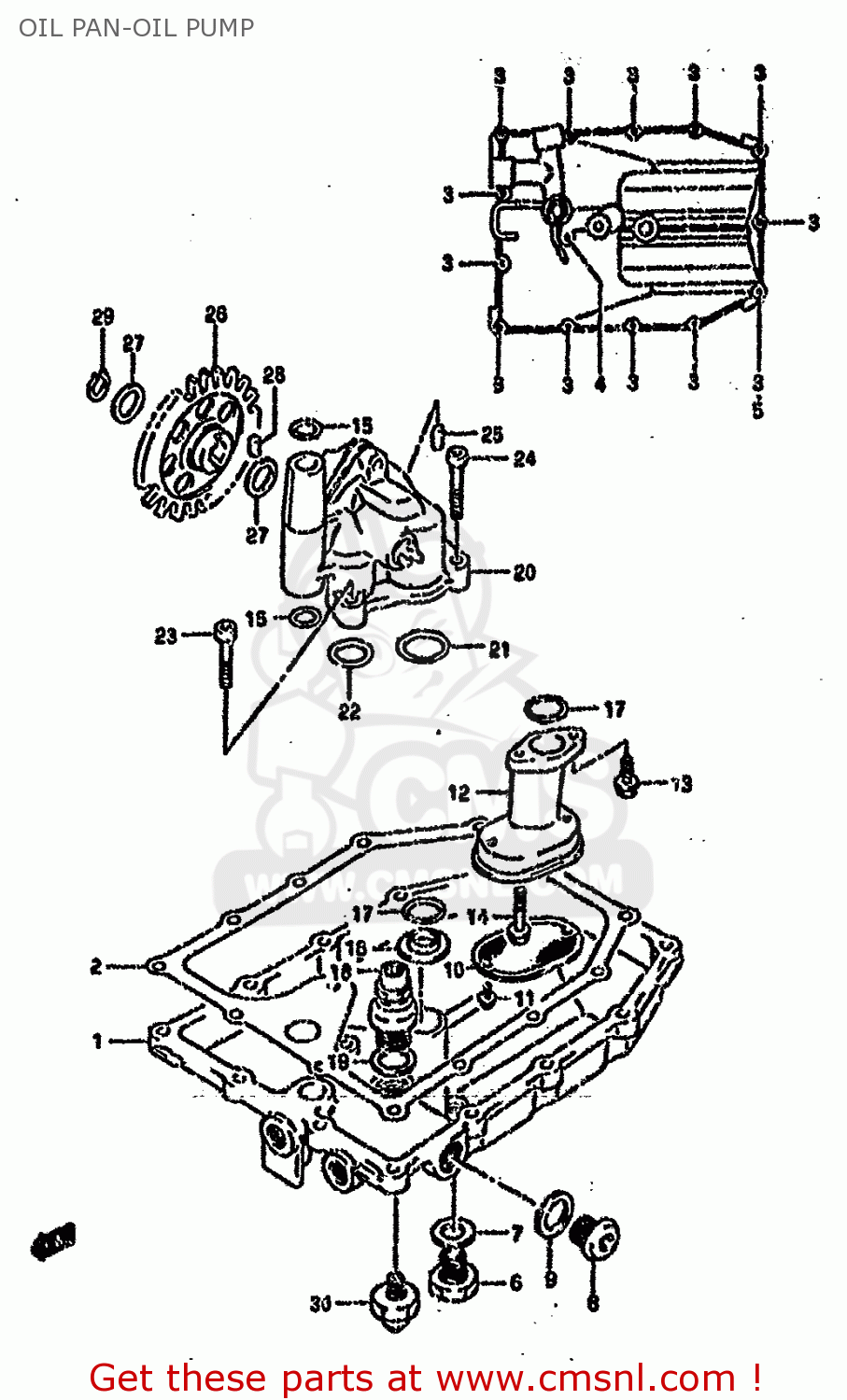

OIL PAN-OIL PUMP

ref

part #

description

quantity

1

1151146E02
ref: 1

PAN,OIL

€ 539.00

2

1148917E01
ref: 2

GASKET,OIL PAN (NAS)

€ 18.50

3

0154706253
ref: 3

SCREW

€ 2.50

4

0154706353
ref: 4

BOLT

€ 3.00

5

0916806024
ref: 5

GASKET(5.8X11X1.2) (NAS)

€ 2.00

6

0924714001
ref: 6

PLUG

€ 5.00

7

0916814002
ref: 7

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

8

0924816010
ref: 8

PLUG

€ 4.50

9

0916816002
ref: 9

GASKET(16X22X2) (NAS)

€ 2.00

10

1652038A00
ref: 10

STRAINER,ENGINE OIL

€ 7.50

11

0211275123
ref: 11

SCREW

€ 2.50

12

1652546E01
ref: 12

PROTECTOR,OIL STRAINER

€ 26.50

13

0155006203
ref: 13

BOLT

€ 2.50

14

0155006553
ref: 14

BOLT, HYDRAULIC UNIT NO.2

€ 2.00

15

0928012012
ref: 15

O RING(D:2.4,ID:11.8)

€ 5.00

16

1652927A01
ref: 16

GASKET,OIL OUTLET (NAS)

€ 2.00

17

0928018009
ref: 17

O RING(D:3.2,ID:17.8)

€ 8.00

18

1644017C00
ref: 18

VALVE ASSEMBLY,OIL RELIEF

€ 68.50

19

0916816002
ref: 19

GASKET(16X22X2) (NAS)

€ 2.00

20

1640017E00
ref: 20

PUMP ASSY,ENGINE OIL

€ 277.50

21

0928026005
ref: 21

O RING(D:2.4,ID:26.2)

€ 2.50

22

0928018009
ref: 22

O RING(D:3.2,ID:17.8)

€ 8.00

23

0713006303
ref: 23

BOLT

€ 3.00

24

0713006353
ref: 24

BOLT

€ 3.50

25

0421109129
ref: 25

PIN

€ 2.00

26

1633219C00
ref: 26

GEAR,OIL PUMP DRIVEN(NT:37)

€ 60.00

27

0822112205
ref: 27

SHIM

€ 1.50

28

0926105006
ref: 28

PIN(5X18)

€ 1.50

29

0833131126
ref: 29

CIRCLIP,12 MM

€ 2.00

30

3782033D00
ref: 30

SWITCH ASSEMBLY,OIL PRESSURE

€ 29.00
