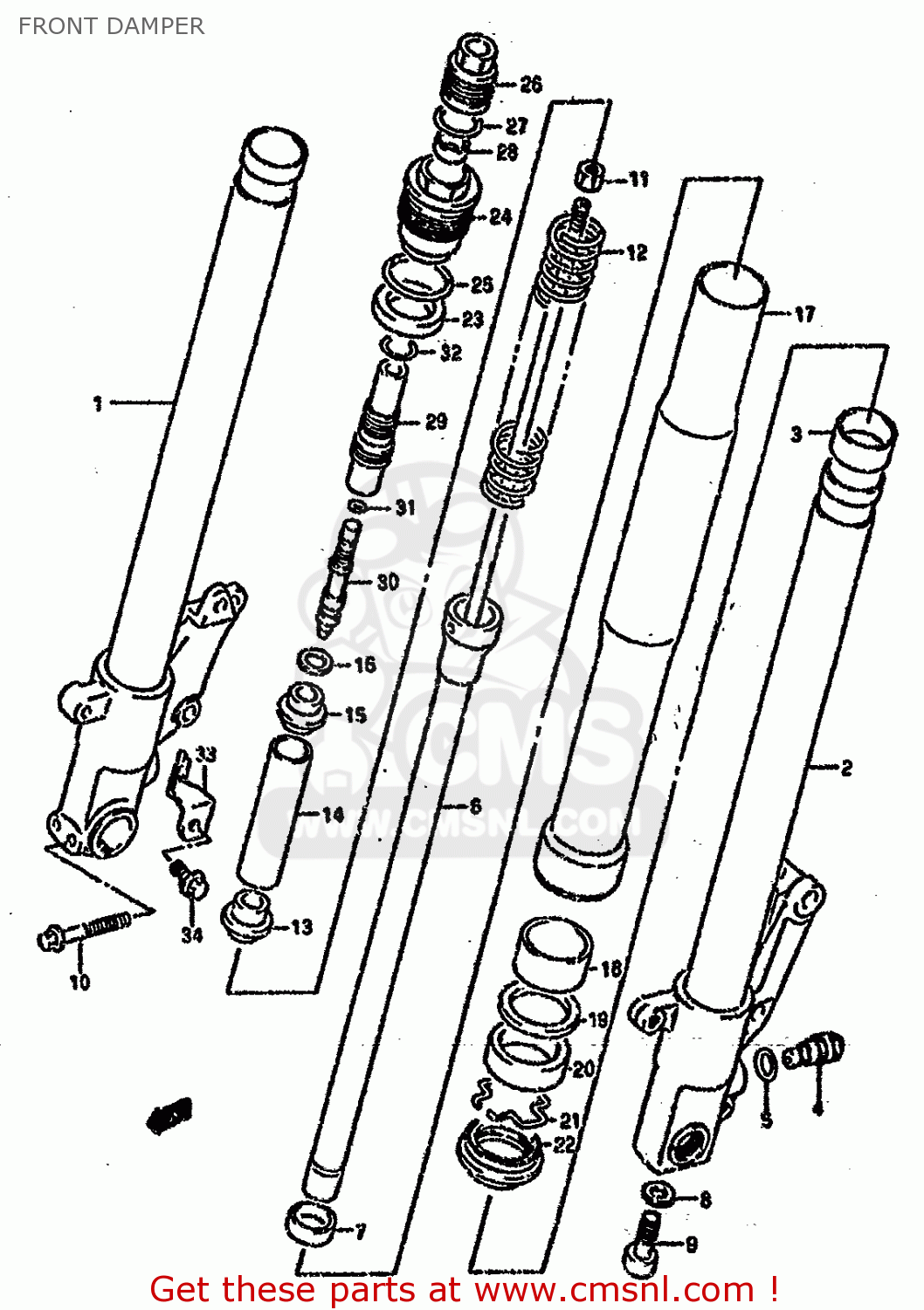

FRONT DAMPER

ref

part #

description

quantity

0

5110317E20
ref: 0

DAMPER ASSY,FR FORK,R

€ 1,072.00

0

5110417E20
ref: 0

DAMPER ASSY,FR FORK,L

€ 1,072.00

1

5111017E20
ref: 1

TUBE,INNER,R

€ 533.50

2

5112017E20
ref: 2

TUBE,INNER,L

€ 538.00

3

5112117C00
ref: 3

BUSH,SLIDE

€ 20.50

4

5183007D00
ref: 4

PIECE,ADJUSTER

€ 71.00

5

0928014003
ref: 5

O-RING (D:2.4 ID:13.8)

€ 3.50

6

5211017E20
ref: 6

DAMPER,FRONT

€ 528.50

7

5181517D00
ref: 7

PLATE,CENTERING

€ 9.50

8

0916110009
ref: 8

WASHER(10X15X1.5)

€ 2.00

9

5114717C00
ref: 9

BOLT

€ 21.00

10

0155008457
ref: 10

BOLT

€ 4.00

11

5182717C00
ref: 11

NUT

€ 10.50

12

5117117E20
ref: 12

SPRING,MAIN

€ 92.00

13

5117217E00
ref: 13

JOINT,SPRING

€ 25.00

14

5117617E00
ref: 14

SPACER,SPRING

€ 13.50

15

5117522D00
ref: 15

GUIDE,SPRING UPR

€ 15.00

16

5117234370
ref: 16

GUIDE,SPRING

€ 3.50

17

5113117E20
ref: 17

TUBE,OUTER

€ 512.50

18

5115217E20
ref: 18

BUSH,GUIDE

€ 21.00

19

5116817C00
ref: 19

SPACER,SEAL

€ 5.00

20

5115314D00
ref: 20

SEAL,OIL

€ 20.50

21

5155638B00
ref: 21

CIRCLIP,FORK OIL SEAL

€ 4.50

22

5117329E00
ref: 22

SEAL,DUST

€ 23.00

23

5119317D00
ref: 23

RUBBER,SEAT

€ 13.00

24

5118918D00
ref: 24

BOLT,FORK

€ 79.00

25

5118708D00
ref: 25

O RING,FORK BOLT

€ 6.00

26

5182817D00
ref: 26

ADJUSTER,SPRING

€ 42.50

27

5119917D00
ref: 27

O RING

€ 6.00

28

5182322030
ref: 28

PLATE,SPRING ADJUSTER

€ 0.00

29

5182917E00
ref: 29

CASE,ADJUSTER

€ 69.50

30

5182117E20
ref: 30

PIECE,ADJUSTER

€ 32.50

31

0928003002
ref: 31

O RING(D:1.9,ID:3.8)

€ 2.00

32

5183717D00
ref: 32

RING,STOPPER

€ 6.00

33-1

5159017D10
ref: 33-1

PLATE,FRONT FENDER,LEFT

€ 10.00

33-2

5158017D10
ref: 33-2

PLATE,FRONT FENDER,RIGHT

€ 11.50

34

0155008127
ref: 34

BOLT

€ 3.50

all assemblies
