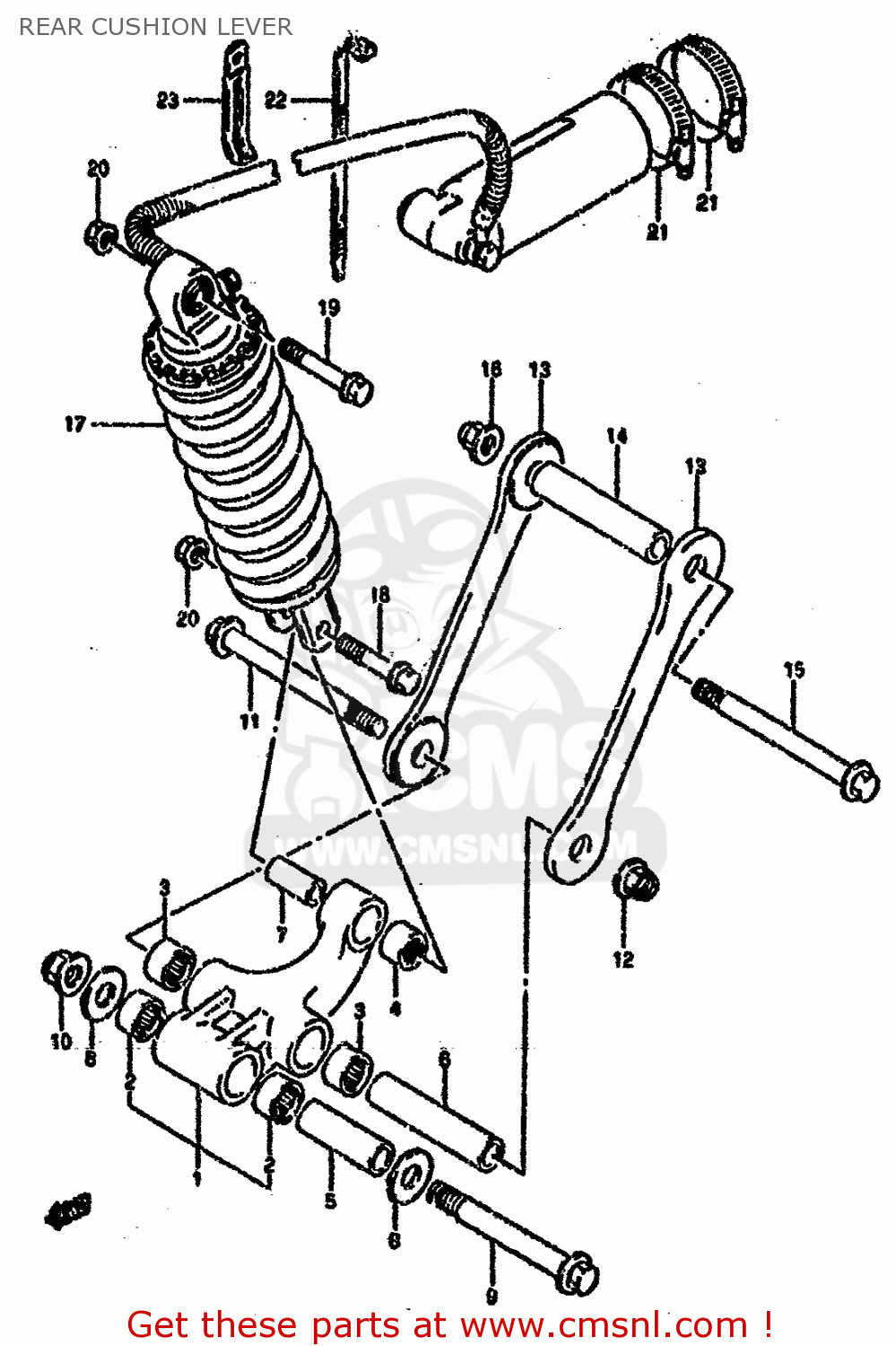

REAR CUSHION LEVER

ref

part #

description

quantity

1

6260017811
ref: 1

LEVER SET,REAR CUSHION

€ 292.00

2

0926320071
ref: 2

BEARING(20X27X23.5)

€ 21.50

3

0926317039
ref: 3

BEARING(17X24X20)

€ 18.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

5

6231717C00
ref: 5

SPACER,RR CUSHION LEVER

€ 26.00

6

0918012122
ref: 6

SPACER(12X17X85)

€ 15.00

7

6268440A10
ref: 7

SPACER,RR CUSHION LEVER

€ 11.50

8

0821114323
ref: 8

WASHER

€ 3.50

9

6262117C00
ref: 9

SHAFT,RR CUSHION LEVER FR

€ 9.50

10

0831931148
ref: 10

NUT

€ 9.00

11

0910312041
ref: 11

BOLT(12X118)

€ 11.50

12

0831931128
ref: 12

NUT 12MM

€ 4.00

13

6264017E10
ref: 13

ROD,REAR CUSHION LEVER

€ 25.00

14

0918012122
ref: 14

SPACER(12X17X85)

€ 15.00

15

0910312041
ref: 15

BOLT(12X118)

€ 11.50

16

0831931128
ref: 16

NUT 12MM

€ 4.00

17

6210017E30
ref: 17

ABSORBER ASSEMBLY,REAR SHOCK

€ 1,774.50

18

0910310101
ref: 18

BOLT(10X54)

€ 3.00

19

0910310032
ref: 19

BOLT(10X75)

€ 6.50

20

0831931107
ref: 20

NUT

€ 3.00

21

0940260502
ref: 21

CLAMP

€ 8.50

22

0940718403
ref: 22

CLAMP L:165

€ 2.50

23

0940408402
ref: 23

CLAMP

€ 3.50
