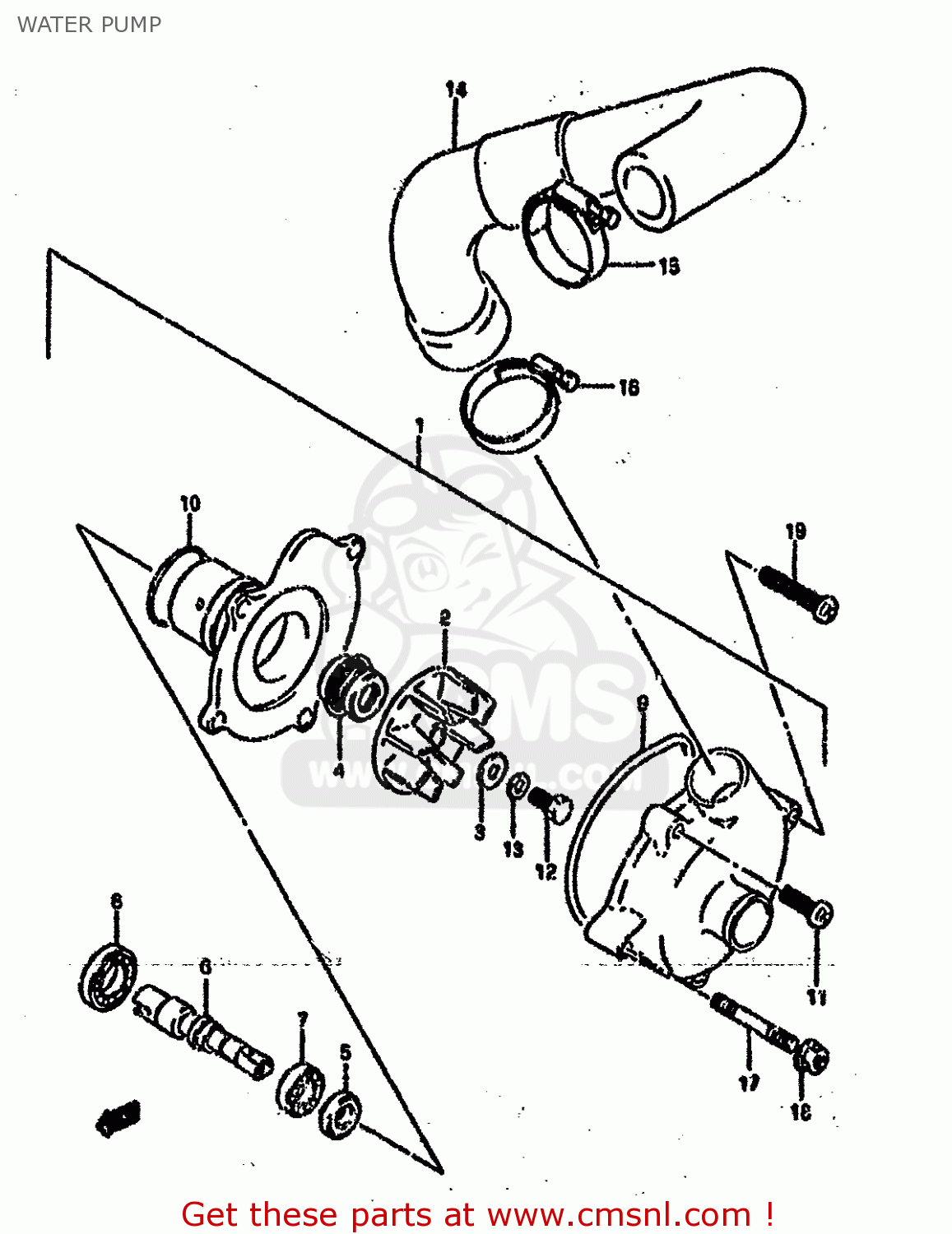

WATER PUMP

ref

part #

description

quantity

1

1740017E01
ref: 1

PUMP ASSY,WATER

€ 385.50

2

1749117E00
ref: 2

IMPELLER

€ 15.00

3

0916806025
ref: 3

GASKET(6X15X2.2) (NAS)

€ 3.00

4

1747046A00
ref: 4

SEAL,MECHANICAL

€ 21.50

5

1746138A00
ref: 5

OILSEAL

€ 4.50

6

1751117E01
ref: 6

SHAFT

€ 109.50

7

0926210014
ref: 7

BEARING(10X26X8)

€ 13.00

8

0926212001
ref: 8

BEARING(12X28X8)

€ 15.00

9

1741833400
ref: 9

O RING

€ 4.00

10

1743533400
ref: 10

O RING,WATER PUMP HOLDER

€ 13.00

11

0211206163
ref: 11

SCREW 6X16

€ 2.00

12

0910006099
ref: 12

BOLT(6X13)

€ 2.00

13

0916406006
ref: 13

WASHER

€ 2.50

14

1785417E01
ref: 14

HOSE,WATER PUMP OUTLET

€ 24.50

15

0940230502
ref: 15

CLAMP

€ 11.50

16

0940233502
ref: 16

CLAMP

€ 10.50

17

0910806117
ref: 17

BOLT,STUD

€ 3.00

18

0831610063
ref: 18

NUT

€ 2.50

19

0211206353
ref: 19

SCREW

€ 2.50
