BATTERY

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

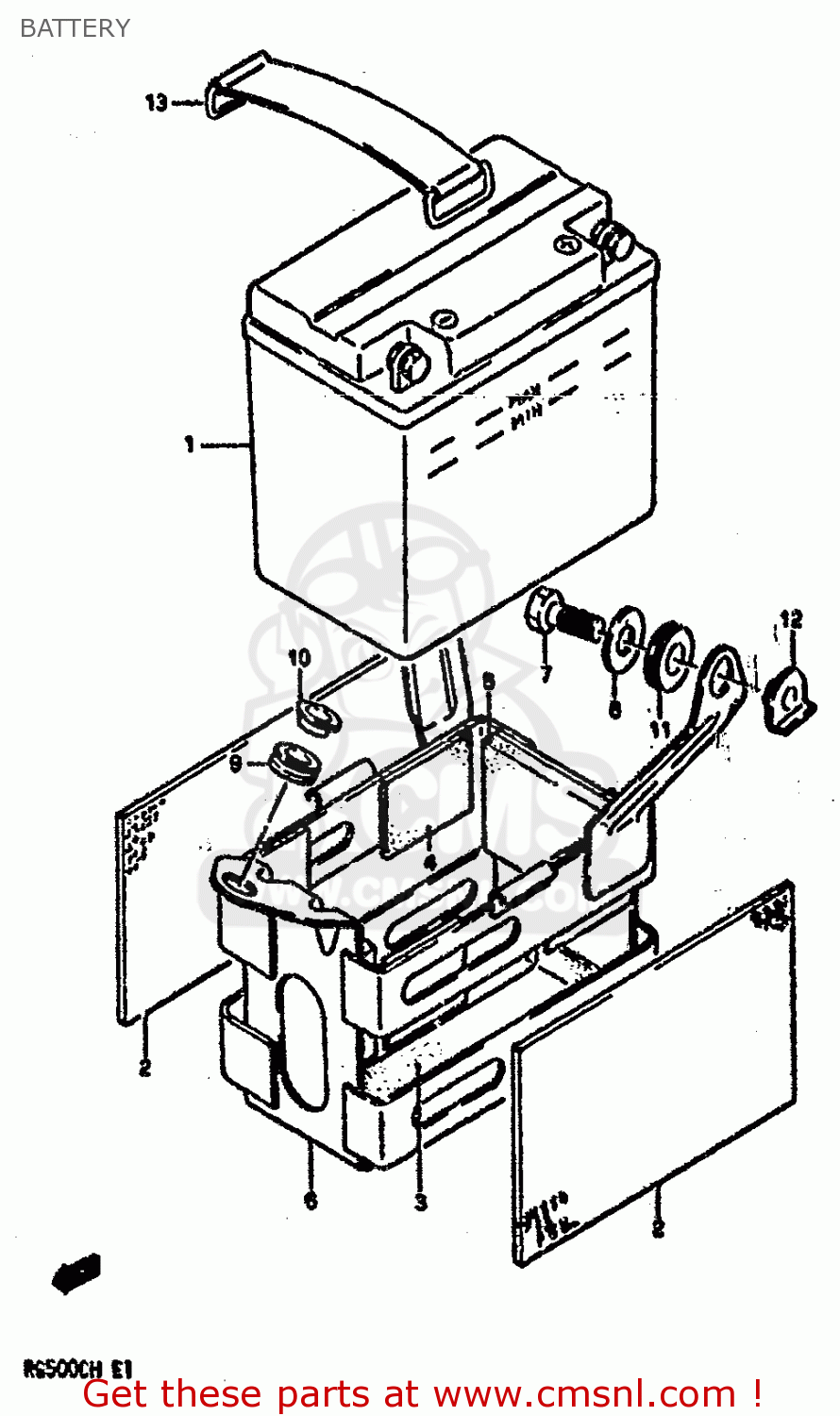

Battery diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3361020A10
ref: 1

BATTERY (YT5L-12,12V4AH)

€ 78.50

3365220A00
ref: 2

PROTECTOR,BATTERY

€ 13.00

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 4
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365241500
ref: 5

PROTECTOR,BATTERY (40X50X6)

€ 2.50

4154020A02
ref: 6

HOLDER,BATTERY

€ 30.00

0110706207
ref: 7

BOLT

€ 2.00

0916006027
ref: 8

WASHER (6.5X20X1.2)

€ 2.00

0932009019
ref: 9

CUSHION

€ 2.00

0916906042
ref: 10

WASHER

€ 1.50

0932008030
ref: 11

CUSHION

€ 3.00

0916906039
ref: 12

WASHER

€ 0.00

0946200034
ref: 13

BAND

€ 4.50
