CYLINDER

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

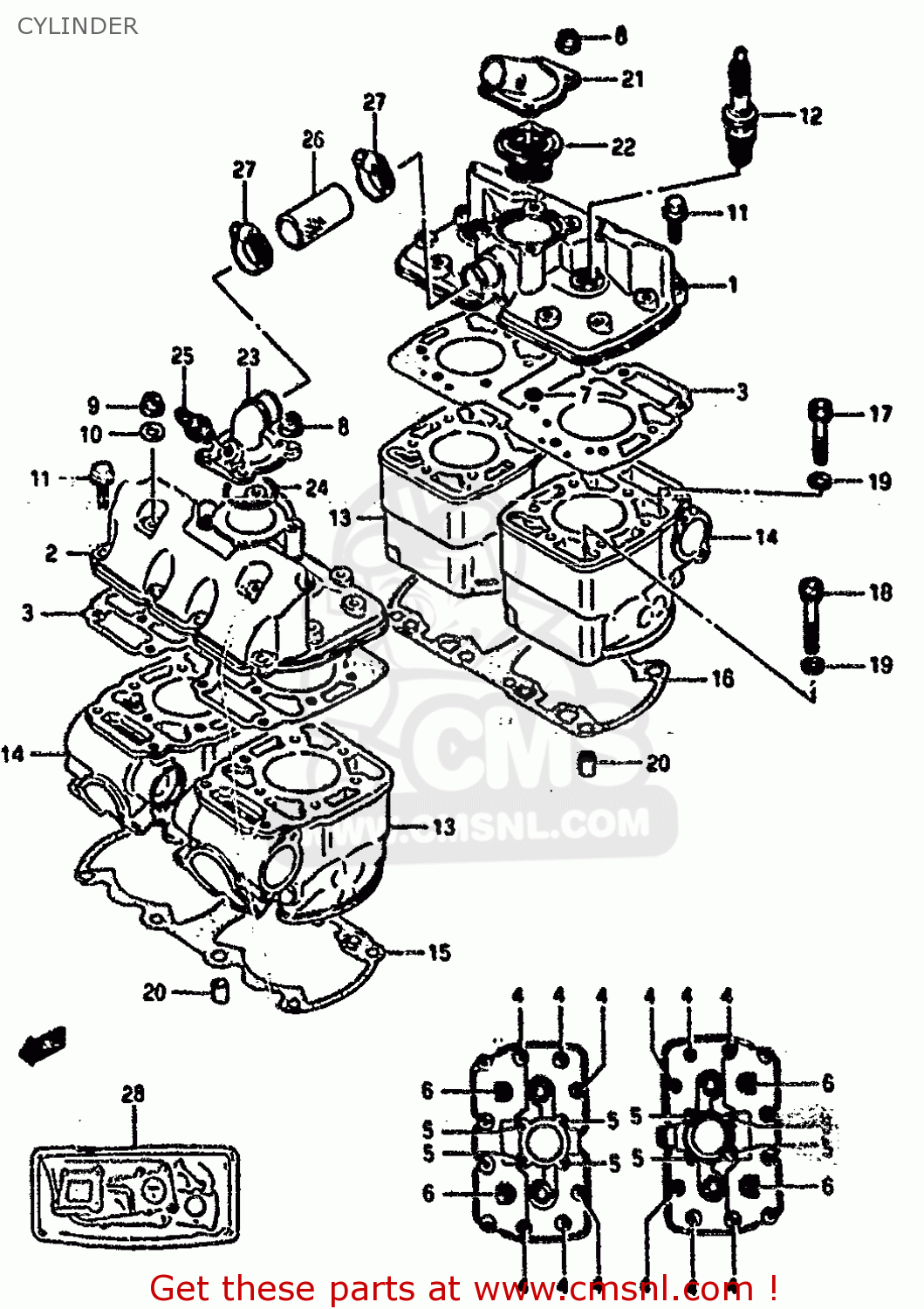

Cylinder diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

CYLINDER RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
CYLINDER RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
CYLINDER RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1111021A04
ref: 1
HEAD,CYLINDER REAR
€ 249.00
2
1111121A14
ref: 2
HEAD,CYLINDER FRONT
€ 356.50
3
1114121A02
ref: 3
GASKET,CYLINDER HEAD (NAS)
1114121A02
€ 44.50
4
0910808190
ref: 4
STUD BOLT (L:36)
€ 2.00
5
0142108705
ref: 5
STUD BOLT
€ 2.50
6
0910808191
ref: 6
STUD BOLT (L:49)
€ 3.00
7
0928008012
ref: 7
O RING(D:1.9,ID:7.8)
0928008012
€ 4.00
8
0831616085
ref: 8
NUT 8MM
0831616085
€ 3.00
9
0831321085
ref: 9
NUT ,8MM
€ 2.50
10
0916008021
ref: 10
WASHER (8.2X24X1.6)
0916008021
€ 2.00
11
0151706205
ref: 11
BOLT
€ 2.50
12-1
0948200351
ref: 12-1
SPARK PLUG B9ES
0948200351
€ 2.50
12-2
0948200349
ref: 12-2
E2,E4,E6,E15,E16,E17
PLUG,SPARK(BR9ES)
0948200349
€ 2.50
13
1121021A03
ref: 13
CYLINDER NO.1
1121021A03
€ 627.50
14
1122021A03
ref: 14
CYLINDER NO.2
1122021A03
€ 627.50
15
1124120A03
ref: 15
GASKET,CYLINDER FRONT (MCA)
1124120A03
€ 17.00
16
1124220A00
ref: 16
GASKET,CYLINDER REAR (MCA)
1124220A00
€ 16.00
17
0711008406
ref: 17
BOLT
€ 3.00
18
0711008506
ref: 18
BOLT
€ 3.50
19
0916008090
ref: 19
WASHER(8.5X14X1.6)
0916008090
€ 2.50
20
0421111189
ref: 20
PIN
0421111189
€ 2.00
21
1766120A02
ref: 21
COVER,THERMOSTAT
€ 59.50
22
1767020A01
ref: 22
THERMOSTAT,WATER
1767020A01
€ 51.00
23
1787120A03
ref: 23
CONNECTOR,CYLINDER HEAD HOSE
1787120A03
€ 24.00
24
0928044005
ref: 24
O RING(D:2.4,ID:43.2)
0928044005
€ 4.00
25
3485016700
ref: 25
GAUGE, WATER TEMP
3485016700
€ 75.00
26
1785420A02
ref: 26
HOSE,CYLINDER HEAD JOINT
€ 17.50
27
0940225501
ref: 27
CLAMP
0940225501
€ 8.50
28
1140021820
ref: 28
OPT
GASKET SET (MCA)
1140021820
€ 300.00
