REAR FENDER

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

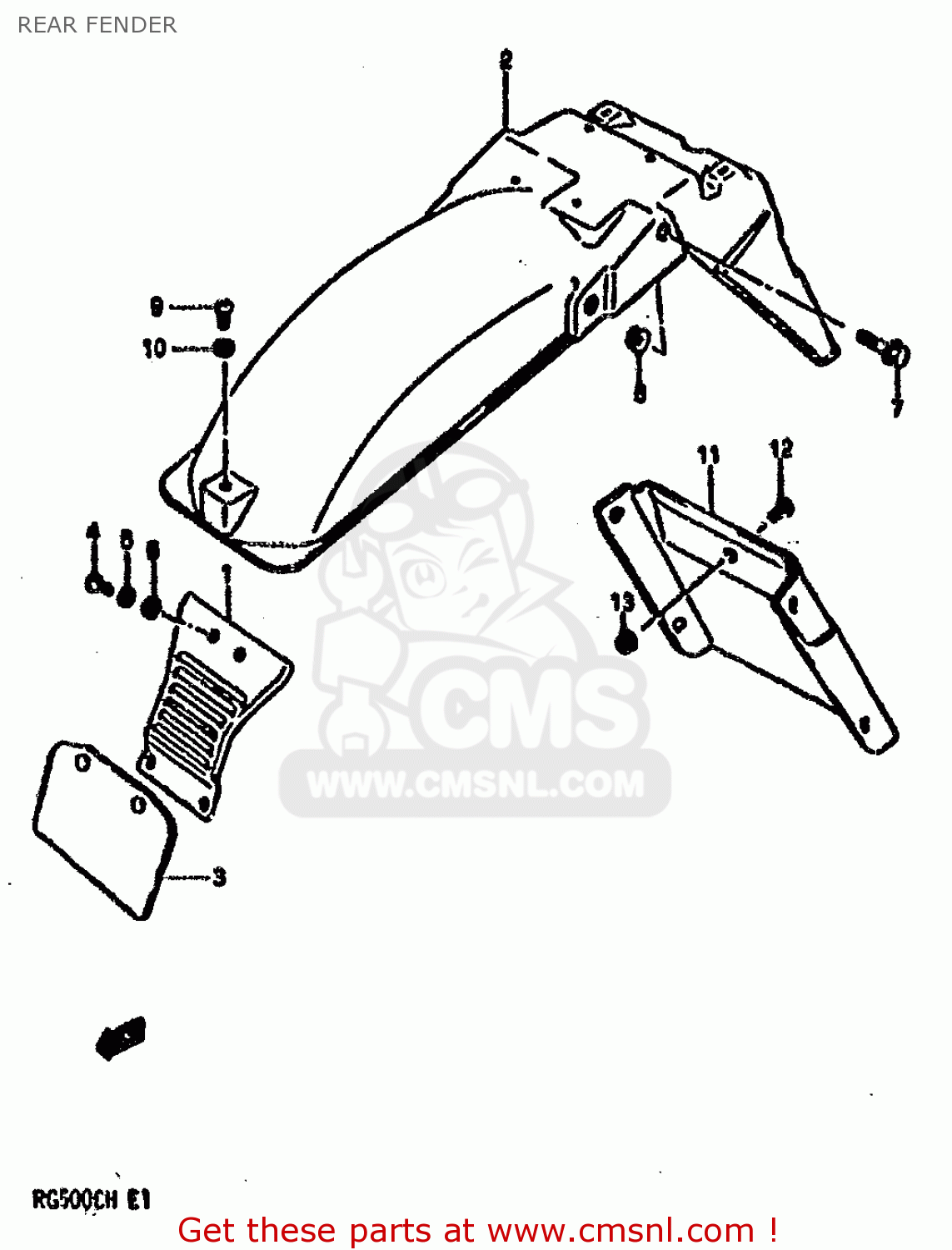

Rear fender diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

6311220A00
ref: 1

FENDER,REAR FRONT

€ 10.00

2-1

6311020A01
ref: 2-1

FENDER,REAR

€ 88.00

2-2

6311020A10
ref: 2-2
E15,E16,E17,E22

FENDER,REAR

€ 88.00

6341120A00
ref: 3

GUARD,REAR FENDER MUD

€ 13.50

0214206085
ref: 4

SCREW

€ 1.50

0832121064
ref: 5

WASHER,LOCK

€ 2.00

0832221064
ref: 6

WASHER

€ 2.00

0151708405
ref: 7

BOLT 8X40

€ 3.50

0831931087
ref: 8

NUT

€ 2.50

0214206167
ref: 9

SCREW

€ 2.00

0916006007
ref: 10

WASHER

€ 2.00

11-1

6333121A00
ref: 11-1
E16,E17,E22

EXTENSION,REAR FENDER

€ 0.00

11-2

6333121A10
ref: 11-2
E15

EXTENSION,REAR FENDER

€ 0.00

0214205124
ref: 12

SCREW, FRONT & REAR

€ 1.50

0831931055
ref: 13

NUT

€ 3.00
