COWLING (MODEL H)

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

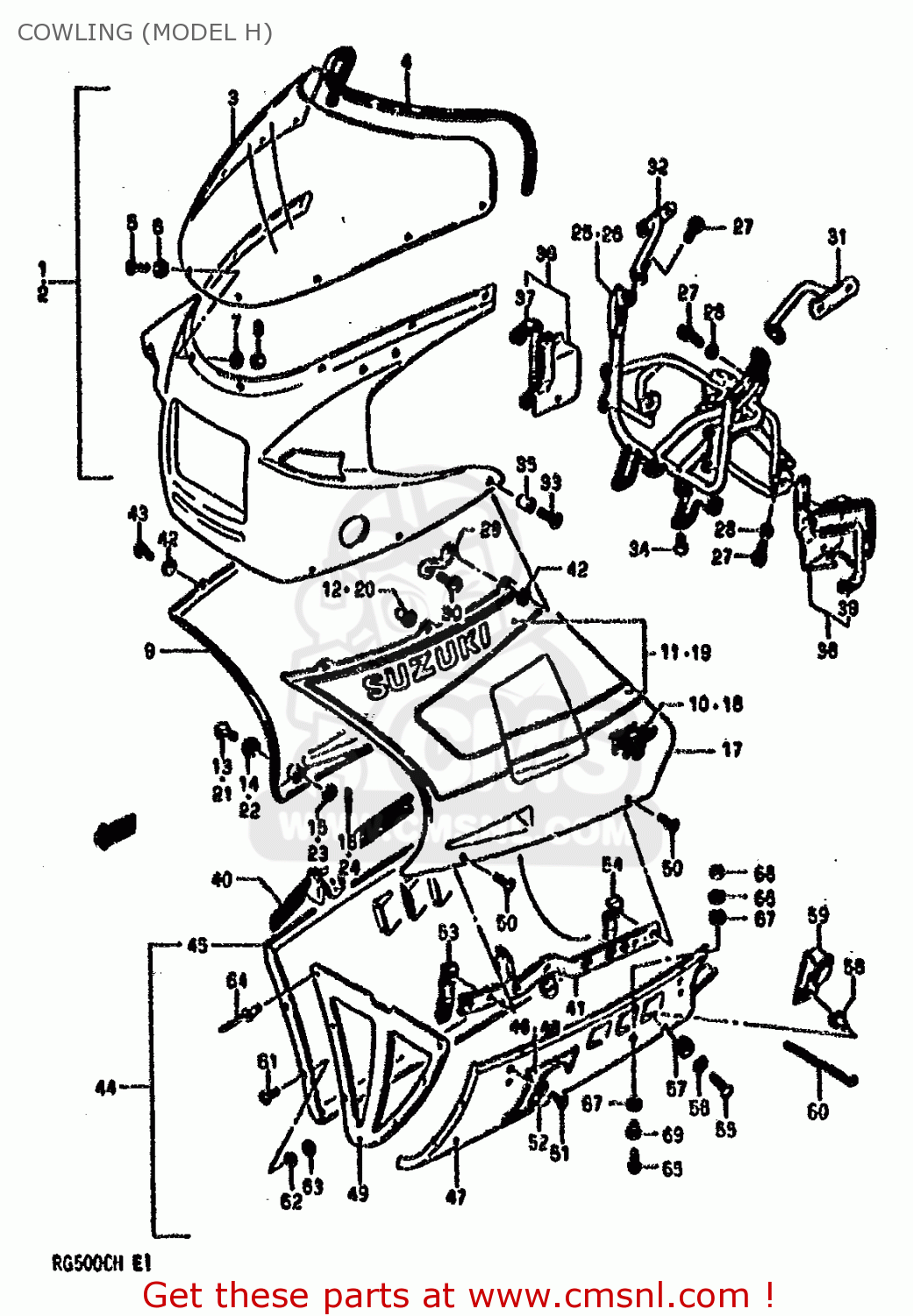

Cowling (model h) diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

COWLING (MODEL H) RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
COWLING (MODEL H) RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
COWLING (MODEL H) RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
9440020A00019
ref: 1-1
FOR 85K
COWLING, BODY
€ 645.50
1-2
9440020A1033N
ref: 1-2
FOR 9EG
COWLING ASSY (BLUE)
€ 645.50
2-1
9440021A00019
ref: 2-1
E2,E15,E16,E21,E22,E
COWLING ASSY (BLACK)
€ 575.50
2-2
9440021A1033N
ref: 2-2
E2,E15,E16,E21,E22,E
COWLING ASSY (BLUE)
€ 575.50
2-3
9440021A20019
ref: 2-3
E17,FOR 85K
COWLING ASSY (BLACK)
€ 0.00
2-4
9440021A3033N
ref: 2-4
E17,FOR 9EG
COWLING ASSY (BLUE)
€ 0.00
3
9461120A00
ref: 3
WINDOW,COWLING
€ 371.00
4-1
9463144110
ref: 4-1
L:1920-670
MOLD,COWLING
9463144110
€ 18.00
4-2
9463120A10
ref: 4-2
E17
MOLDING
€ 14.00
5
0913905024
ref: 5
SCREW(5X14)
0913905024
€ 2.50
6
0932005008
ref: 6
CUSHION
0932005008
€ 5.00
7
0832221055
ref: 7
WASHER,5MM
0832221055
€ 2.50
8
0831921055
ref: 8
NUT 8MM
0831921055
€ 1.50
9-1
9443021A4085K
ref: 9-1
FOR 019
COWLING,SIDE RH (BLACK/RED)
€ 248.00
9-2
9443021A409EG
ref: 9-2
FOR 33N
COWLING,SIDE RH (BLUE/BLUE)
€ 248.00
10-1
6868120A1097M
ref: 10-1
FOR 85K
EMBLEM
€ 6.00
10-2
6868120A109ET
ref: 10-2
FOR 9EG
EMBLEM
€ 6.00
11-1
6868021A1089R
ref: 11-1
FOR 85K
TAPE SET,RH
€ 100.50
11-2
6868021A109ES
ref: 11-2
FOR 9EG
TAPE SET,RH
€ 100.50
12
9443416710
ref: 12
NUT,COWLING COVER
9443416710
€ 4.50
13
9449120A00
ref: 13
HEAD,COWLING FASTENER
9449120A00
€ 5.00
14
9449420A01
ref: 14
WASHER,COWLING FASTENER
9449420A01
€ 4.00
15
9449520A00
ref: 15
E-RING
9449520A00
€ 1.50
16
0920502014
ref: 16
PIN
0920502014
€ 1.50
17-1
9444021A4085K
ref: 17-1
FOR 019
COWLING,SIDE LH (BLACK/RED)
€ 248.00
17-2
9444021A409EG
ref: 17-2
FOR 33N
COWLING,SIDE LH (BLUE/BLUE)
€ 303.50
18-1
6868120A1097M
ref: 18-1
FOR 85K
EMBLEM
€ 6.00
18-2
6868120A109ET
ref: 18-2
FOR 9EG
EMBLEM
€ 6.00
19-1
6869021A1089R
ref: 19-1
FOR 85K
TAPE SET,LH
€ 98.50
19-2
6869021A109ES
ref: 19-2
FOR 9EG
TAPE SET,LH
€ 0.00
20
9443416710
ref: 20
NUT,COWLING COVER
9443416710
€ 4.50
21
9449120A00
ref: 21
HEAD,COWLING FASTENER
9449120A00
€ 5.00
22
9449420A01
ref: 22
WASHER,COWLING FASTENER
9449420A01
€ 4.00
23
9449520A00
ref: 23
E-RING
9449520A00
€ 1.50
24
0920502014
ref: 24
PIN
0920502014
€ 1.50
25
9451020A02
ref: 25
BRACE,COWLING
€ 110.00
26
9451021A01
ref: 26
E2,E15,E16,E17,E21,E
BRACE,COWLING
€ 131.50
27
0711008165
ref: 27
BOLT
€ 3.00
28
0832121084
ref: 28
WASHER,LOCK,8.
0832121084
€ 2.50
29
9452020A11
ref: 29
BRACKET,COWLING UPR
9452020A11
€ 37.00
30
0711008168
ref: 30
BOLT
€ 3.00
31
9453020A00
ref: 31
BRACKET,RR VIEW MIRRORR,L
9453020A00
€ 23.00
32
9454020A00
ref: 32
BRACKET,RR VIEW MIRRORR,R
9454020A00
€ 18.00
33
0913906029
ref: 33
SCREW(6X25)
0913906029
€ 5.00
34
0913906030
ref: 34
SCREW(6X16)
0913906030
€ 3.50
35
0918006158
ref: 35
SPACER
0918006158
€ 4.50
36
5189120A00
ref: 36
COVER,COUPLER RH
5189120A00
€ 12.50
37
5189320A00
ref: 37
MOLDING
€ 4.00
38
5189220A00
ref: 38
COVER,COUPLER LH
€ 12.00
39
5189320A00
ref: 39
MOLDING
€ 4.00
40
9441020A00
ref: 40
BRACKET,COWLING LWR,R
9441020A00
€ 15.50
41
9442020A00
ref: 41
BRACKET,COWLING LWR,L
9442020A00
€ 16.00
42
0916107006
ref: 42
WASHER(7X14X1.2)
0916107006
€ 3.00
43
0913906042
ref: 43
SCREW(6X30)
0913906042
€ 7.50
44-1
9447021A30019
ref: 44-1
FOR 019
COWLING,UNDER (BLACK)
€ 522.00
44-2
9447021A3033N
ref: 44-2
FOR 33N
COWLING,UNDER (BLUE)
€ 782.50
45-1
9470020850019
ref: 45-1
FOR 019
COWLING,UNDER RH
€ 408.00
45-2
947002085033N
ref: 45-2
FOR 33N
COWLING,UNDER RH
€ 408.00
46
6869136A0073H
ref: 46
EMBLEM
€ 8.50
47-1
9480020850019
ref: 47-1
FOR 019
COWLING,UNDER LH
€ 301.00
47-2
948002085033N
ref: 47-2
FOR 33N
COWLING,UNDER LH
€ 0.00
48
6869136A0073H
ref: 48
EMBLEM
€ 8.50
49-1
9449820A00019
ref: 49-1
FOR 019
COVER,CENTER
€ 175.00
49-2
9449820A0033N
ref: 49-2
FOR 33N
COVER,CENTER
€ 175.00
50
0913906027
ref: 50
SCREW(6X12)
0913906027
€ 3.00
51
9449920A00
ref: 51
SCREW
9449920A00
€ 2.00
52
9448920A00
ref: 52
WASHER
9448920A00
€ 7.50
53
9448420A01
ref: 53
BRACKET
9448420A01
€ 23.50
54
9448520A01
ref: 54
BRACKET
9448520A01
€ 24.50
55
0214206357
ref: 55
SCREW
0214206357
€ 2.00
56
0916006012
ref: 56
WASHER(6,5X22X1.6)
€ 2.00
57
9443326B00
ref: 57
CUSHION
9443326B00
€ 4.00
58
9449320A10
ref: 58
SPACER
9449320A10
€ 7.00
59
9448620A00
ref: 59
BRACKET
9448620A00
€ 43.50
60
9448820A00
ref: 60
CLAMP
€ 4.50
61
9449920A00
ref: 61
SCREW
9449920A00
€ 2.00
62
9448920A00
ref: 62
WASHER
9448920A00
€ 7.50
63
0831022048
ref: 63
NUT 4MM
€ 2.00
64
9448720A00
ref: 64
RIVET
9448720A00
€ 6.00
65
0214205207
ref: 65
SCREW
0214205207
€ 2.00
66
9446920A00
ref: 66
WASHER
9446920A00
€ 2.00
67
9442732B00
ref: 67
CUSHION,UNDER COWLING BOTTOM
€ 3.00
68
0831921058
ref: 68
NUT
€ 1.50
69
9449220A00
ref: 69
SPACER
€ 4.50
