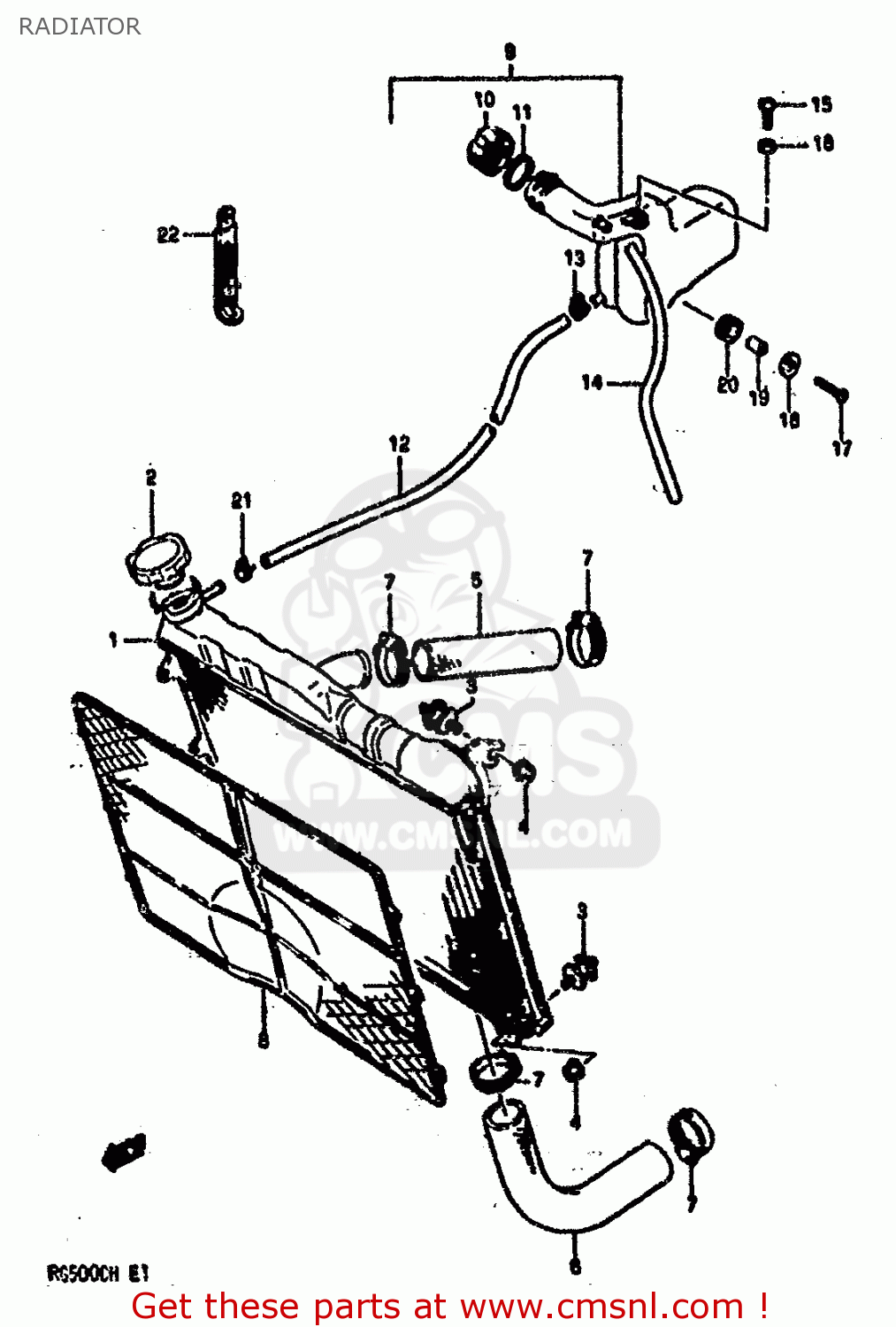

RADIATOR

ref

part #

description

quantity

1

1771020A00
ref: 1

RADIATOR

€ 878.50

2

1773001A01
ref: 2

CAP,RADIATOR

€ 33.50

3

1778833402
ref: 3

BOLT,RADIATOR CUSHION

€ 12.00

4

0831616064
ref: 4

NUT 6MM

€ 2.50

5

1785120A00
ref: 5

HOSE,RADIATOR INLET

€ 21.50

6

1785220A00
ref: 6

HOSE,RADIATOR OUTLET

€ 22.00

7-1

0940233501
ref: 7-1
MODEL G

CLAMP

€ 10.50

7-2

0940233502
ref: 7-2
MODEL H

CLAMP

€ 10.50

8

1799120A00
ref: 8

NET,RADIATOR

€ 23.50

9

1791020A02
ref: 9

TANK ASSY,RESERVOIR

€ 0.00

10

1784513700
ref: 10

CAP,RESERVOIR TANK

€ 11.50

11

1784413700
ref: 11

GASKET,RESERVOIR TANK CAP (NAS)

€ 2.50

12

0934305347
ref: 12

HOSE

€ 19.50

13

0940108407
ref: 13

CLIP

€ 3.00

14

1784816701
ref: 14

HOSE, INLET

€ 4.00

15

0214206164
ref: 15

SCREW

€ 2.50

16

0916006039
ref: 16

WASHER (6.5X18X1.6)

€ 2.00

17

0211206255
ref: 17

SCREW

€ 1.50

18

0916006027
ref: 18

WASHER (6.5X20X1.2)

€ 2.00

19

0918006046
ref: 19

SPACER (6.5X10.5X13.5)

€ 3.50

20

0932010008
ref: 20

CUSHION

€ 2.50

21

0940106407
ref: 21

CLIP

€ 0.00

22

0940406403
ref: 22

CLAMP

€ 2.50

all assemblies
