KICK STARTER

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

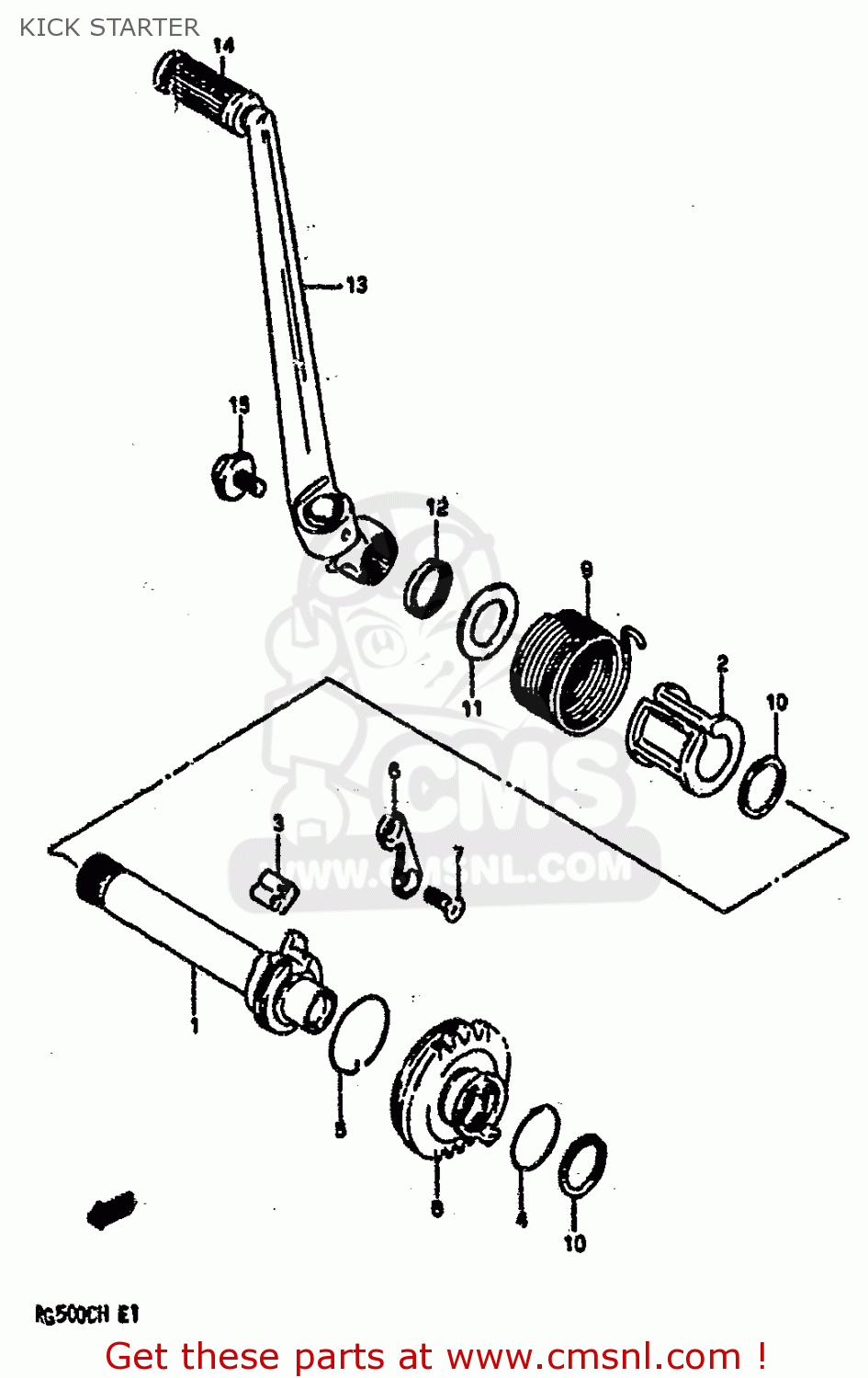

Kick starter diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

2621120A01
ref: 1

SHAFT,KICK STARTER

€ 117.50

2622120A00
ref: 2

GUIDE,SPRING

€ 5.50

2623101400
ref: 3

PAWL,KICK STARTER

€ 14.50

0938030005
ref: 4

CLIP

€ 1.50

2623401400
ref: 5

SPRING

€ 2.00

2623220A00
ref: 6

STOPPER,KICK STARTER

€ 6.00

0212206167
ref: 7

SCREW

€ 2.00

2624020A02
ref: 8

GEAR,KICK STARTER DRIVE (NT:21)

€ 93.50

0944845009
ref: 9

SPRING

€ 6.00

0821120281
ref: 10

WASHER,THRUST

€ 2.50

0821120263
ref: 11

WASHER

€ 2.50

0928320031
ref: 12

SEAL,OIL(20X27X5)

€ 5.00

2630020A02
ref: 13

LEVER ASSY,KICK STARTER

€ 72.50

2635201000
ref: 14

RUBBER,KICK STARTER PEDAL

€ 3.50

0910308069
ref: 15

BOLT(8X14)

€ 7.00
