FRONT BRAKE HOSE

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

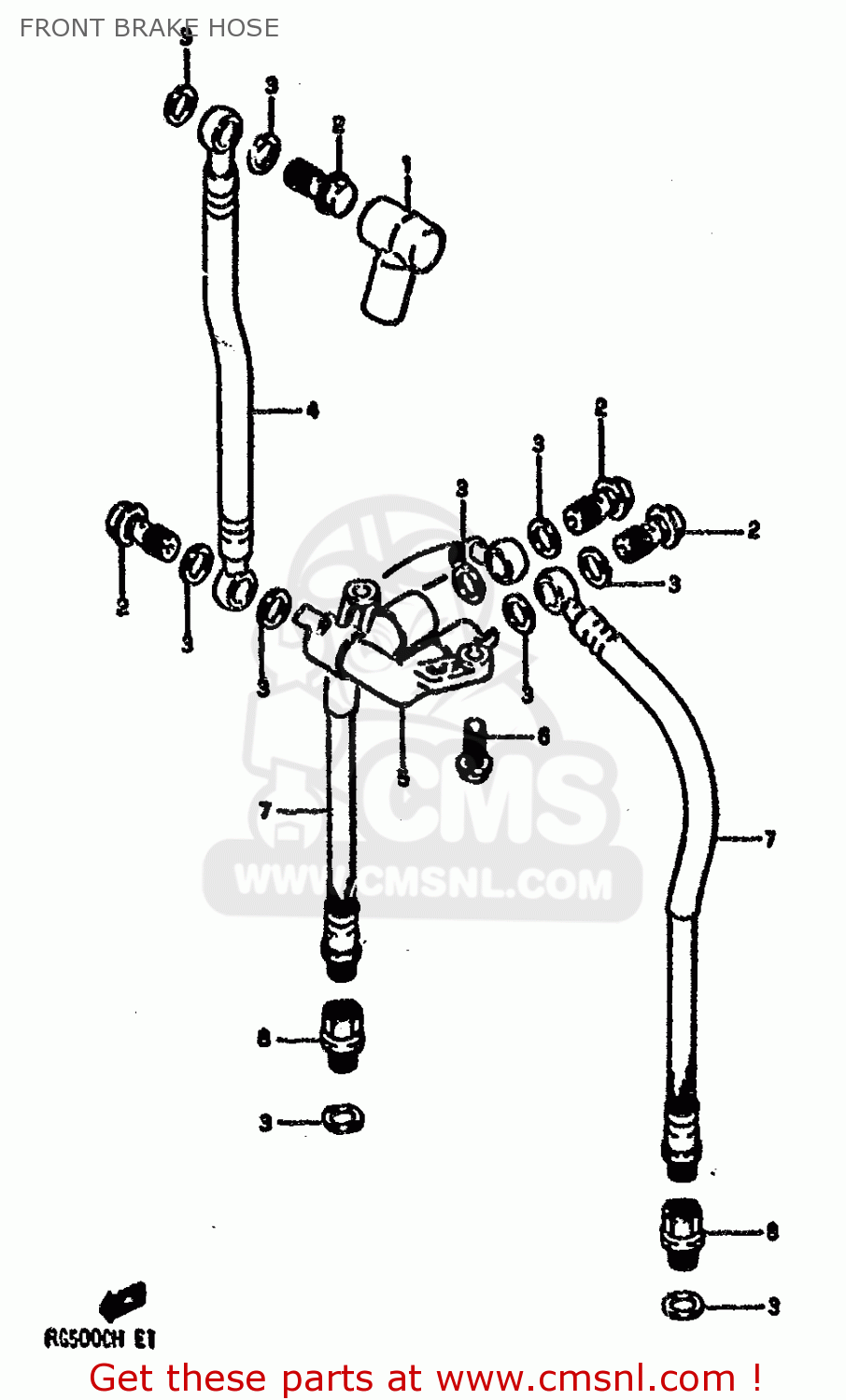

Front brake hose diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

FRONT BRAKE HOSE RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

FRONT BRAKE HOSE RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

5971149300
ref: 1

BOOT

€ 14.50

2

0936010017
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5948020A01
ref: 4

HOSE,FRONT BRAKE NO.1

€ 41.00

5

5949120A00
ref: 5

BRAKE HOSE JOIN

€ 27.00

6

0151706208
ref: 6

BOLT,REAR

€ 2.50

7

5924020A01
ref: 7

JOSE,FRONT BRAKE NO.2

€ 64.50

8

5929043500
ref: 8

ADAPTER,BRAKE HOSE

€ 34.50
