CRANKCASE

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

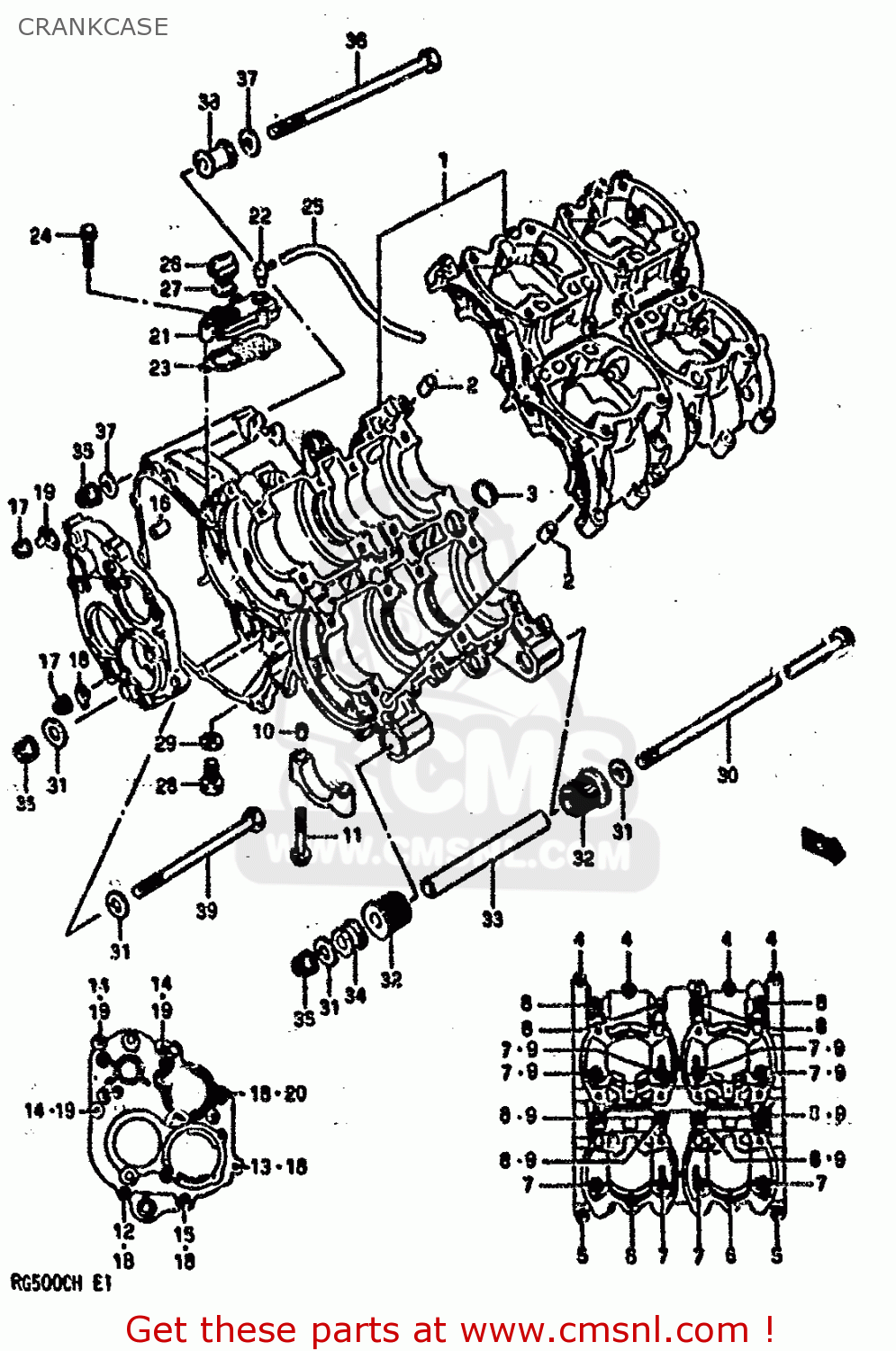

Crankcase diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

CRANKCASE RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
CRANKCASE RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
CRANKCASE RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1130021820
ref: 1-1
TO 11300-21822 WITH
CRANKCASE SET
€ 1,526.00
1-2
1130021822
ref: 1-2
CRANKCASE SET
€ 1,526.00
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0928024007
ref: 3
O RING(D:2.3,ID:24.4)
0928024007
€ 2.00
4
0151706354
ref: 4
BOLT 6X35
€ 2.50
5
0151706455
ref: 5
BOLT (6X45)
€ 2.50
6-1
0711006405
ref: 6-1
FOR 11300-21820
BOLT
0711006405
€ 3.50
6-2
0154706407
ref: 6-2
FOR 11300-21822
BOLT
0154706407
€ 2.50
7
0711006455
ref: 7
BOLT
€ 2.50
8
0711008505
ref: 8
BOLT
0711008505
€ 3.50
9
0916808016
ref: 9
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
10
0421111189
ref: 10
PIN
0421111189
€ 2.00
11
0712008508
ref: 11
BOLT
€ 3.00
12
0910806083
ref: 12
STUD BOLT (6X18)
€ 2.00
13
0142106258
ref: 13
STUD 6X25
0142106258
€ 2.50
14-1
0142106308
ref: 14-1
FOR 11300-21820
STUD 6X30
€ 2.50
14-2
0142106258
ref: 14-2
FOR 11300-21822
STUD 6X25
0142106258
€ 2.50
15
0910806085
ref: 15
STUD BOLT (6X37)
€ 1.50
16
0920611012
ref: 16
PIN(8.4X11X18)
0920611012
€ 3.00
17
0831921068
ref: 17
NUT 6MM
0831921068
€ 2.00
18
1133220A00
ref: 18
RETAINER,T/M COVER NO.1
1133220A00
€ 2.50
19
1133220A10
ref: 19
RETAINER,T/M COVER NO.2
1133220A10
€ 2.50
20
0110706258
ref: 20
BOLT
€ 2.00
21
1138020840
ref: 21
CAP SET,BREATHER
€ 0.00
22
1691009401
ref: 22
UNION,BREATHER HOSE
1691009401
€ 18.00
23
1148420A00
ref: 23
GASKET,BREATHE
€ 3.00
24
0151405255
ref: 24
BOLT
€ 1.50
25
0934304104
ref: 25
L:600-250
HOSE
0934304104
€ 3.00
26
1197120A00
ref: 26
PLUG,OIL FILLE
1197120A00
€ 7.00
27
0928017003
ref: 27
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
28
0110712208
ref: 28
BOLT
€ 3.00
29
0916812002
ref: 29
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
30
0910010232
ref: 30
BOLT (10X330)
€ 11.50
31
0916010066
ref: 31
WASHER (10.5X24X2.3)
0916010066
€ 2.00
32
0931910042
ref: 32
BUSH
0931910042
€ 16.50
33
0918010098
ref: 33
SPACER (L:142)
€ 9.50
34
1161038400
ref: 34
SPACER,ENGINE MOUNT(L20)
1161038400
€ 9.00
35
0831931105
ref: 35
NUT 10MM
€ 3.00
36
0910310074
ref: 36
BOLT
€ 11.50
37
0832211105
ref: 37
WASHER
€ 2.50
38
1161032410
ref: 38
SPACER,ENGINE MOUNT
€ 12.00
39
0910010246
ref: 39
BOLT 10X170
€ 11.50
