OIL PUMP

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

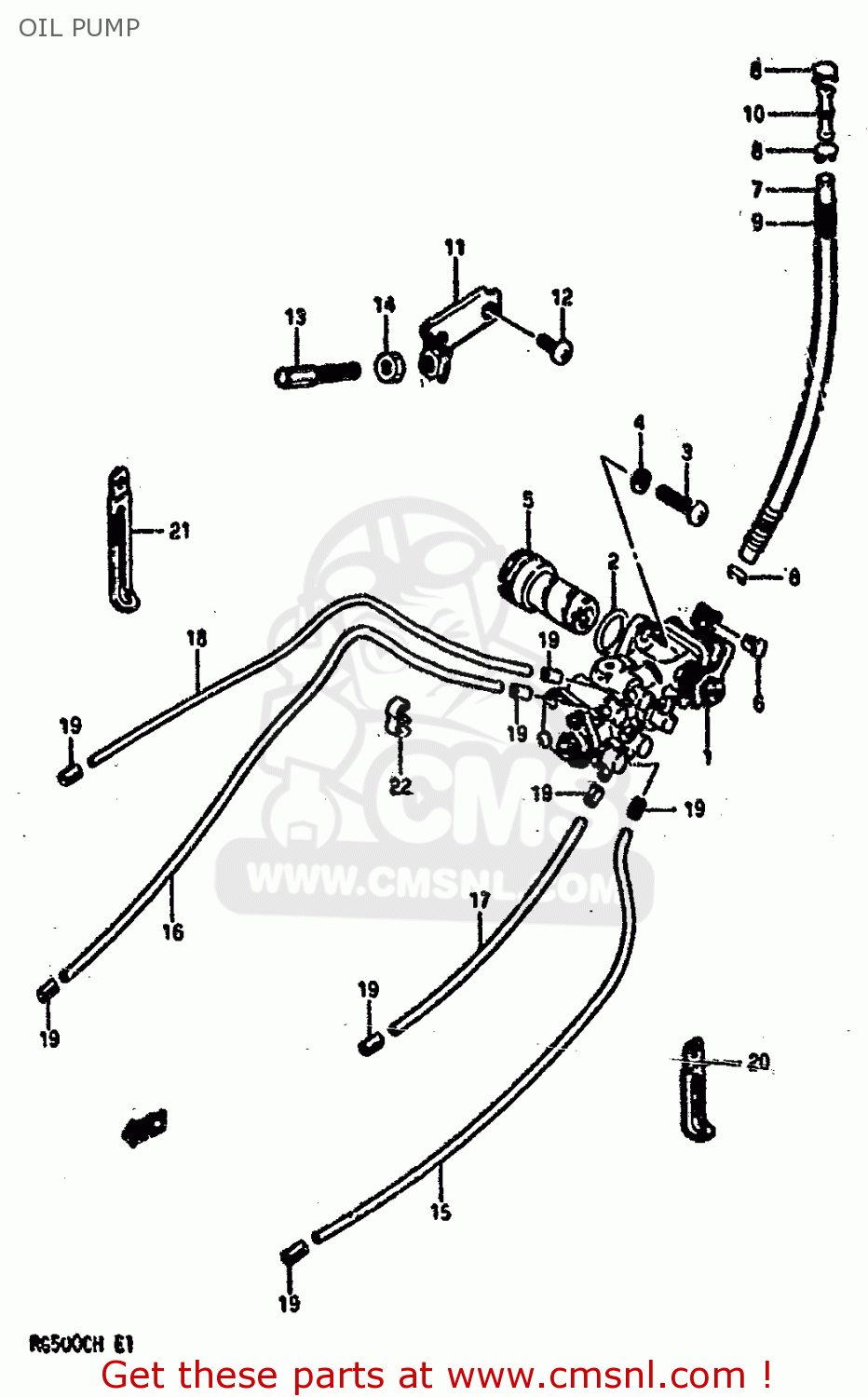

Oil pump diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1610021A00
ref: 1

PUMP ASSY,OIL

€ 233.50

0928020003
ref: 2

O RING(D:1.5,ID:19.5)

€ 2.50

0211206208
ref: 3

SCREW

€ 2.00

0832121067
ref: 4

WASHER,LOCK

€ 2.50

1639120A00
ref: 5

PIECE,OIL PUMP DRIVE

€ 59.00

1629203112
ref: 6

TERMINAL,CABLE

€ 3.50

0934304060
ref: 7
L:550-275

HOSE

€ 14.00

0940108401
ref: 8

CLIP

€ 1.50

0944010029
ref: 9

PROTECTOR

€ 11.50

0936406005
ref: 10

UNION

€ 4.00

1629120A00
ref: 11

BRACKET,OIL PUMP CABLE

€ 8.50

0211206125
ref: 12

SCREW

€ 1.50

0911908014
ref: 13

BOLT

€ 3.50

0831012088
ref: 14

NUT

€ 2.00

0934302009
ref: 15
FL L:600-240

HOSE

€ 12.00

0934302009
ref: 16
FR L:600-370

HOSE

€ 12.00

0934302009
ref: 17
RL L:600-150

HOSE

€ 12.00

0934302009
ref: 18
RR L:600-280

HOSE

€ 12.00

0940104401
ref: 19

CLIP

€ 2.50

0940406403
ref: 20

CLAMP

€ 2.50

0940406405
ref: 21

CLAMP

€ 3.00

0940800066
ref: 22

CLIP

€ 1.50

OIL PUMP

all assemblies
