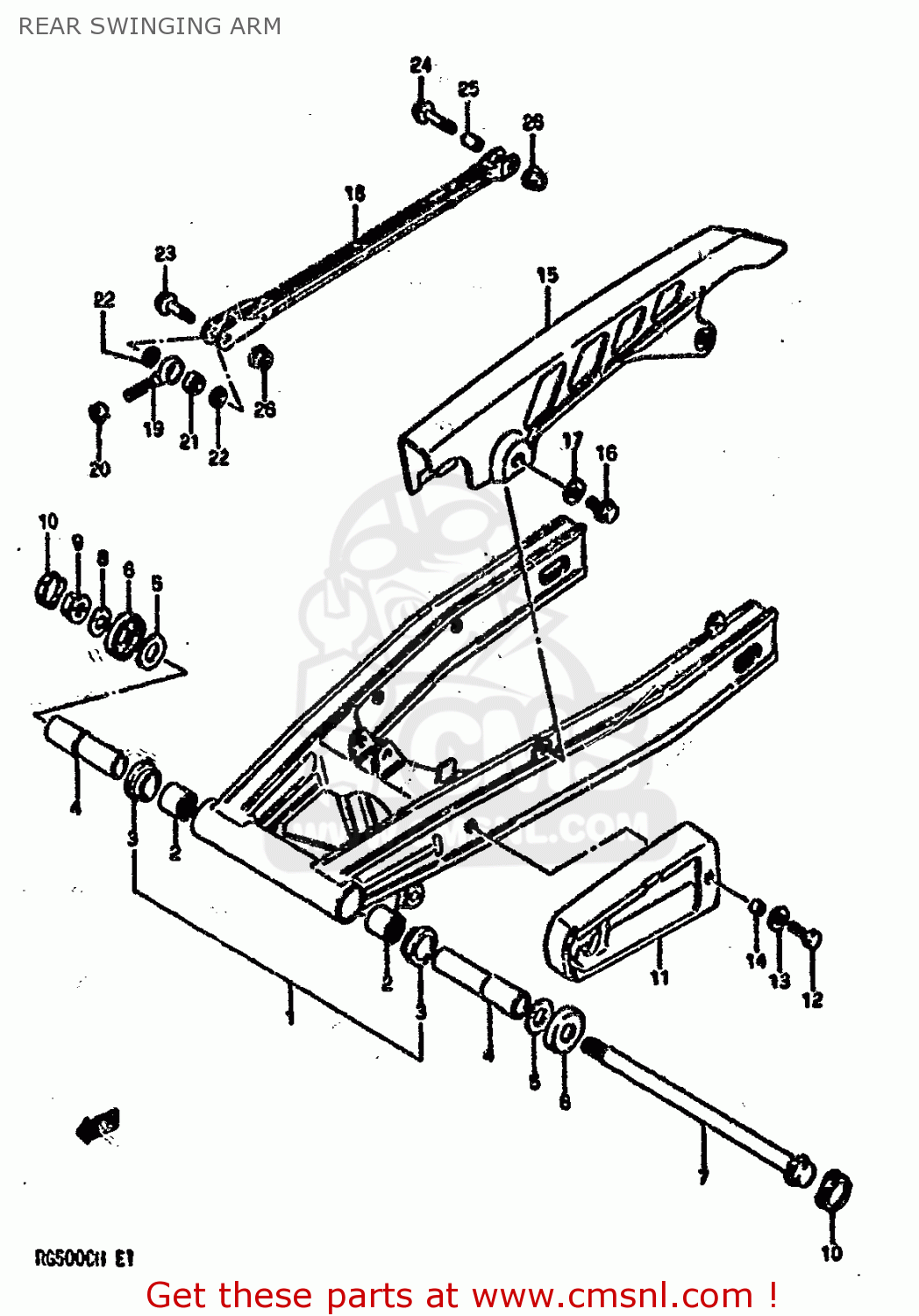

REAR SWINGING ARM

ref

part #

description

quantity

1-1

6100020A00
ref: 1-1
~F.NO.105060

SWINGING ARM ASSY,REAR

€ 785.00

1-2

6100020A01
ref: 1-2
F.NO.105061~

SWINGING ARM ASSY,REAR

€ 785.00

2

0926322017
ref: 2

BEARING(22X29X30)

€ 18.50

3

6126133400
ref: 3
~F.NO.105060

BUSHING,RR SWGARM PIVOT

€ 28.00

4

6125104A00
ref: 4

SPACER,RR SWGARM PIVOT

€ 79.50

5-1

0916014020
ref: 5-1
~F.NO.105060

WASHER(14.2X34X1)

€ 2.50

5-2

0916014042
ref: 5-2
F.NO.105061~

WASHER(14.2X38X1)

€ 5.00

6-1

6126245002
ref: 6-1
~F.NO.105060

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

6-2

6126232B00
ref: 6-2
F.NO.105061~

COVER,RR SWINGING DUST SEAL

€ 7.50

7

6121133402
ref: 7

SHAFT

€ 23.00

8

0916014032
ref: 8

WASHER(14.2X26X1.2)

€ 1.50

9

0915914017
ref: 9

NUT

€ 9.00

10

6122243400
ref: 10

CAP,SWINGINGARM PIVOT

€ 4.00

11-1

6127320A01
ref: 11-1
~F.NO.105060

BUFFER

€ 26.00

11-2

6127320A02
ref: 11-2
F.NO.105061~

BUFFER,CHAIN TOUCH DEFENSE

€ 26.00

12

0110405208
ref: 12

BOLT 5X20

€ 2.50

13

0916005033
ref: 13

WASHER

€ 2.50

14

0918005015
ref: 14

SPACER (5.5X8X4)

€ 3.00

15

6131120A01291
ref: 15

CASE, CHAIN

€ 83.50

16

0151706105
ref: 16

BOLT

€ 2.50

17

0916906026
ref: 17

WASHER

€ 2.00

18

6431020A00
ref: 18

TORQUE LINK,REAR

€ 60.50

19

6431620A02
ref: 19

HOUSING,TORQUE LINK BEARING

€ 29.50

20

0831022107
ref: 20

NUT

€ 2.50

21

0926908002
ref: 21

BEARING(8X18X11)

€ 39.50

22

6433940410
ref: 22

6433940410

23

0910308042
ref: 23

BOLT(8X31)

€ 6.50

24

0910308142
ref: 24

BOLT(8X35)

€ 3.00

25

6433620A00
ref: 25

SPACER,RR TORQUE LINK RR

€ 8.00

26

0831931087
ref: 26

NUT

€ 2.50

all assemblies
