COWLING (MODEL G)

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

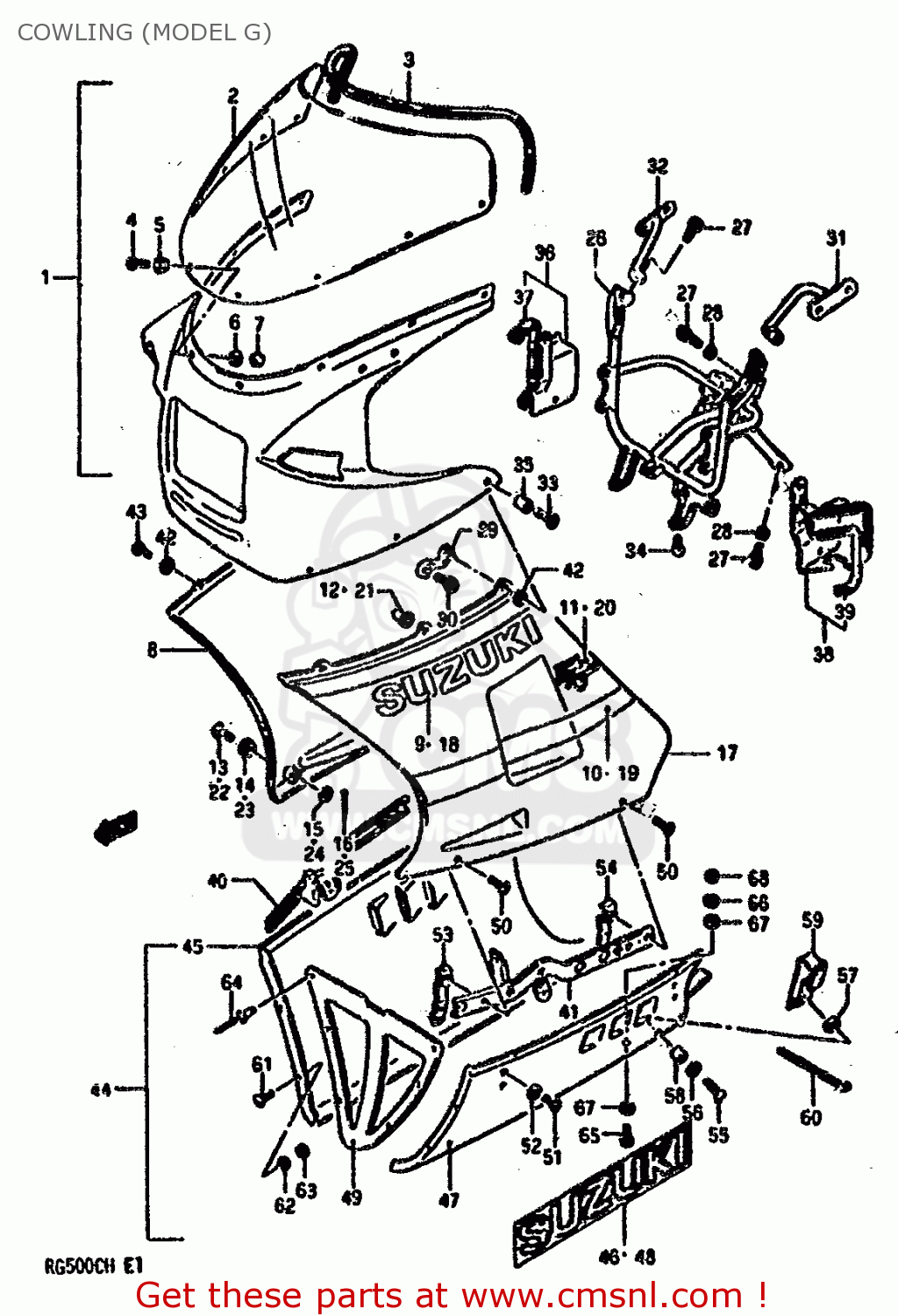

Cowling (model g) diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

COWLING (MODEL G) RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
COWLING (MODEL G) RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
COWLING (MODEL G) RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
9440020A00019
ref: 1-1
FOR 85J
COWLING, BODY
€ 645.50
1-2
9440020A1019F
ref: 1-2
FOR 7GF
COWLING ASSY(BLUE)
9440020A1019F
€ 911.00
2
9461120A00
ref: 2
WINDOW,COWLING
€ 371.00
3
9463120A00
ref: 3
MOLDING
€ 18.00
4
0913905024
ref: 4
SCREW(5X14)
0913905024
€ 2.50
5
0932005008
ref: 5
CUSHION
0932005008
€ 5.00
6
0832221055
ref: 6
WASHER,5MM
0832221055
€ 2.50
7
0831921055
ref: 7
NUT 8MM
0831921055
€ 1.50
8-1
9443020A1085J
ref: 8-1
COWLING,SIDE RH (WHITE/RED)
€ 248.00
8-2
9443020A107GF
ref: 8-2
COWLING,RH
€ 248.00
9-1
6811133200019
ref: 9-1
FOR 85J
EMBLEM
6811133200019
€ 13.00
9-2
681113320007G
ref: 9-2
FOR 7GF
EMBLEM
681113320007G
€ 14.00
10-1
6868020A007UW
ref: 10-1
FOR 85J
TAPE,SET,RH
6868020A007UW
€ 27.50
10-2
6868020A0071A
ref: 10-2
FOR 7GF
TAPE SET, RH
€ 36.50
11
6868120A107TS
ref: 11
EMBLEM,FRAME COVER
6868120A107TS
€ 10.00
12
9443416710
ref: 12
NUT,COWLING COVER
9443416710
€ 4.50
13
9449120A00
ref: 13
HEAD,COWLING FASTENER
9449120A00
€ 5.00
14
9449420A01
ref: 14
WASHER,COWLING FASTENER
9449420A01
€ 4.00
15
9449520A00
ref: 15
E-RING
9449520A00
€ 1.50
16
0920502014
ref: 16
PIN
0920502014
€ 1.50
17-1
9444020A1085J
ref: 17-1
COWLING,SIDE LH (WHITE/RED)
€ 248.00
17-2
9444020A107GF
ref: 17-2
COWLING LH
€ 248.00
18-1
6811133200019
ref: 18-1
FOR 85J
EMBLEM
6811133200019
€ 13.00
18-2
681113320007G
ref: 18-2
FOR 7GF
EMBLEM
681113320007G
€ 14.00
19-1
6869020A007UW
ref: 19-1
FOR 85J
TAPE SET,LH
€ 0.00
19-2
6869020A0071A
ref: 19-2
FOR 7GF
TAPE SET,LH
6869020A0071A
€ 41.00
20
6868120A107TS
ref: 20
EMBLEM,FRAME COVER
6868120A107TS
€ 10.00
21
9443416710
ref: 21
NUT,COWLING COVER
9443416710
€ 4.50
22
9449120A00
ref: 22
HEAD,COWLING FASTENER
9449120A00
€ 5.00
23
9449420A01
ref: 23
WASHER,COWLING FASTENER
9449420A01
€ 4.00
24
9449520A00
ref: 24
E-RING
9449520A00
€ 1.50
25
0920502014
ref: 25
PIN
0920502014
€ 1.50
26
9451020A02
ref: 26
BRACE,COWLING
€ 110.00
27
0711008165
ref: 27
BOLT
€ 3.00
28
0832121084
ref: 28
WASHER,LOCK,8.
0832121084
€ 2.50
29
9452020A11
ref: 29
BRACKET,COWLING UPR
9452020A11
€ 37.00
30
0711008168
ref: 30
BOLT
€ 3.00
31
9453020A00
ref: 31
BRACKET,RR VIEW MIRRORR,L
9453020A00
€ 23.00
32
9454020A00
ref: 32
BRACKET,RR VIEW MIRRORR,R
9454020A00
€ 18.00
33
0913906029
ref: 33
SCREW(6X25)
0913906029
€ 5.00
34
0913906030
ref: 34
SCREW(6X16)
0913906030
€ 3.50
35
0918006158
ref: 35
SPACER
0918006158
€ 4.50
36
5189120A00
ref: 36
COVER,COUPLER RH
5189120A00
€ 12.50
37
5189320A00
ref: 37
MOLDING
€ 4.00
38
5189220A00
ref: 38
COVER,COUPLER LH
€ 12.00
39
5189320A00
ref: 39
MOLDING
€ 4.00
40
9441020A00
ref: 40
BRACKET,COWLING LWR,R
9441020A00
€ 15.50
41
9442020A00
ref: 41
BRACKET,COWLING LWR,L
9442020A00
€ 16.00
42
0916107006
ref: 42
WASHER(7X14X1.2)
0916107006
€ 3.00
43
0913906042
ref: 43
SCREW(6X30)
0913906042
€ 7.50
44-1
9447020A0014L
ref: 44-1
FOR 85J
COWLING,UNDER (WHITE)
€ 383.00
44-2
9447020A0023Z
ref: 44-2
FOR 7GF
COWLING,UNDER (BLUE)
€ 869.50
45-1
947002084014L
ref: 45-1
FOR 14L
COWLING,UNDER RH
€ 0.00
45-2
947002084023Z
ref: 45-2
FOR 23Z
COWLING,UNDER RH
€ 408.00
46-1
6819120A0060K
ref: 46-1
FOR 14L
EMBLEM
6819120A0060K
€ 20.50
46-2
6819120A0073K
ref: 46-2
FOR 23Z
EMBLEM,COWLING LWR
6819120A0073K
€ 20.00
47-1
948002084014L
ref: 47-1
FOR 14L
COWLING,UNDER LH
€ 0.00
47-2
948002084023Z
ref: 47-2
FOR 23Z
COWLING,UNDER LH
€ 602.50
48-1
6819120A0060K
ref: 48-1
FOR 14L
EMBLEM
6819120A0060K
€ 20.50
48-2
6819120A0073K
ref: 48-2
FOR 23Z
EMBLEM,COWLING LWR
6819120A0073K
€ 20.00
49-1
9449820A0014L
ref: 49-1
FOR 14L
COVER,CENTER
€ 175.00
49-2
9449820A0023Z
ref: 49-2
FOR 23Z
COVER,CENTER
9449820A0023Z
€ 175.00
50
0913906027
ref: 50
SCREW(6X12)
0913906027
€ 3.00
51
9449920A00
ref: 51
SCREW
9449920A00
€ 2.00
52
9448920A00
ref: 52
WASHER
9448920A00
€ 7.50
53
9448420A01
ref: 53
BRACKET
9448420A01
€ 23.50
54
9448920A00
ref: 54
WASHER
9448920A00
€ 7.50
55
0214206307
ref: 55
SCREW
0214206307
€ 2.00
56
0832211068
ref: 56
WASHER 6MM
€ 2.00
57
9447720A00
ref: 57
CUSHION
9447720A00
€ 8.50
58
9449320A00
ref: 58
SPACER
9449320A00
€ 7.50
59
9448620A00
ref: 59
BRACKET
9448620A00
€ 43.50
60
9448820A00
ref: 60
CLAMP
€ 4.50
61
9449920A00
ref: 61
SCREW
9449920A00
€ 2.00
62
9448920A00
ref: 62
WASHER
9448920A00
€ 7.50
63
0831022048
ref: 63
NUT 4MM
€ 2.00
64
9448720A00
ref: 64
RIVET
9448720A00
€ 6.00
65
0214205167
ref: 65
SCREW
0214205167
€ 1.50
66
9446920A00
ref: 66
WASHER
9446920A00
€ 2.00
67
9447840A00
ref: 67
WASHER
9447840A00
€ 5.00
68
0831921058
ref: 68
NUT
€ 1.50
