FUEL COCK

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

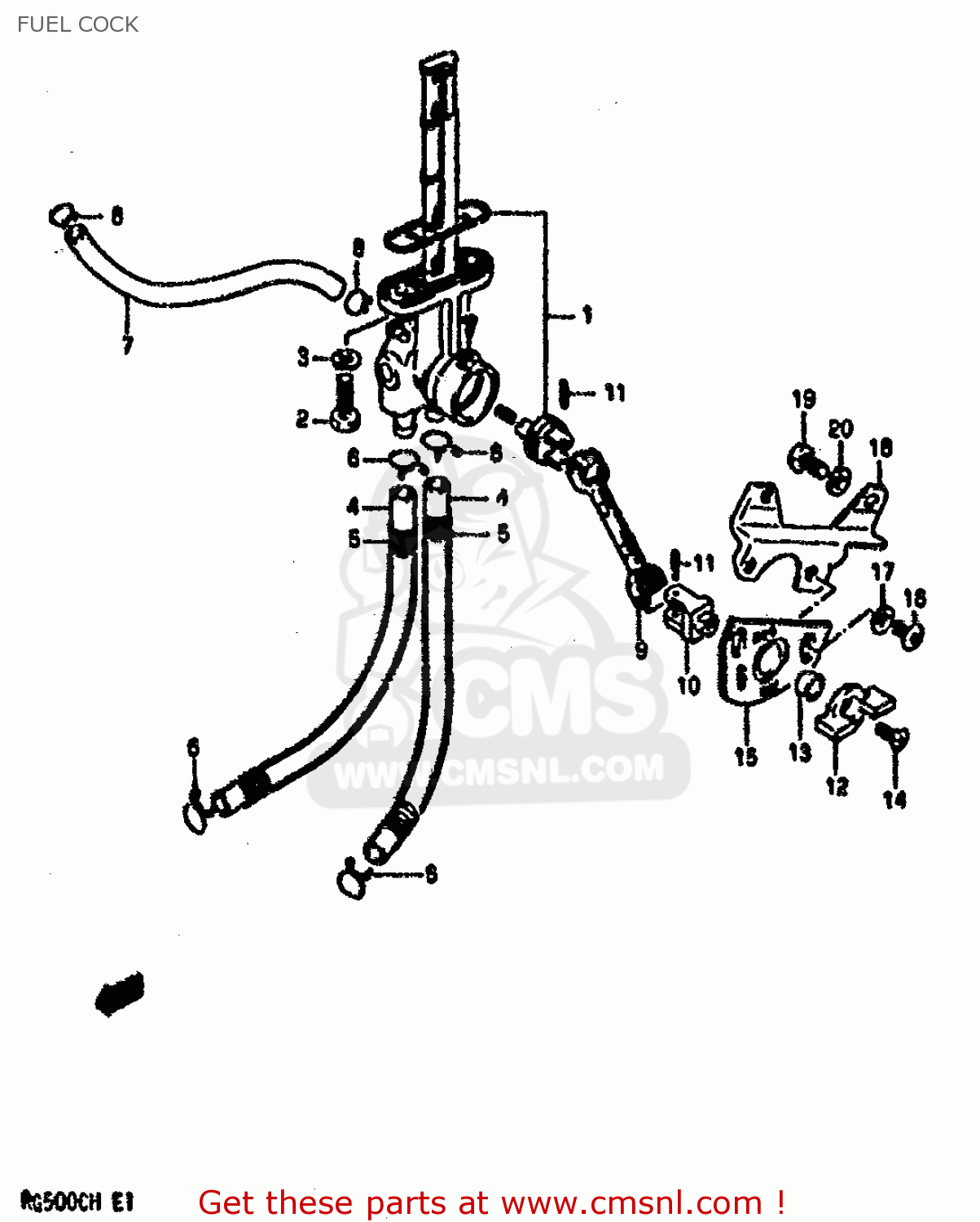

Fuel cock diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

4430020A01
ref: 1

4430020A01

0912806006
ref: 2

BOLT(6X20)

€ 2.00

0916806010
ref: 3

GASKET

€ 2.00

0934309037
ref: 4

HOSE

€ 10.00

0944017012
ref: 5

SPRING

€ 7.00

0940113409
ref: 6

CLIP

€ 2.50

0934305200
ref: 7

HOSE

€ 20.00

0940110401
ref: 8

CLIP

€ 1.50

4435020A00
ref: 9

JOINT,FUEL COCK

€ 17.00

4438320A00
ref: 10

YOKE,FUEL COCK

€ 14.50

11-1

0920503032
ref: 11-1
MODEL G

PIN,SPRING(3X8)

€ 1.50

11-2

0920503031
ref: 11-2
MODEL H

PIN

€ 2.00

4434220A00
ref: 12

HANDLE,FUEL COCK

€ 17.50

4436220A00
ref: 13

BUSH,FUEL COCK HANDLE

€ 4.50

0212205128
ref: 14

SCREW 5X12

€ 2.50

4436020A01
ref: 15

PLATE,HANDLE

€ 23.00

0913906031
ref: 16

SCREW

€ 3.00

0832221067
ref: 17

WASHER

€ 2.00

4437120A02
ref: 18

PLATE,FUEL COCK

€ 0.00

0211206167
ref: 19

SCREW

€ 2.50

0832221067
ref: 20

WASHER

€ 2.00

FUEL COCK

all assemblies
