STEERING STEM

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

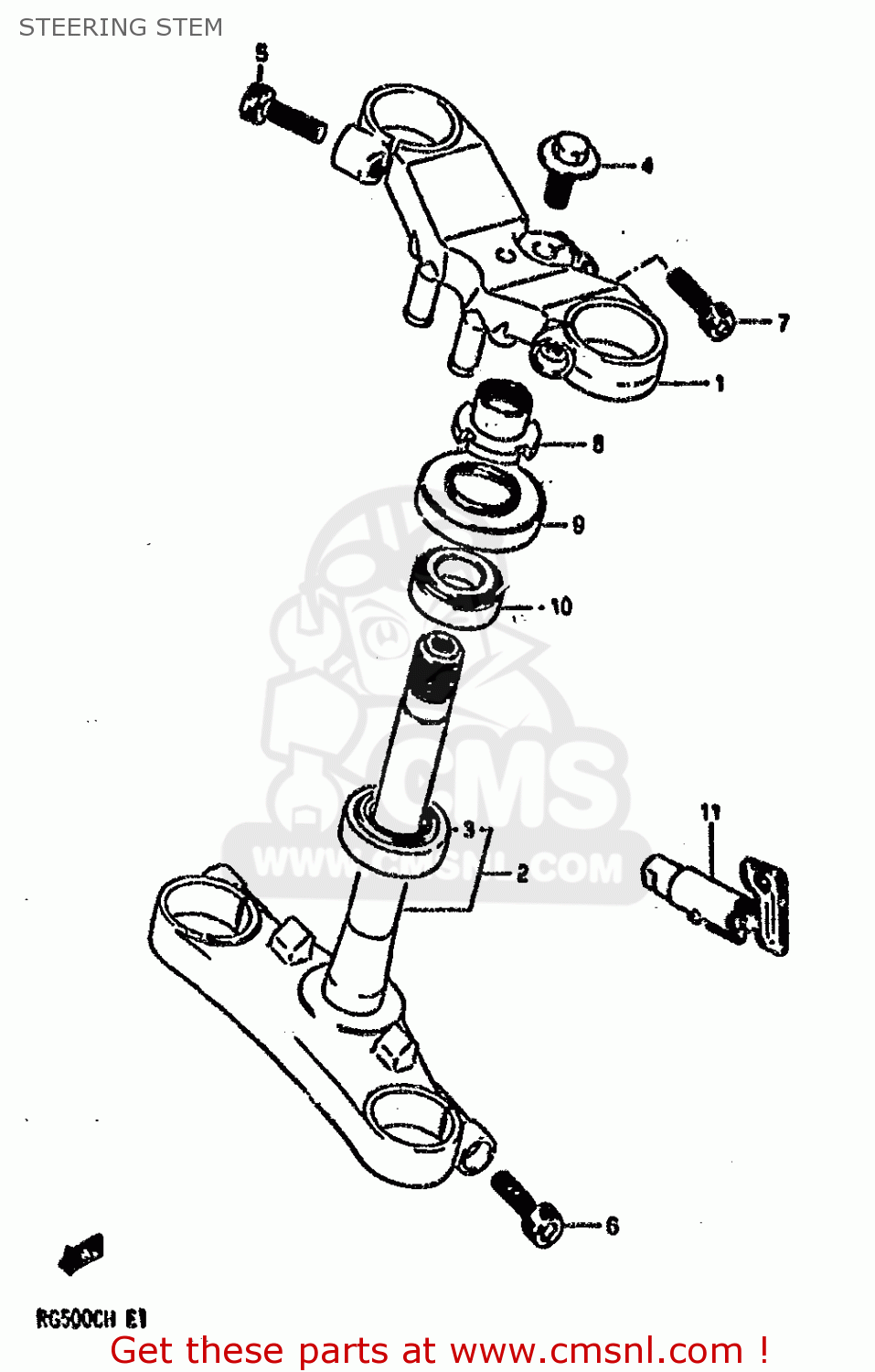

Steering stem diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

STEERING STEM RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

STEERING STEM RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

5131120A00291
ref: 1

HEAD,STEERING STEM (BLACK)

€ 156.50

2

5141020A40019
ref: 2

STEM,STEERING

€ 388.50

3

0926530005
ref: 3

BEARING

€ 49.50

4

5135305A00
ref: 4

BOLT

€ 8.50

5

0711010305
ref: 5

BOLT

€ 3.50

6

0711010305
ref: 6

BOLT

€ 3.50

7

0711008305
ref: 7

BOLT, REAR (8X30)

€ 3.00

8

5163134200
ref: 8

NUT,STEERING STEM

€ 23.00

9

0928534006
ref: 9

SEAL OIL

€ 16.50

10

0926525008
ref: 10

TAPER,ROLLER BEARING

€ 48.50

11

5190022662
ref: 11
E15,E17,E22

LOCK ASSEMBLY,STEERING (NEI

€ 168.50
