ROTARY VALVE

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

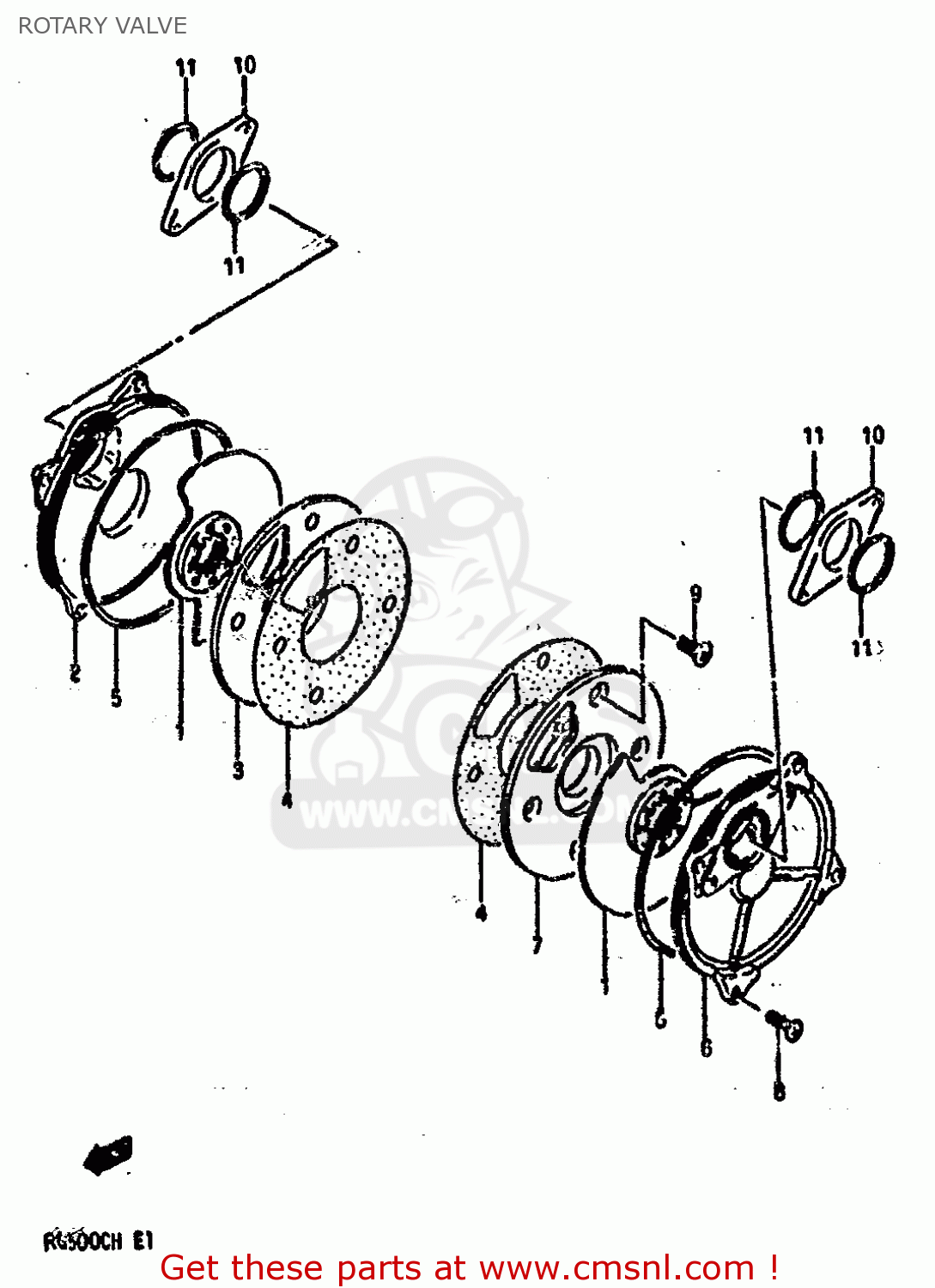

Rotary valve diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1241021A00
ref: 1

PLATE,CRANKSHAFT VALVE

€ 54.50

1244020A03
ref: 2

SEAT,OUTER VALVE,R

€ 86.00

1246120A04
ref: 3

SEAT,INNER VALVE,R

€ 44.00

1247120A03
ref: 4

GASKET,VALVE SEAT (NAS)

€ 9.00

0928000019
ref: 5

O RING(D:1.9,ID:113)

€ 8.00

1245020A03
ref: 6

SEAT,OUTER VALVE LH

€ 213.00

1246220A04
ref: 7

SEAT,INNER VALVE,L

€ 44.00

0211206168
ref: 8

SCREW

€ 2.50

0212206128
ref: 9

SCREW

€ 3.00

1312920A00
ref: 10

INSULATOR,CARBURETOR

€ 16.00

0928033005
ref: 11

O RING(D:1.9,ID:32.7)

€ 2.50
