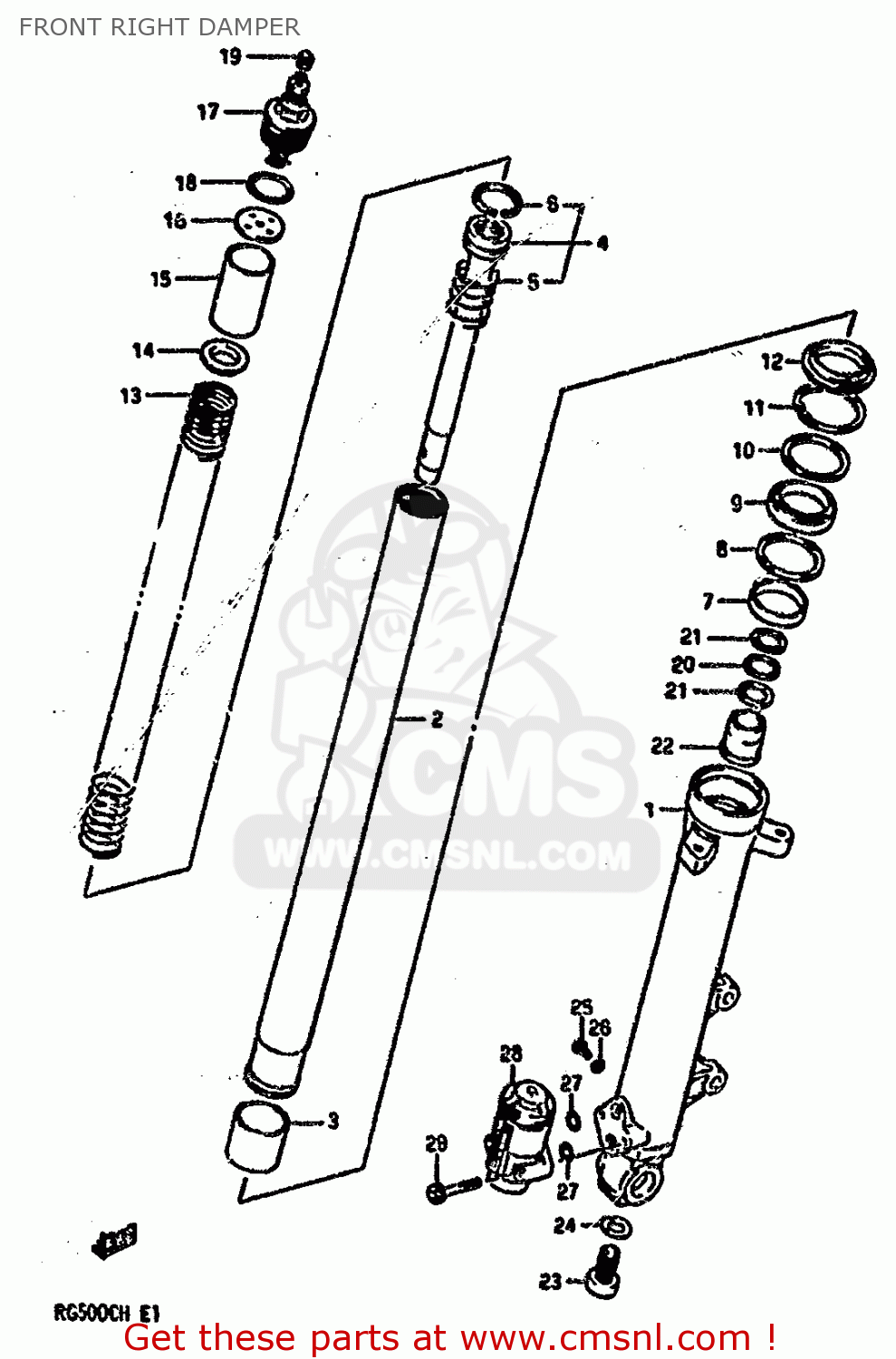

FRONT RIGHT DAMPER

ref

part #

description

quantity

0

5110320A30
ref: 0

DAMPER ASSY,RH

€ 0.00

1

5113020A20
ref: 1

TUBE,OUTER RH

€ 278.00

2

5111020A00
ref: 2

TUBE,INNER

€ 329.50

3

5112114100
ref: 3

PISTON

€ 10.50

4

5114620A00
ref: 4

CYLINDER

€ 66.50

5

5117720A00
ref: 5

SPRING,REAR CUSHION

€ 0.00

6

5119605A00
ref: 6

RING,PISTON

€ 7.50

7

5116714100
ref: 7

METAL,SLIDE

€ 7.00

8

5115814100
ref: 8

WASHER(40X50X2.3)

€ 2.50

9

5115320A00
ref: 9

SEAL,OIL

€ 13.50

10

5115820A00
ref: 10

WASHER,OIL SEAL

€ 5.50

11

5115640301
ref: 11

RING,STOPPER

€ 4.50

12

5117320A00
ref: 12

SEAL,DUST

€ 11.50

13

5117120A00
ref: 13

SPRING

€ 55.50

14

5117224A00
ref: 14

GUIDE,SPRING

€ 3.00

15

5117614120
ref: 15

SPACER,FRONT FORK SPRING

€ 20.00

16

5117420A00
ref: 16

WASHER

€ 4.00

17

5135120A00
ref: 17

CAP

€ 39.00

18

5111740300
ref: 18

O RING

€ 2.50

19

5129440400
ref: 19

CAP,VALVE AIR

€ 4.00

20

5112320A00
ref: 20

WASHER

€ 3.50

21

5112520A00
ref: 21

SPRING,LEAF

€ 6.50

22

5119520A00
ref: 22

PIECE,OIL LOCK

€ 0.00

23

5114740300
ref: 23

BOLT,CYLINDER

€ 5.50

24

5114840300
ref: 24

GASKET,CYLINDER (NAS)

€ 2.50

25

0211204087
ref: 25

SCREW

€ 1.50

26

5118303010
ref: 26

GASKET,DRAIN,PLUG (NAS)

€ 3.00

27

5179900A00
ref: 27

O RING

€ 5.50

28

5177043405
ref: 28

PDF ASSEMBLY

€ 169.50

29

0711006408
ref: 29

BOLT

€ 2.50
