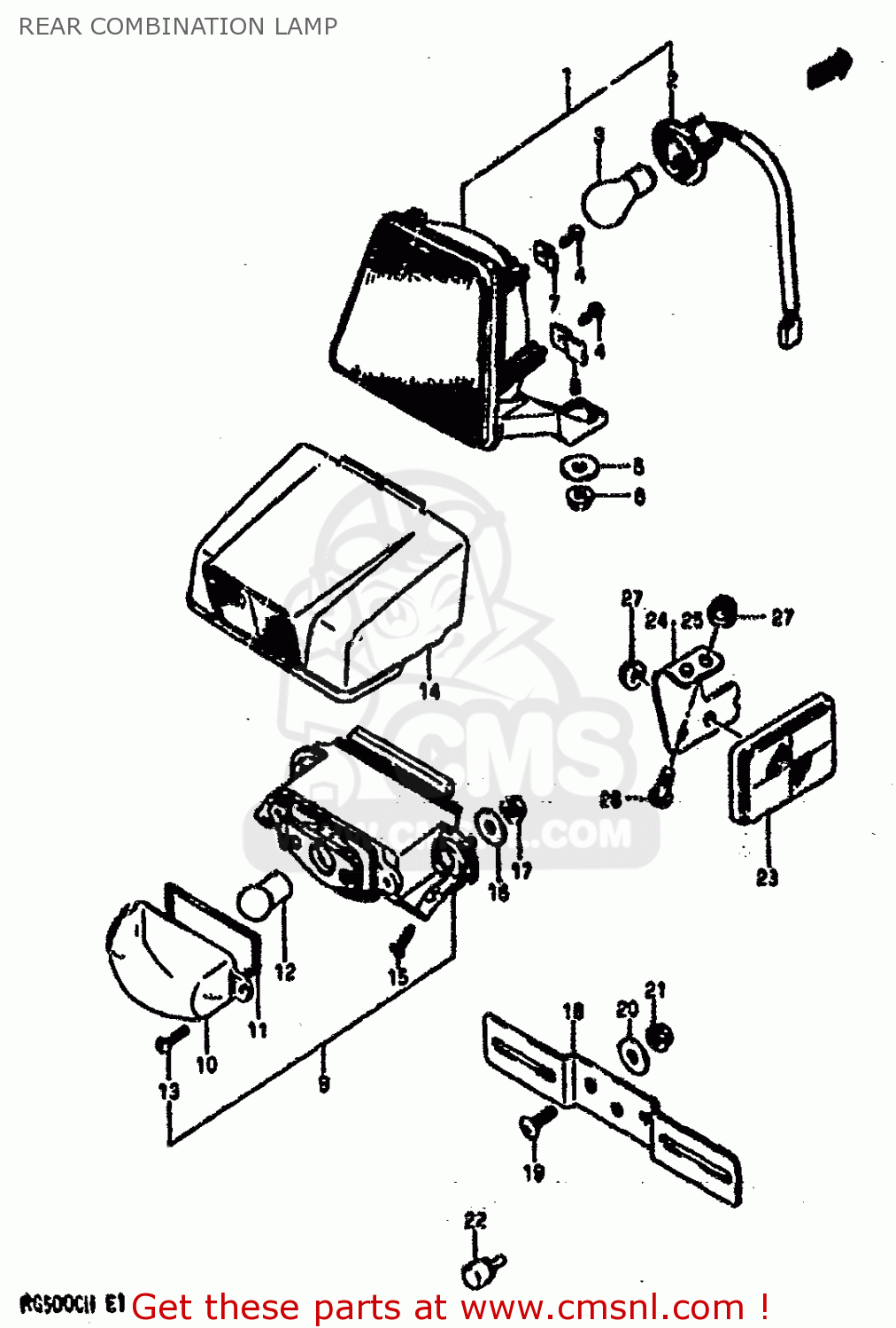

REAR COMBINATION LAMP

ref

part #

description

quantity

1-1

3571020A00
ref: 1-1
E1,E6,E24

LAMP ASSY, REAR COMBINATION

€ 72.50

1-2

3571020A50
ref: 1-2
E2,E4,E15,E16,E17,E2

LAMP ASSY, REAR COMBINATION

€ 105.00

1-3

3571020A60
ref: 1-3
E22

LAMP ASSY,REAR COMBINATION

€ 0.00

2-1

3571820A00
ref: 2-1
E1,E6,E24

SOCKET

€ 29.00

2-2

3571820A50
ref: 2-2
E2,E4,E15,E16,E17,E2

SOCKET

€ 29.00

3-1

0947112064
ref: 3-1
E1,E6,E24

BULB,12V,12W

€ 5.00

3-2

0947112083
ref: 3-2
E2,E4,E15,E16,E17,E2

BULB(12V21/5W)

€ 6.00

4

0354104126
ref: 4

SCREW

€ 1.50

5

0916006060
ref: 5

WASHER

€ 2.00

6

0831626066
ref: 6

NUT

€ 2.00

7

3571620A00
ref: 7

PLATE,UPPER

€ 2.50

8

3573620A00
ref: 8

PLATE,LOWER

€ 2.50

9-1

3591020A00
ref: 9-1
E1,E6,E24

LAMP ASSY, LICENSE PLATE

€ 92.00

9-2

3591020A50
ref: 9-2
E2,E4,E15,E16,E17,E2

LAMP ASSY, LICENSE PLATE

€ 92.00

10-1

3591200A10
ref: 10-1
E1,E6,E24

LENS,LICENSE LAMP

€ 16.00

10-2

3591200A20
ref: 10-2
E2,E4,E15,E16,E17,E2

LENS,LICENSE LAMP

€ 24.00

11

3591304A00
ref: 11

GASKET,LICESE LAMP (NAS)

€ 4.00

12-1

0947112037
ref: 12-1
E1,E6,E24

BULB

€ 7.00

12-2

0947112083
ref: 12-2
E2,E4,E15,E16,E17,E2

BULB(12V21/5W)

€ 6.00

13

0321104208
ref: 13

SCREW

€ 1.50

14

3591720A00
ref: 14

COVER,LICENSE LAMP

€ 30.50

15

0324104165
ref: 15

SCREW

€ 4.50

16

0916006060
ref: 16

WASHER

€ 2.00

17

0831626066
ref: 17

NUT

€ 2.00

18

3592744110
ref: 18

PLATE,RR LICENSE

€ 22.50

19

0214206164
ref: 19

SCREW

€ 2.50

20

0916006060
ref: 20

WASHER

€ 2.00

21

0831626066
ref: 21

NUT

€ 2.00

22

0932105019
ref: 22

CUSHION

€ 4.00

23

3595014A50
ref: 23
E39

REFLEX REFLECTOR, REAR SIDE

€ 0.00

24

3597520A00
ref: 24
E39

BRACKET,RH

€ 0.00

25

3597620A00
ref: 25
E39

BRACKET,LH

€ 0.00

26

0214205104
ref: 26
E39

SCREW 5X10

€ 2.50

27

0831616055
ref: 27
E39

NUT ,5MM

€ 2.00

all assemblies
