FRAME COVER

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

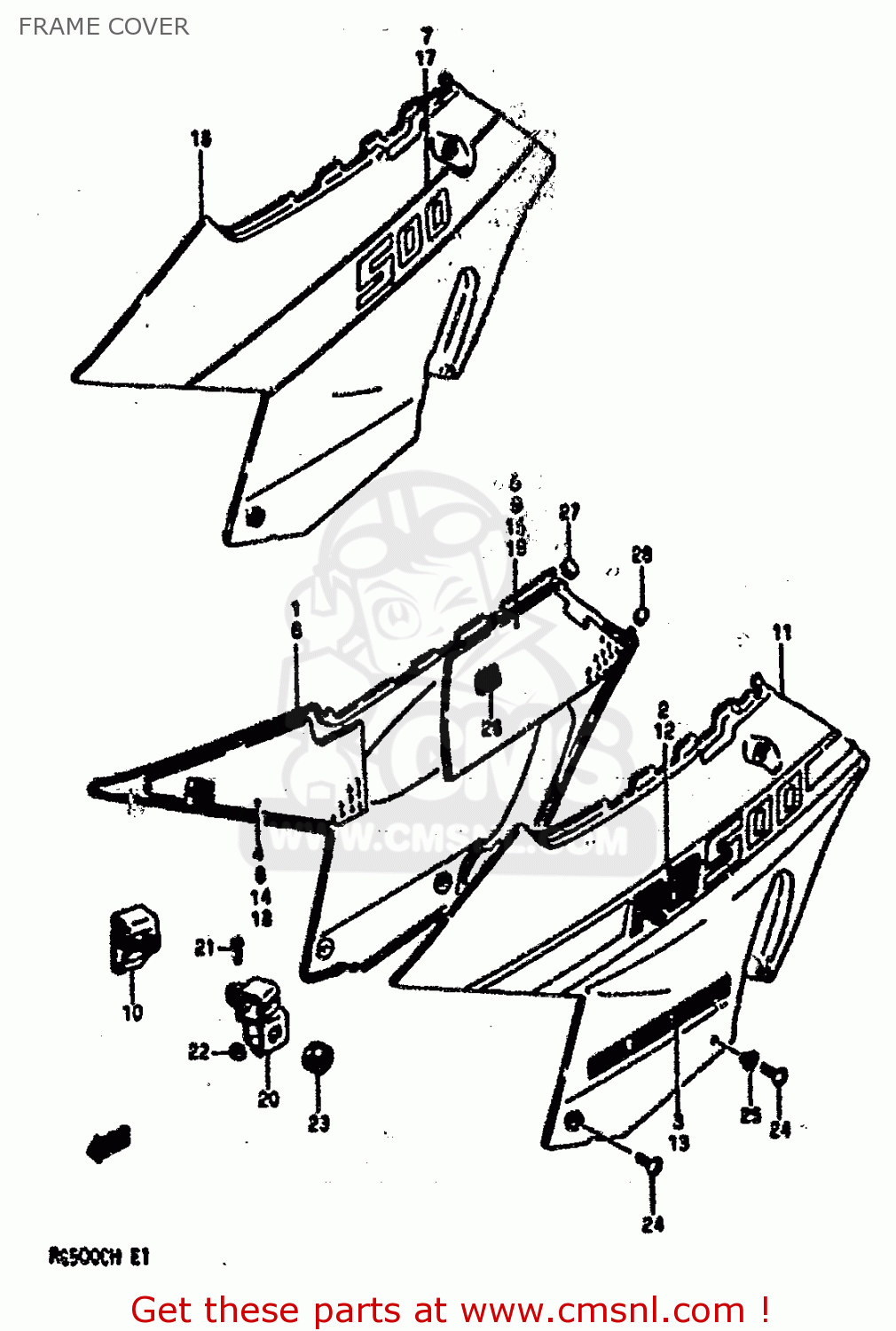

Frame cover diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

FRAME COVER RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
FRAME COVER RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
FRAME COVER RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4711021A017GF
ref: 1-1
MODEL G
COVER,SIDE R
€ 296.00
1-2
4711021A0185J
ref: 1-2
MODEL G
COVER,SIDE RH
€ 296.00
2-1
6813021A007TB
ref: 2-1
MODEL G FOR 7GF
TAPE SET,SIDE
6813021A007TB
€ 23.00
2-2
6813021A007UY
ref: 2-2
MODEL G FOR 85J
TAPE SET,SIDE COVER RH
€ 0.00
3
682353130091R
ref: 3
MODEL G
EMBLEM
€ 12.00
4
4716620A01
ref: 4
MODEL G
SHIELD,SIDE COVER HEAT FR,R
4716620A01
€ 8.50
5
4716720A01
ref: 5
MODEL G
HEAT SHIELD,FRONT RH
4716720A01
€ 24.00
6-1
4711021A7085K
ref: 6-1
MODEL H
COVER,SIDE RH
€ 296.00
6-2
4711021A709EG
ref: 6-2
MODEL H
COVER,SIDE RH
€ 296.00
7-1
6813021A4089R
ref: 7-1
MODEL H FOR 85K
TAPE SET,SIDE COVER RH
€ 25.00
7-2
6813021A409ER
ref: 7-2
MODEL H FOR 9EG
TAPE SET,SIDE COVER RH
€ 25.00
8
4716620A01
ref: 8
MODEL H
SHIELD,SIDE COVER HEAT FR,R
4716620A01
€ 8.50
9
4716720A01
ref: 9
MODEL H
HEAT SHIELD,FRONT RH
4716720A01
€ 24.00
10
4717120A00
ref: 10
HOLDER,SIDE COVER RH
€ 6.50
11-1
4721021A017GF
ref: 11-1
MODEL G
COVER SIDE L
€ 345.50
11-2
4721021A0185J
ref: 11-2
MODEL G
COVER,SIDE LH
€ 345.50
12-1
6814021A007TB
ref: 12-1
MODEL G FOR 7GF
TAPE SET,SIDE COVER LH
€ 16.00
12-2
6814021A007UV
ref: 12-2
MODEL G FOR 85J
TAPE SET,SIDE COVER LH
€ 22.00
13
682353130091R
ref: 13
MODEL G
EMBLEM
€ 12.00
14
4726620A01
ref: 14
MODEL G
HEAT SHIELD,FRONT LH
4726620A01
€ 16.00
15
4726720A01
ref: 15
MODEL G
HEAT SHIELD,REAR LH
€ 0.00
16-1
4721021A7085K
ref: 16-1
MODEL H
COVER,SIDE LH
€ 345.50
16-2
4721021A709EG
ref: 16-2
MODEL H
COVER,SIDE LH
€ 345.50
17-1
6814021A4089R
ref: 17-1
MODEL H FOR 85K
TAPE SET,SIDE COVER LH
€ 25.00
17-2
6814021A409ER
ref: 17-2
MODEL H FOR 9EG
TAPE SET,SIDE COVER LH
€ 25.00
18
4726620A01
ref: 18
MODEL H
HEAT SHIELD,FRONT LH
4726620A01
€ 16.00
19
4726720A01
ref: 19
MODEL H
HEAT SHIELD,REAR LH
€ 0.00
20
4718120A00
ref: 20
HOLDER,SIDE COVER LH
€ 6.50
21
0211205128
ref: 21
SCREW
€ 2.50
22
0831022058
ref: 22
NUT
€ 2.50
23
0932008028
ref: 23
CUSHION
0932008028
€ 2.50
24
0913905033
ref: 24
SCREW(5X10)
0913905033
€ 2.00
25
0916005013
ref: 25
WASHER(5.2X16X1)
0916005013
€ 1.50
26
4716120A01
ref: 26
CUSHION,SIDE COVER RR
4716120A01
€ 6.00
27
4556139360
ref: 27
CUSHION,SEAT TAIL COVER FR
4556139360
€ 3.00
28
4717520A00
ref: 28
CUSHION,COVER JOINT NO.2
4717520A00
€ 3.00
