FRAME

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

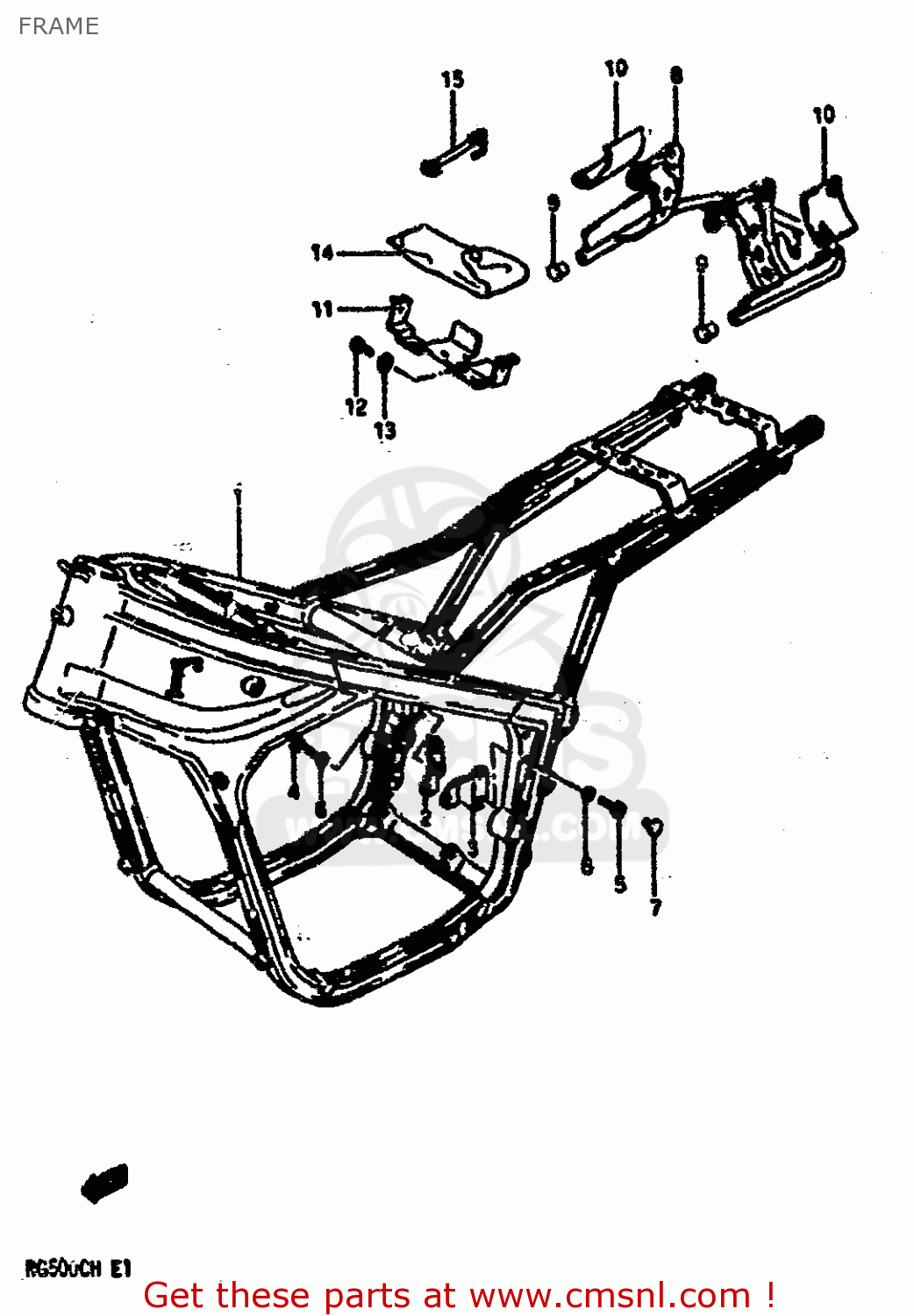

Frame diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

4110020A02
ref: 1-1

FRAME

€ 2,342.50

1-2

4110021A00
ref: 1-2
E15,E17,E22

FRAME

€ 0.00

1-3

4110021A20
ref: 1-3
E24,E34

FRAME

€ 2,342.50

4191020A00
ref: 2

PLATE,ENGINE MOUNT RH

€ 18.00

4192020A00
ref: 3

PLATE,ENGINE MOUNT LH

€ 0.00

0910608051
ref: 4

BOLT,RH

€ 1.50

0711008358
ref: 5

BOLT, FRONT RH

€ 4.50

0916408015
ref: 6

WASHER

€ 3.00

4157504A00
ref: 7

CAP,ENGINE MOUNTING

€ 2.00

4398020A00
ref: 8

GRIP,REAR

€ 76.00

0925013001
ref: 9

PLUG

€ 3.00

4712214201
ref: 10

HEAT SHIELD,FRAME COVER

€ 12.50

4155120A01
ref: 11

HOLDER,TOOL

€ 0.00

0110706203
ref: 12

BOLT

€ 2.00

0916006039
ref: 13

WASHER (6.5X18X1.6)

€ 2.00

0980000290
ref: 14

TOOL ASSY

€ 53.00

0946200085
ref: 15

BAND,TOOL

€ 6.00
