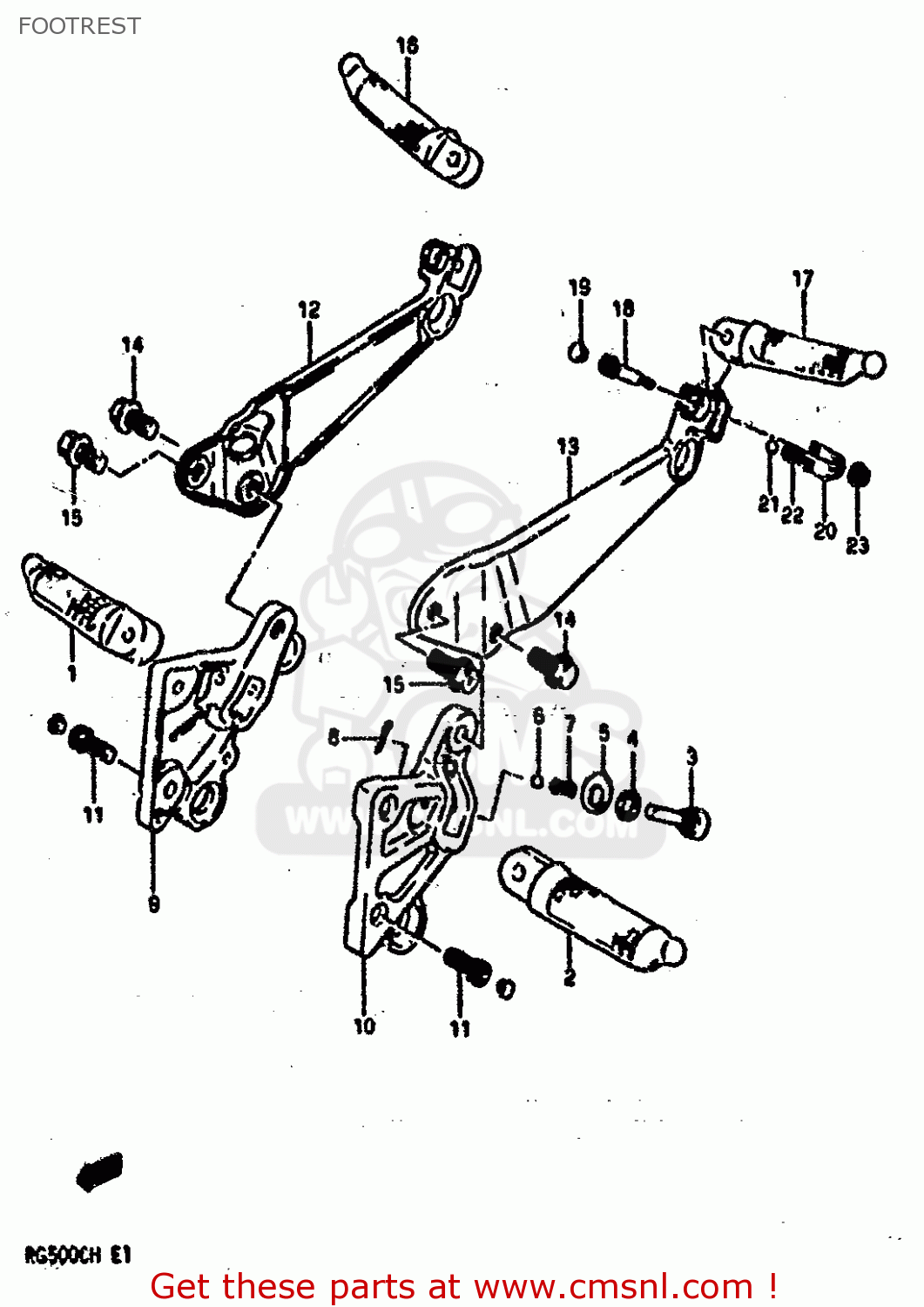

FOOTREST

ref

part #

description

quantity

1

4350104A00
ref: 1

FOOTREST ASSY,FR,R

€ 70.00

2

4350204A00
ref: 2

FOOTREST ASSY,FR,L

€ 66.00

3

4352904A00
ref: 3

BOLT, FRONT FOOTREST

€ 6.50

4

0832121104
ref: 4

WASHER,LOCK

€ 3.00

5

4359604A00
ref: 5

PLATE,SPRING STOP FR

€ 3.50

6

0611207004
ref: 6

BALL

€ 1.50

7

0944005003
ref: 7

SPRING

€ 1.50

8

0411120158
ref: 8

PIN

€ 1.50

9

4381020A00
ref: 9

BRACKET,FOOTREST RH

€ 86.00

10

4382120A00
ref: 10

BRACKET,FOOTREST LH

€ 67.00

11

0711008208
ref: 11

BOLT

€ 3.00

12-1

4362020A00
ref: 12-1
MODEL G

BRACKET,PILLION FOOTREST RH

€ 69.00

12-2

4362020A01
ref: 12-2
MODEL H

BRACKET,PILLION FOOTREST RH

€ 69.00

13-1

4372020A00
ref: 13-1
MODEL G

BRACKET,PILLION FOOTREST LH

€ 65.00

13-2

4372020A01
ref: 13-2
MODEL H

BRACKET,PILLION FOOTREST LH

€ 65.00

14

0151710205
ref: 14

BOLT,LOWER

€ 3.00

15

4363120A00
ref: 15

BOLT,UPPER

€ 6.00

16

4360120A00
ref: 16

FOOTREST ASSY

€ 55.50

17

4360220A00
ref: 17

FOOTREST ASSY

€ 52.00

18

4364220A00
ref: 18

BOLT,PILLION FOOTREST

€ 4.00

19

0925006008
ref: 19

CAP(OD:10)

€ 3.00

20-1

4363520A00
ref: 20-1

PLATE,SPRING STOP,R

€ 4.00

20-2

4373520A00
ref: 20-2

PLATE,SPRING STOP,L

€ 4.00

21

0611207004
ref: 21

BALL

€ 1.50

22

0944005003
ref: 22

SPRING

€ 1.50

23

0831931065
ref: 23

NUT

€ 2.50

all assemblies
