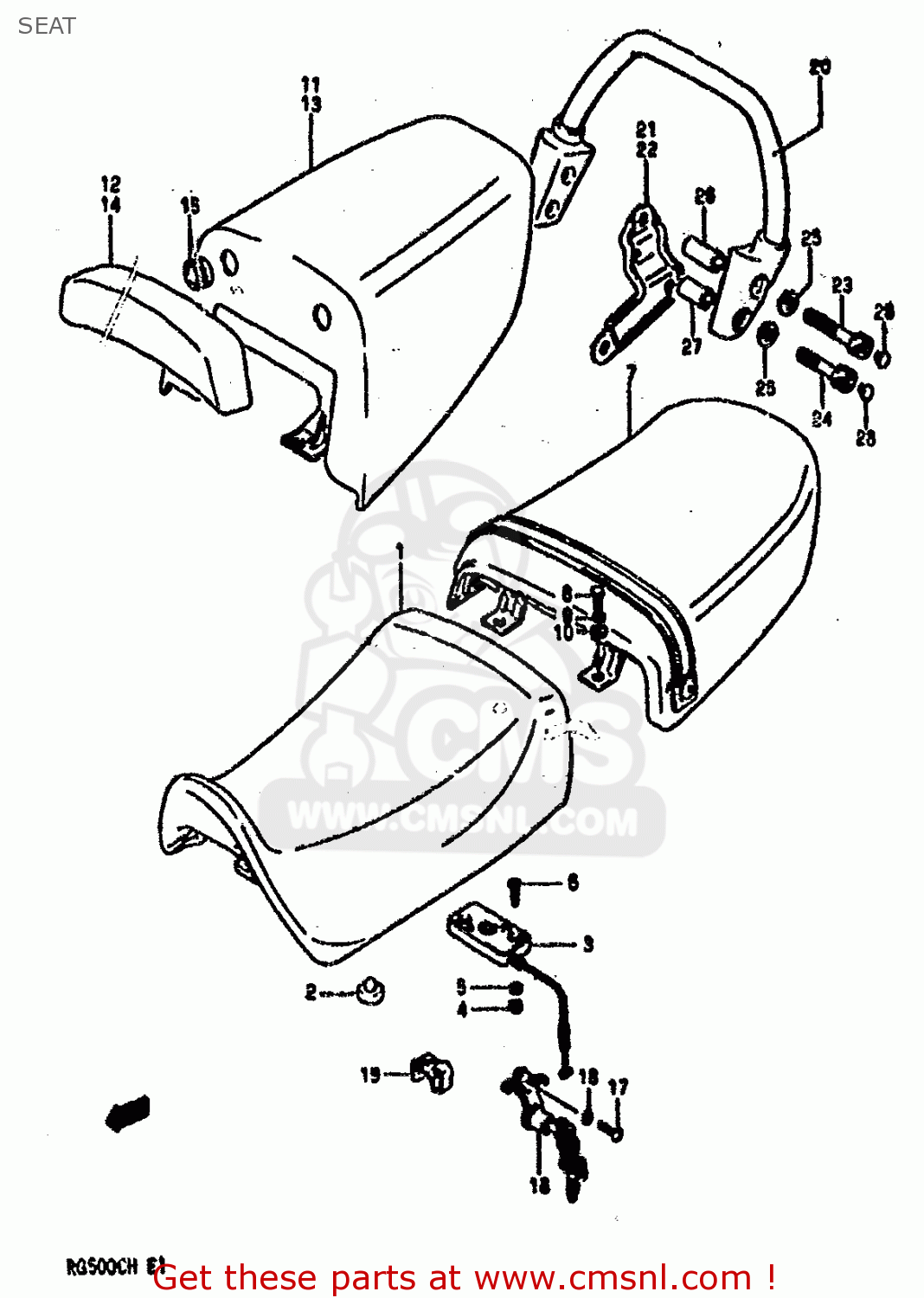

SEAT

ref

part #

description

quantity

1-1

4510020A0157S
ref: 1-1
MODEL G FOR 7GF

SEAT ASSY (BLUE)

€ 313.00

1-2

4510020A0158R
ref: 1-2
MODEL G FOR 7TV

SEAT ASSY

€ 313.00

1-3

4510020A0158E
ref: 1-3
MODEL H FOR 85K

SEAT ASSY (RED)

€ 313.00

1-4

4510020A0158D
ref: 1-4
MODEL H FOR 9EG

SEAT ASSY (BLUE)

€ 313.00

2

0932108009
ref: 2

CUSHION

€ 4.00

3

4522004A00
ref: 3

BRACKET,SEAT SUPPORT REAR

€ 0.00

4

0831311067
ref: 4

NUT

€ 2.00

5

0832131067
ref: 5

WASHER,LOCK

€ 2.50

6

0212206255
ref: 6

SCREW

€ 2.00

7-1

4530020A0057S
ref: 7-1
MODEL G FOR 7GF

SEAT ASSY,PILL

€ 243.00

7-2

4530020A1057S
ref: 7-2
MODEL G E22 FOR 7GF

SEAT ASSY,PILLION (BLUE)

€ 243.00

7-3

4530020A0058R
ref: 7-3
MODEL G FOR 7TV

SEAT ASSY,PILLION

€ 243.00

7-4

4530020A1058R
ref: 7-4
MODEL G E22 FOR 7TG

SEAT ASSY,PILLION (BLACK)

€ 243.00

7-5

4530020A0058E
ref: 7-5
MODEL H FOR 85K

SEAT ASSY,PILLION (RED)

€ 243.00

7-6

4530020A1058E
ref: 7-6
MODEL H E22 FOR 85K

SEAT ASSY,PILLION (RED)

€ 243.00

7-7

4530020A0058D
ref: 7-7
MODEL H FOR 9EG

SEAT ASSY,PILLION (BLUE)

€ 243.00

7-8

4530020A1058D
ref: 7-8
MODEL H E22 FOR 9EG

SEAT ASSY,PILLION (BLUE)

€ 243.00

8

0110706166
ref: 8

BOLT

€ 2.00

9

0832121066
ref: 9

WASHER,LOCK

€ 2.00

10

0916006019
ref: 10

WASHER(6.5X16X1.2)

€ 1.50

11-1

455502085014L
ref: 11-1
OPT,MODEL G FOR 7GF

BOX SET,SEAT TAIL (WHITE)

€ 293.00

11-2

455502086008X
ref: 11-2
OPT,MODEL G FOR 85J

BOX SET,SEAT T

€ 293.00

12-1

4622020A0057S
ref: 12-1
OPT,MODEL G FOR 14L

BACKREST,REAR (BLUE)

€ 65.00

12-2

4622020A0058R
ref: 12-2
OPT,MODEL G FOR 08X

BACKREST,SEAT

€ 65.00

13-1

455502084007P
ref: 13-1
OPT,MODEL H FOR 85K

BOX SET,SEAT TAIL (RED)

€ 293.00

13-2

455502084030J
ref: 13-2
OPT,MODEL H FOR 9EG

BOX SET,SEAT TAIL (BLUE)

€ 293.00

14-1

4622020A0058E
ref: 14-1
OPT,MODEL H FOR 07P

BACKREST,SEAT (RED)

€ 65.00

14-2

4622020A0058D
ref: 14-2
OPT,MODEL H FOR 30J

BACKREST,SEAT (BLUE)

€ 65.00

15

0932009016
ref: 15
OPT,MODEL H

CUSHION

€ 2.50

16

0570020A00KEY
ref: 16

LOCK ASSY,SEAT

€ 0.00

17

0211206208
ref: 17

SCREW

€ 2.00

18

0832121067
ref: 18

WASHER,LOCK

€ 2.50

19

9572120A00
ref: 19

HOLDER,HELMET

€ 4.00

20

4621021A00
ref: 20
E22

HANDLE,PILLION RIDER

€ 51.50

21

4624021A00
ref: 21
E22

PLATE,PILLION HANDLE RH

€ 9.00

22

4625021A00
ref: 22
E22

PLATE,PILLION HANDLE LH

€ 8.50

23

0711008555
ref: 23
E22

BOLT

€ 3.50

24

0711008455
ref: 24
E22

BOLT 8X45

€ 3.00

25

0832211084
ref: 25
E22

WASHER

€ 1.50

26

0918008091
ref: 26
E22

SPACER (8.6X13.8X35)

€ 3.00

27

0918008136
ref: 27
E22

SPACER (8.6X13.8X28)

€ 9.00

28

0925006008
ref: 28
E22

CAP(OD:10)

€ 3.00

all assemblies
