STAND

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

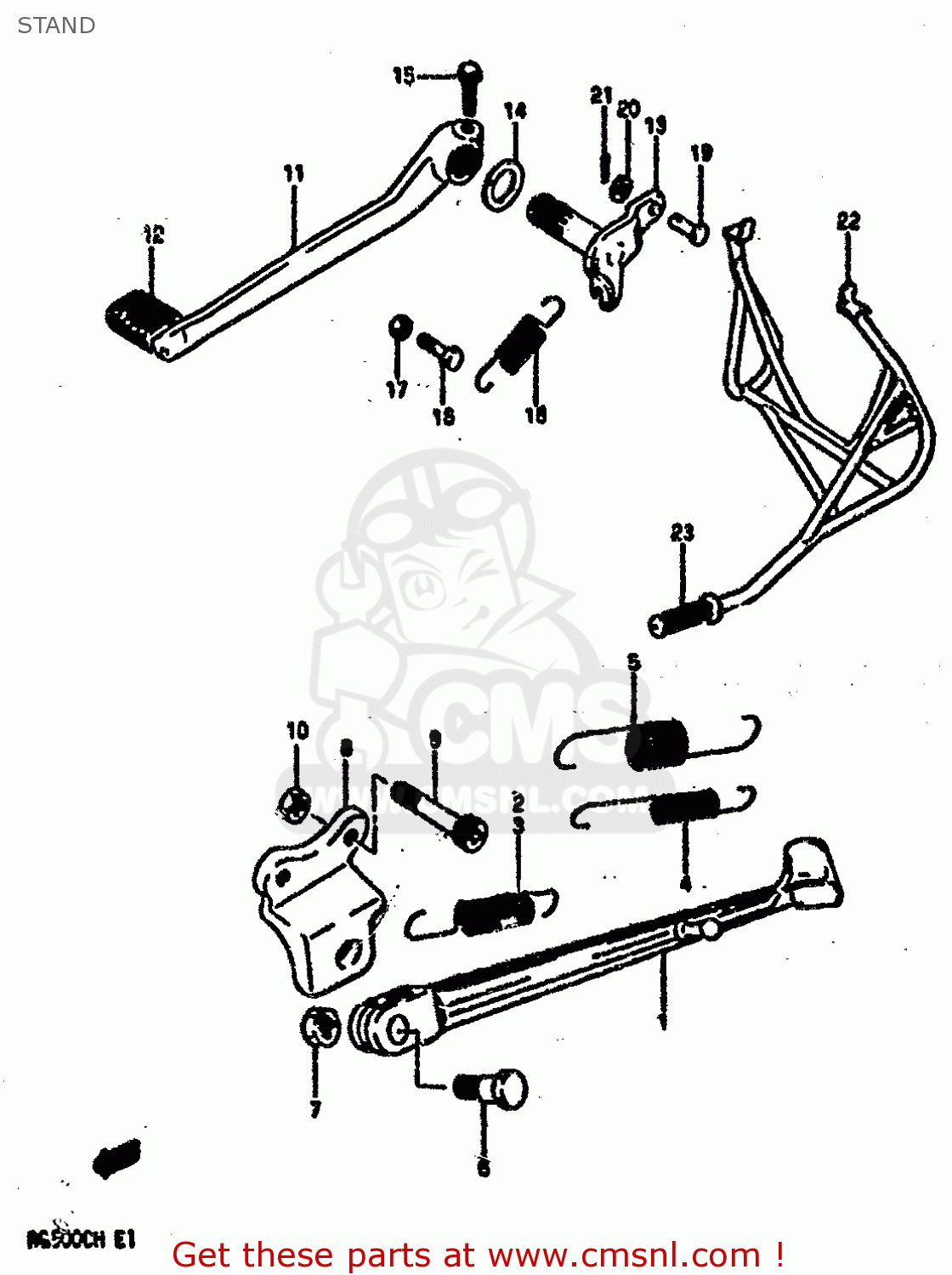

Stand diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

STAND RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
STAND RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
STAND RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4231020A01
ref: 1-1
STAND,PROP
€ 61.50
1-2
4231021A01
ref: 1-2
MODEL G E15,E16,E22
STAND,PROP
€ 0.00
1-3
4231021A02
ref: 1-3
MODEL H E2,E15,E16,E
STAND,PROP
€ 0.00
2
0944314047
ref: 2
SPRING
€ 5.50
3
0944315023
ref: 3
E15,E16,MODEL H E39
SPRING
€ 0.00
4
0944314038
ref: 4
E22
SPRING
€ 8.50
5
0944322006
ref: 5
E22
SPRING
0944322006
€ 9.50
6
0911110019
ref: 6
BOLT L:30
0911110019
€ 4.50
7
0831022105
ref: 7
NUT
0831022105
€ 2.00
8-1
4233020A00
ref: 8-1
BRACKET,PROP STAND
€ 52.50
8-2
4233021A00
ref: 8-2
E15,E16,E22,MODEL H
BRACKET,PROP STAND
€ 0.00
9
0711008408
ref: 9
BOLT
€ 3.50
10
0831022085
ref: 10
NUT 8MM
0831022085
€ 2.00
11
4311020A01
ref: 11
PEDAL,BRAKE
4311020A01
€ 69.00
12
4315104701
ref: 12
RUBBER,BRAKE PEDAL
4315104701
€ 6.00
13
4312020A01
ref: 13
ARM,BRAKE ROD
€ 25.00
14
4321204A00
ref: 14
WASHER,BRAKE PEDAL
4321204A00
€ 2.00
15
0154706207
ref: 15
BOLT
0154706207
€ 2.50
16
0110706165
ref: 16
BOLT 6X16
0110706165
€ 2.00
17
0831021065
ref: 17
NUT
€ 1.50
18
0944314025
ref: 18
SPRING
0944314025
€ 6.50
19
0920006037
ref: 19
PIN
0920006037
€ 5.00
20
0832221067
ref: 20
WASHER
0832221067
€ 2.00
21
0411120158
ref: 21
PIN
0411120158
€ 1.50
22
4210020A00
ref: 22
OPT
STAND ASSY,REAR
€ 0.00
23
5721102100
ref: 23
OPT
GRIP,L
5721102100
€ 12.00
