MAGNETO

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

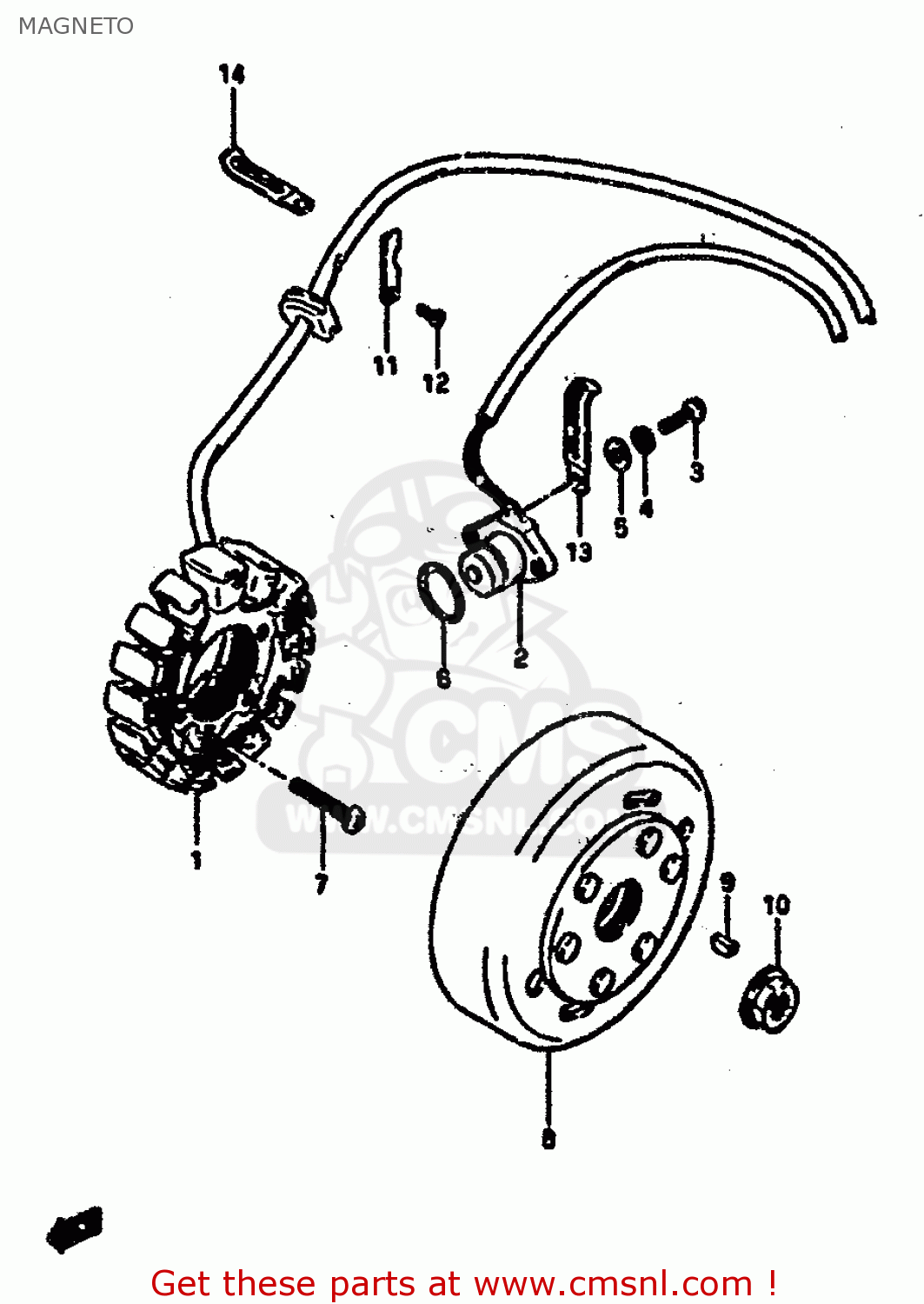

Magneto diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3210120A00
ref: 1

STATOR ASSY

€ 552.50

3216020A00
ref: 2

COIL ASSY,SIGNAL 1-2

€ 90.00

0211205205
ref: 3

SCREW 5X20

€ 2.50

0832121055
ref: 4

WASHER,LOCK

€ 3.00

0832221055
ref: 5

WASHER,5MM

€ 2.50

0928021008
ref: 6

O RING(D:2.5,ID:21)

€ 2.00

0211206308
ref: 7

SCREW 6X30

€ 2.50

3210220A00
ref: 8

ROTOR,FLYWHEEL

€ 392.00

0834131039
ref: 9

KEY

€ 2.00

3179220A00
ref: 10

NUT

€ 3.00

3149744000
ref: 11

CLAMP,GENERATOR LEAD WIRE

€ 0.00

0211205107
ref: 12

SCREW

€ 2.00

0940405401
ref: 13

CLAMP

€ 2.50

0940406413
ref: 14

CLAMP

€ 2.50
