HEADLAMP

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

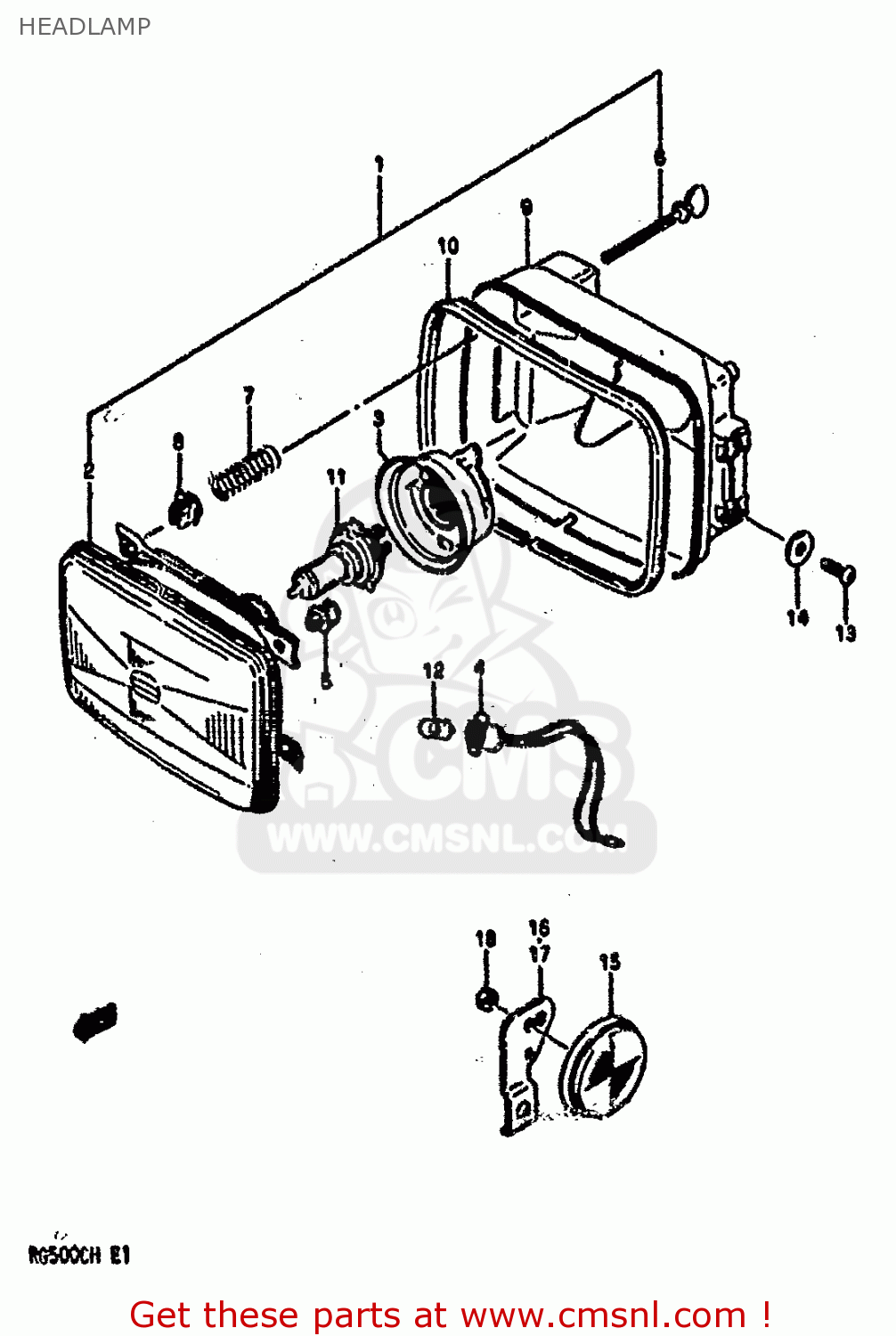

Headlamp diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

HEADLAMP RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
HEADLAMP RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
HEADLAMP RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3510020A11999
ref: 1-1
E1,E6,E24
HEADLAMP ASSY
€ 253.50
1-2
3510020A01999
ref: 1-2
E2
HEADLAMP ASSY
€ 97.00
1-3
3510020A41999
ref: 1-3
E4
HEADLAMP ASSY
€ 97.00
1-4
3510020A51999
ref: 1-4
E15,E16,E17,E21,E22,
HEADLAMP ASSY
€ 97.00
2-1
3512120A10
ref: 2-1
E1,E6,E24
UNIT
3512120A10
€ 109.00
2-2
3512120A00
ref: 2-2
E2
UNIT
€ 88.50
2-3
3512120A50
ref: 2-3
E4,E15,E16,E17,E21,E
UNIT
3512120A50
€ 88.50
3
3517320A01
ref: 3
COVER,SOCKET
3517320A01
€ 14.50
4-1
3611828660
ref: 4-1
E2
SOCKET
3611828660
€ 11.50
4-2
3611827A00
ref: 4-2
E4,E15,E16,E17,E21,E
SOCKET
3611827A00
€ 11.50
5
3516204A00
ref: 5
SCREW,SPHERICAL
3516204A00
€ 2.00
6
3515304A00
ref: 6
SCREW,ADJUSTER
3515304A00
€ 3.50
7
3515404A00
ref: 7
SPRING
3515404A00
€ 4.00
8
3515227A00
ref: 8
NUT
3515227A00
€ 3.00
9
3524020A00
ref: 9
HOUSING
3524020A00
€ 32.50
10
3524220A00
ref: 10
GASKET (NAS)
3524220A00
€ 15.00
11-1
0947112060
ref: 11-1
BULB(12V60/55W,H4)
0947112060
€ 8.00
11-2
0947112061
ref: 11-2
E4 EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
12-1
0947112001
ref: 12-1
E2
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
12-2
0947112063
ref: 12-2
E4,E15,E16,E17,E21,E
BULB(12V4W)
0947112063
€ 6.00
13
0211206208
ref: 13
SCREW
€ 2.00
14
0916006012
ref: 14
WASHER(6,5X22X1.6)
€ 2.00
15
3595014A00
ref: 15
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
16
3595620A00
ref: 16
E39
BRACKET, RH
€ 0.00
17
3595720A00
ref: 17
E39
BRACKET, LH
3595720A00
€ 17.00
18
0832121057
ref: 18
E39
LOCK WASHER
0832121057
€ 2.00
