HANDLEBAR

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

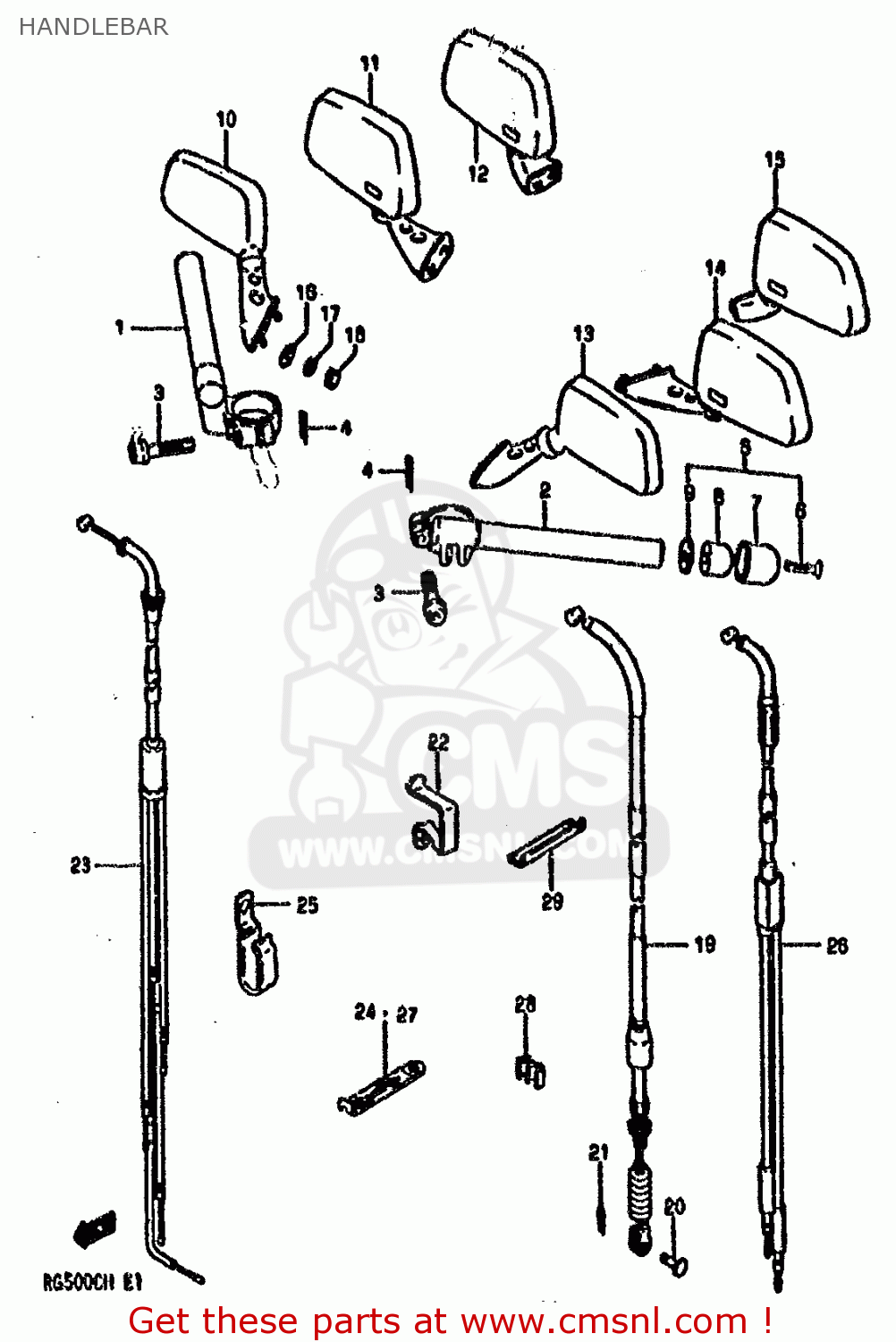

Handlebar diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

HANDLEBAR RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
HANDLEBAR RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
HANDLEBAR RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
5611120A03
ref: 1-1
MODEL G
HANDLEBAR,RH
€ 101.00
1-2
5611120A11
ref: 1-2
MODEL H
HANDLEBAR,RH
€ 211.50
1-3
5611121A02
ref: 1-3
MODEL G E22
HANDLEBAR,RH
€ 101.00
1-4
5611121A10
ref: 1-4
MODEL H E22
HANDLEBAR,RH
€ 211.50
2-1
5615120A02
ref: 2-1
MODEL G
HANDLEBAR,LH
€ 171.50
2-2
5615120A11
ref: 2-2
MODEL H
HANDLEBAR,LH
€ 215.00
2-3
5615121A01
ref: 2-3
MODEL G E22
HANDLEBAR,LH
€ 171.50
2-4
5615121A10
ref: 2-4
MODEL H E22
HANDLEBAR,LH
€ 215.00
3-1
0910610032
ref: 3-1
MODEL G
BOLT
€ 7.00
3-2
0910610048
ref: 3-2
MODEL H
BOLT
€ 7.00
4
0411120256
ref: 4
COTTER PIN
€ 1.00
5
5620020810
ref: 5
BALANCER SET
5620020810
€ 24.00
6
0213206355
ref: 6
SCREW
0213206355
€ 2.00
7
5627433400
ref: 7
CAP,HANDLE BALANCER
5627433400
€ 43.00
8
5627133400
ref: 8
BALANCER,HANDLEBAR
5627133400
€ 18.50
9
5627534400
ref: 9
SPACER,BALANCER
5627534400
€ 2.50
10-1
5650020A00
ref: 10-1
MIRROR ASSY, REAR VIEW RH
5650020A00
€ 40.00
10-2
5650020A10
ref: 10-2
E16,E24
MIRROR ASSY, REAR VIEW RH
€ 52.50
11
5650020A30
ref: 11
E22
MIRROR ASSY,REAR VIEW RH
€ 107.50
12
5650027A10
ref: 12
E2,E4,E21
MIRROR ASSY,RH
5650027A10
€ 53.50
13-1
5660020A00
ref: 13-1
MIRROR ASSY L
5660020A00
€ 40.00
13-2
5660020A10
ref: 13-2
E16,E24
MIRROR ASSY, REAR VIEW LH
5660020A10
€ 52.50
14
5660020A30
ref: 14
E22
MIRROR ASSY,REAR VIEW LH
€ 46.00
15
5660027A10
ref: 15
E2,E4,E21
MIRROR ASSY,LH
5660027A10
€ 53.50
16
0832221064
ref: 16
WASHER
0832221064
€ 2.00
17
0832121064
ref: 17
WASHER,LOCK
0832121064
€ 2.00
18
0831011065
ref: 18
NUT
€ 2.00
19
5820020A00
ref: 19
CABLE ASSY,CLUTCH
5820020A00
€ 35.00
20
0920006004
ref: 20
PIN(L:13)
0920006004
€ 1.50
21
0411120158
ref: 21
PIN
0411120158
€ 1.50
22
5862620A01
ref: 22
GUIDE,CLUTCH CABLE
€ 3.50
23-1
5830020A00
ref: 23-1
MODEL G
CABLE ASSY,THROTTLE
5830020A00
€ 60.50
23-2
5830020A10
ref: 23-2
MODEL H
CABLE ASSY,THROTTLE
5830020A10
€ 70.00
24-1
0940406404
ref: 24-1
CLAMP
0940406404
€ 3.00
24-2
0940406405
ref: 24-2
CLAMP
€ 3.00
25
5862120A01
ref: 25
GUIDE,THROTTLE CABLE
€ 3.00
26-1
5841020A00
ref: 26-1
MODEL G
CABLE COMP STA
5841020A00
€ 31.50
26-2
5841020A10
ref: 26-2
MODEL H
CABLE,STARTER
€ 33.50
27
0940406403
ref: 27
CLAMP
€ 2.50
28
0940800066
ref: 28
CLIP
0940800066
€ 1.50
29
5862820A00
ref: 29
CUSHION,CONTROL CABLE
€ 0.00
