TRANSMISSION

RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

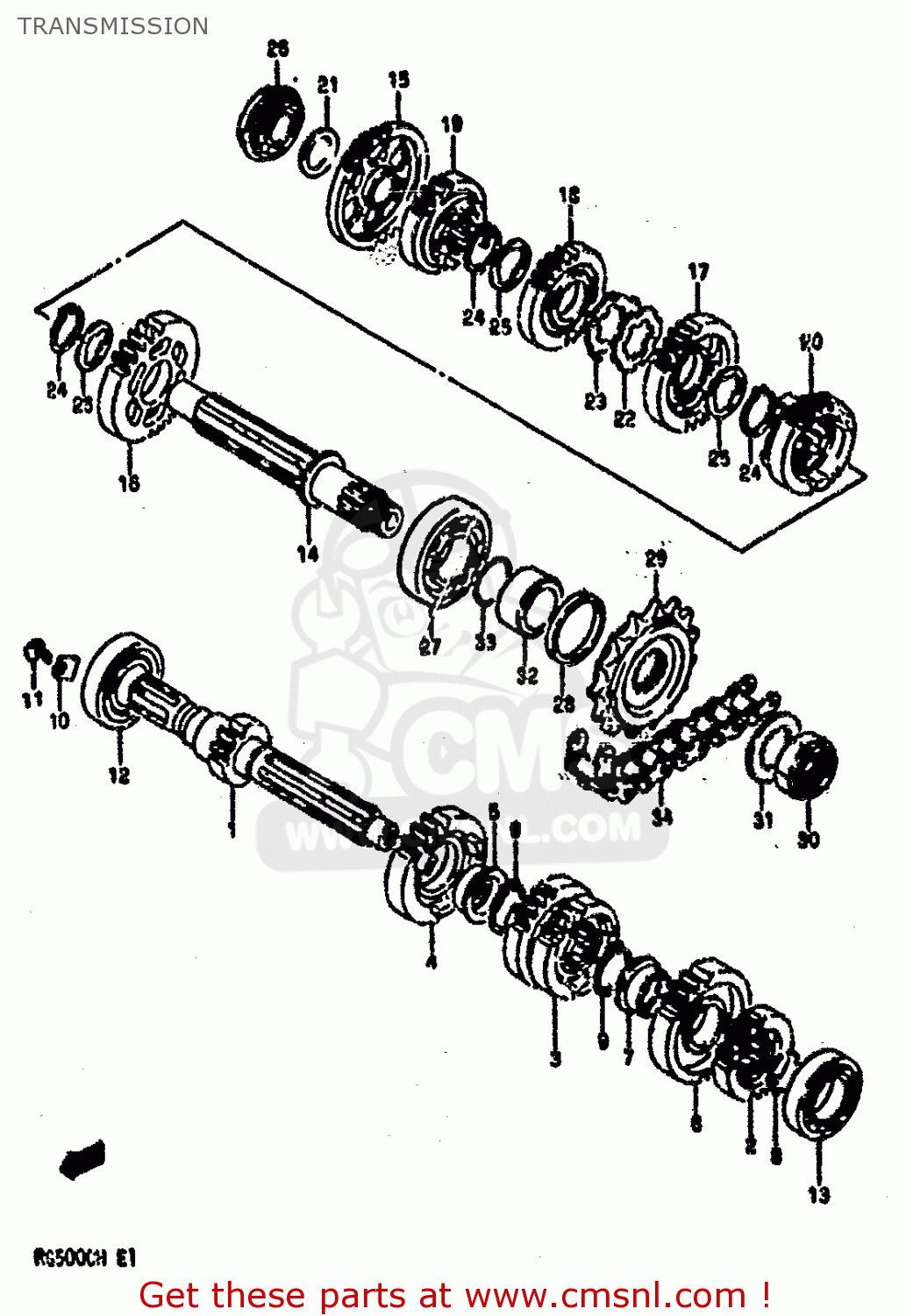

Transmission diagram RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)

TRANSMISSION RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
TRANSMISSION RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
TRANSMISSION RG500C 1987 (H) (E01 E02 E04 E06 E15 16 17 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
2412120A01
ref: 1
COUNTER SHAFT (NT:11)
2412120A01
€ 185.50
2
2422120A01
ref: 2
GEAR,2ND DRIVE (NT:16)
€ 72.00
3-1
2423120A01
ref: 3-1
~E.NO.102120,TO 2423
GEAR,3RD DRIVE
€ 113.00
3-2
2423121A00
ref: 3-2
E.NO.102121~
GEAR,3/4TH DRIVE (NT:21/23)
2423121A00
€ 106.00
4-1
2425120A01
ref: 4-1
~E.NO.102120,TO 2425
GEAR,5TH DRIVE (NT:22)
€ 97.50
4-2
2425121A00
ref: 4-2
E.NO.102121~
GEAR,5TH DRIVE (NT:22)
2425121A00
€ 97.50
5
0930122002
ref: 5
BUSH
0930122002
€ 7.50
6
2426120A02
ref: 6
GEAR,6TH DRIVE (NT:23)
€ 88.50
7
0930122003
ref: 7
BUSH
0930122003
€ 17.50
8
0938022009
ref: 8
CIRCLIP
0938022009
€ 2.50
9
0833111229
ref: 9
CIRCLIP
0833111229
€ 2.00
10
2474120A00
ref: 10
RETAINER,COUNTER BEARING,R
2474120A00
€ 2.00
11
0212206167
ref: 11
SCREW
0212206167
€ 2.00
12
0926725002
ref: 12
BEARING(25X52X21)
0926725002
€ 73.00
13
0811062030
ref: 13
BEARING
0811062030
€ 16.50
14
2413120A00
ref: 14
DRIVESHAFT
€ 129.00
15
2431020A02
ref: 15
GEAR,1ST DRIVEN (NT:29)
€ 108.50
16-1
2432020A00
ref: 16-1
~E.NO.106337,TO 2432
GEAR,2ND DRIVEN
2432020A00
€ 107.50
16-2
2432021A10
ref: 16-2
E.NO.106338~
GEAR,2ND DRIVEN(NT:28)
2432021A10
€ 114.50
17
2433020A00
ref: 17
GEAR,3RD DRIVEN (NT:29) KIT
€ 129.50
18
2434020A00
ref: 18
GEAR,4TH DRIVEN (NT:27)
€ 114.50
19
2435121A00
ref: 19
GEAR,5TH DRIVEN (NT:23)
€ 108.00
20-1
2436121A00
ref: 20-1
~E.NO.106337,TO 2436
GEAR,6TH DRIVEN
2436121A00
€ 124.50
20-2
2436121A10
ref: 20-2
E.NO.106338~
GEAR,6TH DRIVEN (NT:22)
€ 124.50
21
0821120321
ref: 21
WASHER,THRUST
€ 3.00
22
0916725013
ref: 22
WASHER,LOCK
0916725013
€ 2.50
23
0916925001
ref: 23
WASHER
0916925001
€ 2.00
24
0938025003
ref: 24
RING,SNAP
0938025003
€ 3.00
25
0916725012
ref: 25
WASHER,LOCK
0916725012
€ 3.50
26
0926220078
ref: 26
BEARING
0926220078
€ 15.50
27
0811363050
ref: 27
BEARING
0811363050
€ 21.50
28
0928332003
ref: 28
SEAL,OIL(32X42X6)
0928332003
€ 3.50
29
2751021A00
ref: 29
SPROCKET,ENGINE
€ 62.50
30
0915920001
ref: 30
NUT
0915920001
€ 12.00
31
0916725019
ref: 31
WASHER,LOCK
0916725019
€ 2.50
32
0918025076
ref: 32
SPACER(25X32X16.4)
0918025076
€ 14.00
33
0928025001
ref: 33
O RING(D:1,ID:24.5)
0928025001
€ 2.50
34
2760027A00106
ref: 34
CHAIN ASSEMBLY,DRIVE
€ 258.00
