AIR CLEANER
VL800B VOLUSIA 2014 (L4) USA (E03)

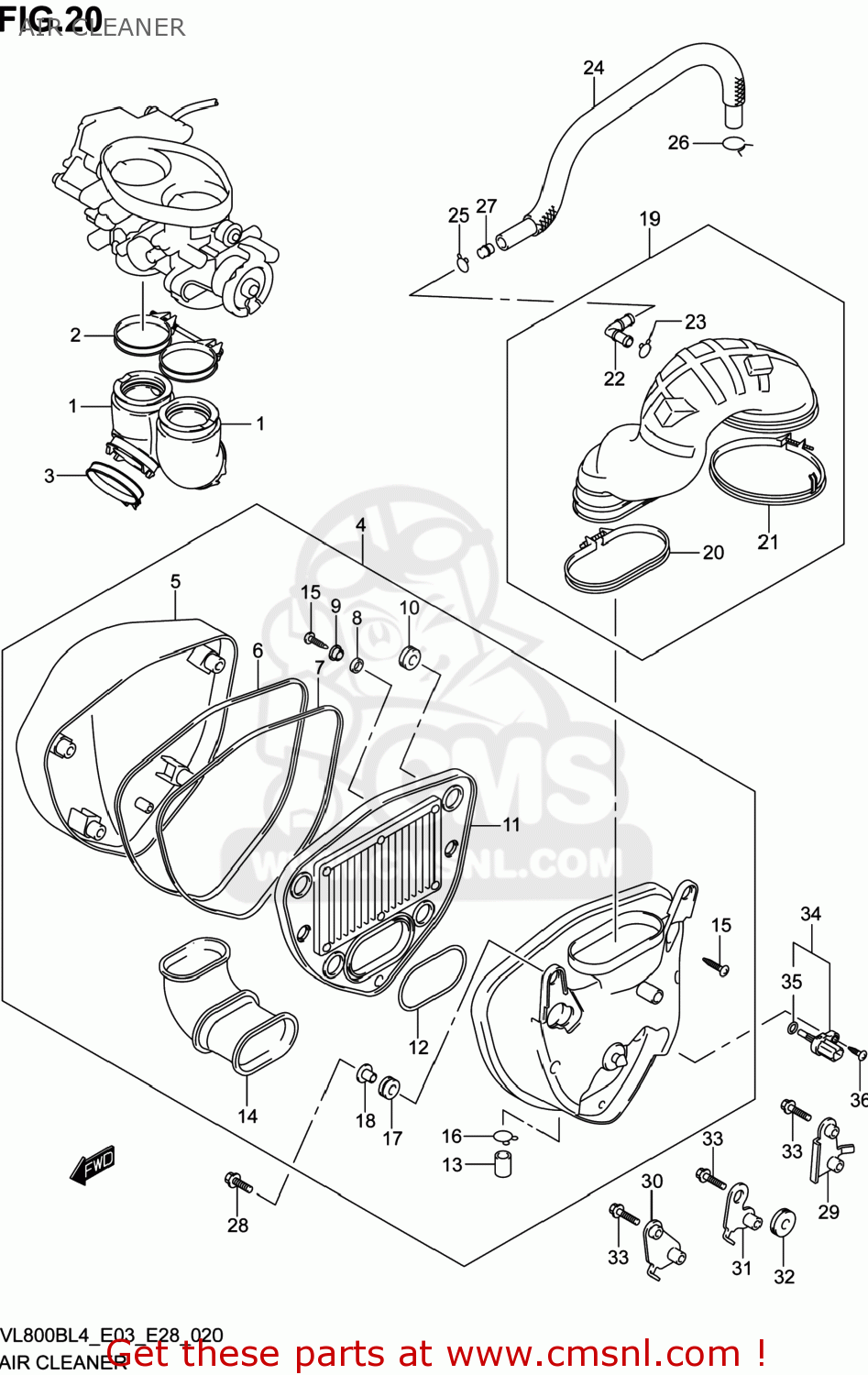

Air cleaner diagram VL800B VOLUSIA 2014 (L4) USA (E03)
AIR CLEANER VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1311141F11
ref: 1
PIPE,INTAKE
€ 31.00
2
1317039G00
ref: 2
CLAMP,INTAKE PIPE
€ 19.00
3
1317015G00
ref: 3
CLAMP,INTAKE PIPE
€ 4.00
4
1370139G30
ref: 4
CASE ASSY,AIR CLEANER
€ 362.50
5
1374139G30
ref: 5
CAP,AIR CLEANER
€ 161.00
6
1372739G20
ref: 6
GASKET (NAS)
€ 11.50
7
1372639G20
ref: 7
GASKET (NAS)
€ 11.50
8
1374739G20
ref: 8
CUSHION
€ 2.50
9
0916906082
ref: 9
WASHER
€ 2.50
10
1374741F00
ref: 10
CUSHION
€ 2.50
11
1378039G20
ref: 11
FILTER,AIR CLEANER
€ 36.50
12
1374639G20
ref: 12
GASKET,FILTER (NAS)
€ 8.00
13
1385941B10
ref: 13
PLUG
€ 5.50
14
1389139G20
ref: 14
TUBE,INLET
€ 20.00
15
035410525B
ref: 15
SCREW
€ 2.50
16
0940114301
ref: 16
CLIP
€ 2.00
17
0932009016
ref: 17
CUSHION
€ 2.50
18
1381229C50
ref: 18
COLLAR,CLEANER CASE
€ 1.50
19
1388039G21
ref: 19
TUBE ASSY,OUTLET
€ 130.50
20
1382641F20
ref: 20
CLAMP
€ 14.50
21
1382639G21
ref: 21
CLAMP
€ 22.00
22
1385814D20
ref: 22
JOINT
€ 6.00
23
0940115101
ref: 23
CLIP
€ 2.00
24
1385339G20
ref: 24
TUBE,BREATHER
€ 18.00
25
0940115101
ref: 25
CLIP
€ 2.00
26
0940116301
ref: 26
CLAMP
€ 2.50
27
1385914D40
ref: 27
JET,BREATHER
€ 3.00
28
0913906063
ref: 28
SCREW(6X20)
€ 4.00
29
1376139G20
ref: 29
BRACKET,AIR CLEANER NO.1
€ 12.00
30
1376239G20
ref: 30
BRACKET,AIR CLEANER NO.2
€ 12.00
31
1376339G20
ref: 31
BRACKET,AIR CLEANER NO.3
€ 11.50
32
0932008028
ref: 32
CUSHION
€ 2.50
33
015470625A
ref: 33
BOLT
€ 2.50
34
1365041F10
ref: 34
SENSOR,AIR TEMP
€ 41.50
35
1365541F10
ref: 35
O RING
€ 7.00
36
035110516B
ref: 36
SCREW
€ 2.50
