FRONT MASTER CYLINDER
VL800B VOLUSIA 2014 (L4) USA (E03)

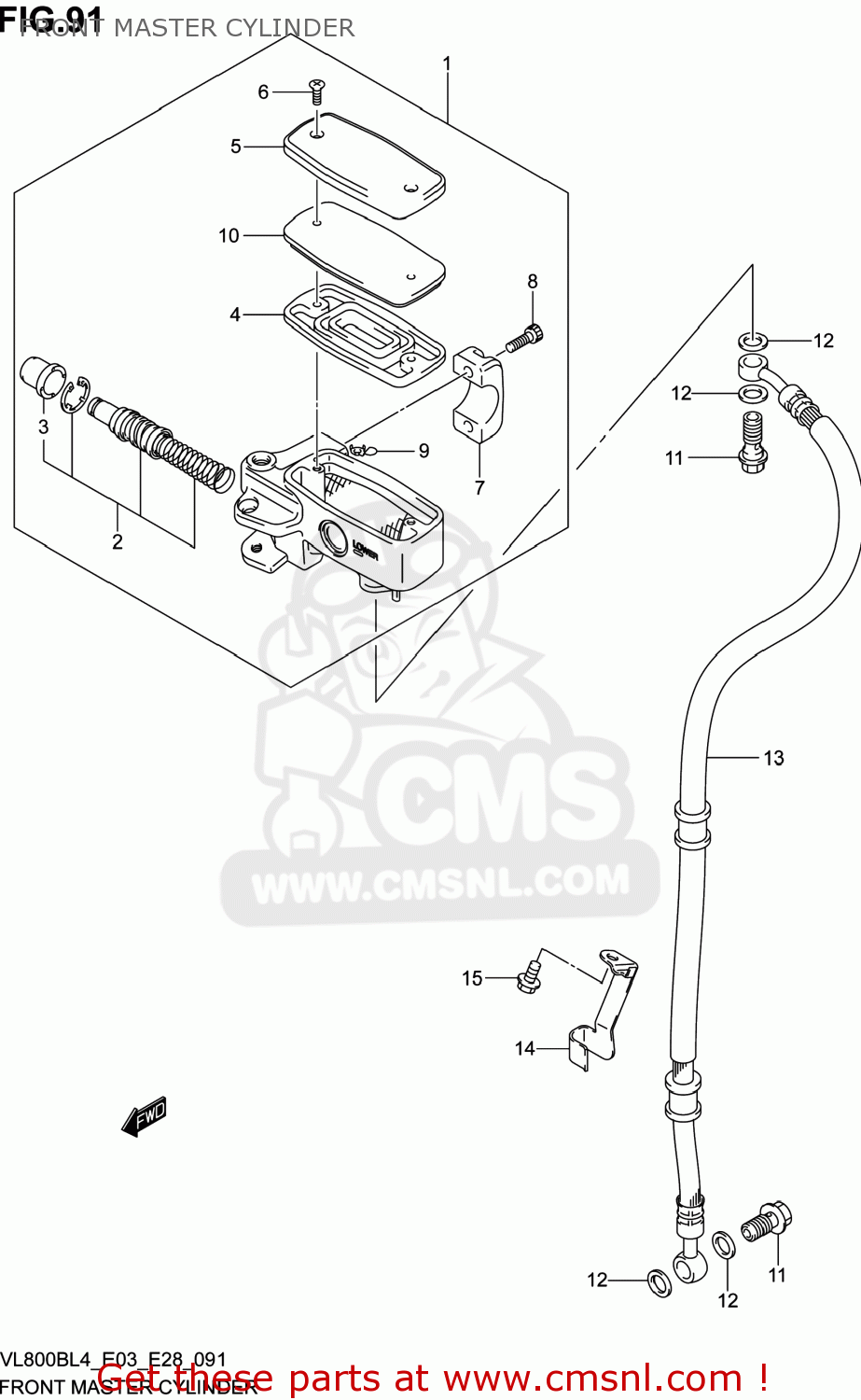

Front master cylinder diagram VL800B VOLUSIA 2014 (L4) USA (E03)
FRONT MASTER CYLINDER VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960010FF0
ref: 1
CYLINDER ASSY,FRONT MASTER
€ 310.00
2
5960004810
ref: 2
PISTON/CUP SET
€ 37.50
3
5966644300
ref: 3
BOOT
€ 6.00
4
5966710F00
ref: 4
DIAPHRAGM
€ 7.00
5
5966910F40
ref: 5
CAP
€ 41.00
6
6968949300
ref: 6
SCREW
€ 1.50
7
5967110F20
ref: 7
HOLDER
€ 27.50
8
0713006207
ref: 8
BOLT
€ 3.50
9
5966432F00
ref: 9
PROTECTOR
€ 7.50
10
5743710F00
ref: 10
PLATE,DIAPHRAGM
€ 13.00
11
0936010062
ref: 11
BOLT UNION
€ 5.00
12
0916110009
ref: 12
WASHER(10X15X1.5)
€ 2.00
13
5948041F10
ref: 13
HOSE,FR BRAKE
€ 59.50
14
5926643H00
ref: 14
CLAMP,FR BRAKE HOSE UPR
€ 11.50
15
015500612B
ref: 15
BOLT
€ 2.50
