FOOTREST
VL800B VOLUSIA 2014 (L4) USA (E03)

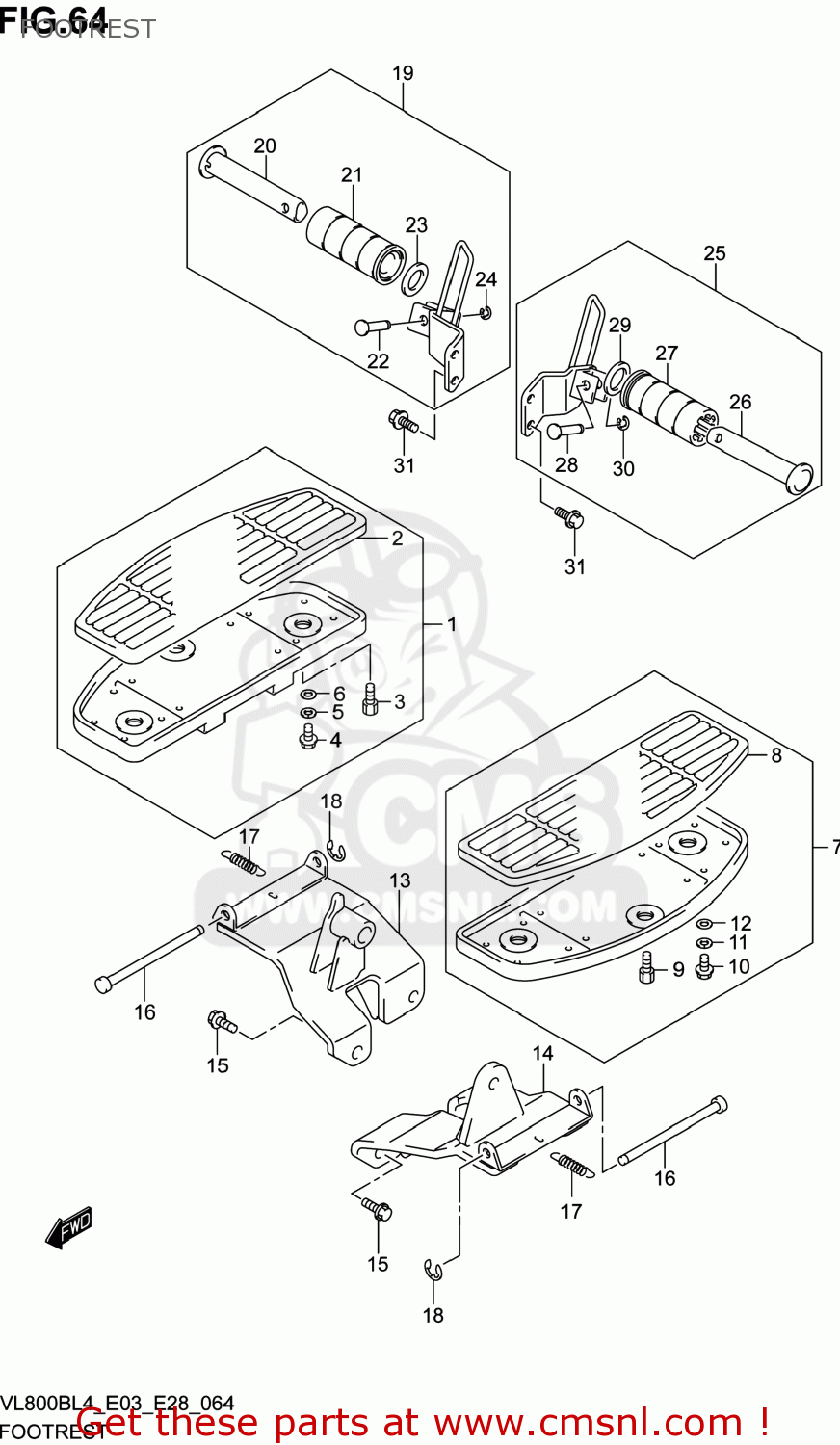

Footrest diagram VL800B VOLUSIA 2014 (L4) USA (E03)
FOOTREST VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4350110F11
ref: 1
FOOTREST ASSY,PILLION,R
€ 122.00
2
4355010F10
ref: 2
RUBBER,FR FOOTREST
€ 58.00
3
4357607D01
ref: 3
BOLT,BANK SENSOR
€ 8.00
4
015500610A
ref: 4
BOLT
€ 2.00
5
0916006158
ref: 5
WASHER(6.5X22X1.6)
€ 1.50
6
0932010036
ref: 6
CUSHION
€ 2.50
7
4350210F11
ref: 7
FOOTREST ASSY,PILLION,L
€ 122.00
8
4355010F10
ref: 8
RUBBER,FR FOOTREST
€ 58.00
9
4357607D01
ref: 9
BOLT,BANK SENSOR
€ 8.00
10
015500610A
ref: 10
BOLT
€ 2.00
11
0916006158
ref: 11
WASHER(6.5X22X1.6)
€ 1.50
12
0932010036
ref: 12
CUSHION
€ 2.50
13
4351041F30
ref: 13
BRACKET,FR FOOTREST,R
€ 43.00
14
4352041F30
ref: 14
BRACKET,FR FOOTREST,L
€ 43.00
15
015801030B
ref: 15
BOLT
€ 3.50
16
4353910F00
ref: 16
PIN,FR FOOTREST
€ 6.50
17
0944311033
ref: 17
SPRING
€ 4.50
18
083321106A
ref: 18
E RING
€ 2.00
19
4360041F50
ref: 19
FOOTREST ASSY,PILLION,R
€ 54.50
20
4361039G00
ref: 20
BAR,PILLION FOOTREST
€ 13.00
21
4361239G00
ref: 21
RUBBER,PILLION FOOTREST
€ 5.00
22
4363625D00
ref: 22
PIN,PILLION FOOTREST
€ 5.50
23
0916019024
ref: 23
WASHER(19.5X32X2)
€ 2.00
24
083321104B
ref: 24
E RING
€ 2.00
25
4370041F50
ref: 25
FOOTREST ASSY,PILLION,L
€ 54.50
26
4361039G00
ref: 26
BAR,PILLION FOOTREST
€ 13.00
27
4361239G00
ref: 27
RUBBER,PILLION FOOTREST
€ 5.00
28
4363625D00
ref: 28
PIN,PILLION FOOTREST
€ 5.50
29
0916019024
ref: 29
WASHER(19.5X32X2)
€ 2.00
30
083321104B
ref: 30
E RING
€ 2.00
31
0910308412
ref: 31
BOLT(8X16)
€ 2.50
