CRANKSHAFT
VL800B VOLUSIA 2014 (L4) USA (E03)

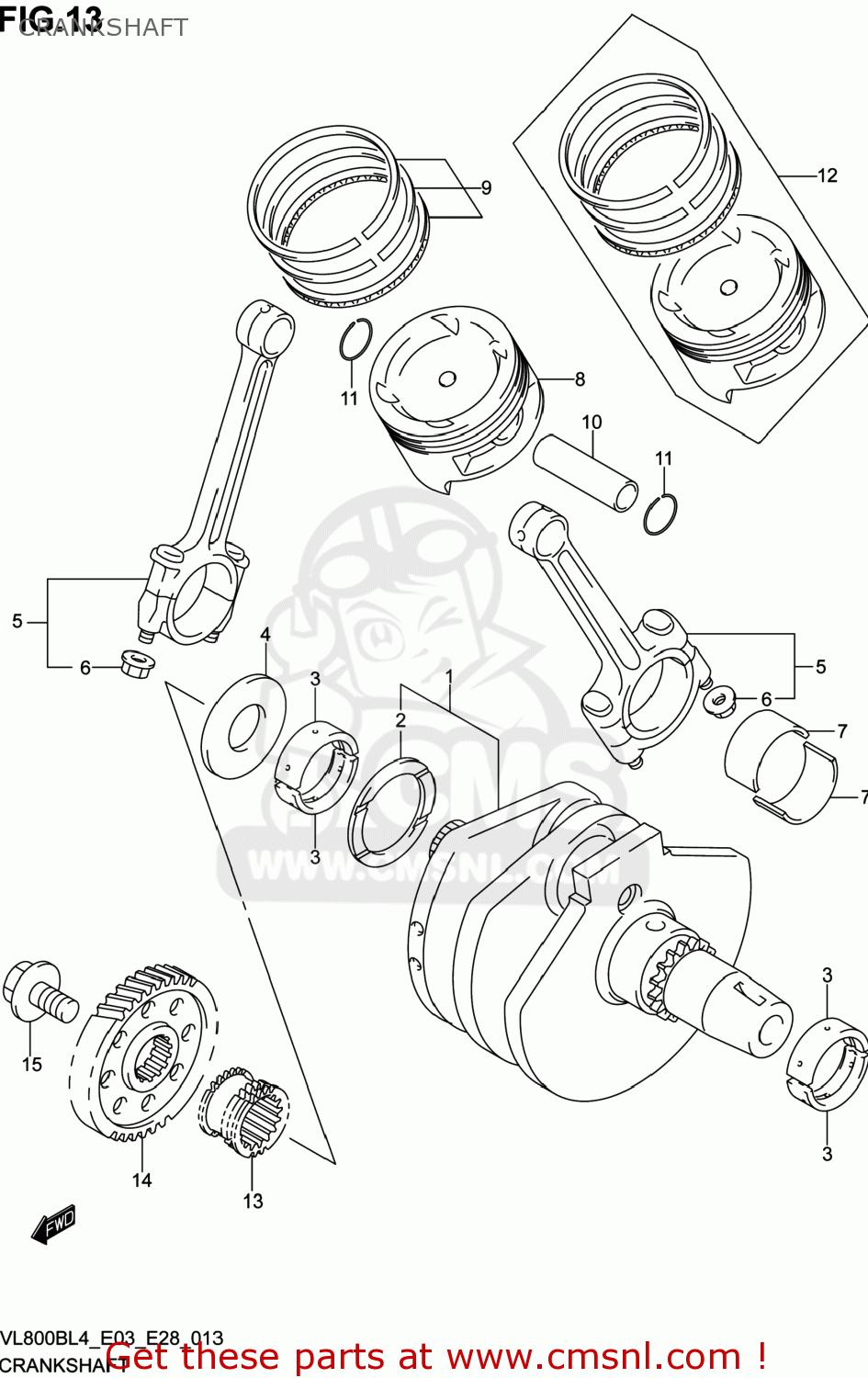

Crankshaft diagram VL800B VOLUSIA 2014 (L4) USA (E03)
CRANKSHAFT VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1200041830
ref: 1
CRANKSHAFT SET
€ 877.00
2-1
0916048001
ref: 2-1
WASHER(48.1X64X1.94)
€ 18.50
2-10
0916048010
ref: 2-10
WASHER(48.1X64X2.16)
€ 17.00
2-2
0916048002
ref: 2-2
WASHER(48.1X64X1.96)
€ 17.00
2-3
0916048003
ref: 2-3
WASHER(48.1X64X1.99)
€ 17.00
2-4
0916048004
ref: 2-4
WASHER(48.1X64X2.01)
€ 17.00
2-5
0916048005
ref: 2-5
WASHER(48.1X64X2.04)
€ 17.00
2-6
0916048006
ref: 2-6
WASHER(48.1X64X2.06)
€ 17.00
2-7
0916048007
ref: 2-7
WASHER(48.1X64X2.09)
€ 17.00
2-8
0916048008
ref: 2-8
WASHER(48.1X64X2.11)
€ 17.00
2-9
0916048009
ref: 2-9
WASHER(48.1X64X2.14)
€ 17.00
3-1
1222939G000A0
ref: 3-1
BEARING,CRANKSHAFT
€ 11.00
3-2
1222939G000B0
ref: 3-2
BEARING,CRANKSHAFT
€ 11.00
3-3
1222939G000C0
ref: 3-3
BEARING,CRANKSHAFT
€ 11.00
4
1265238A00
ref: 4
WASHER,CRANK THRUST
€ 47.00
5
1216045C30
ref: 5
CONNECTING ROD ASSY
€ 118.50
6
0915909001
ref: 6
NUT
€ 4.50
7-1
1216438E000A0
ref: 7-1
BEARING,CRANK PIN
€ 9.00
7-2
1216438E000B0
ref: 7-2
BEARING,CRANK PIN
€ 9.00
7-3
1216438E000C0
ref: 7-3
BEARING,CRANK PIN
€ 9.50
7-4
1216438E000D0
ref: 7-4
BEARING,CRANK PIN
€ 9.50
7-5
1216438E000E0
ref: 7-5
BEARING,CRANK PIN
€ 9.00
8
1211141F100F0
ref: 8
PISTON
€ 74.00
9
1214041F00
ref: 9
RING SET,PISTON
€ 45.50
10
1215124A00
ref: 10
PIN,PISTON
€ 18.50
11
0938120004
ref: 11
CIRCLIP,PISTON PIN
€ 2.00
12
1210041F10050
ref: 12
PISTON SET,OS 0.5
€ 114.50
13
1273138A00
ref: 13
SPROCKET,CAM CHAIN DRIVE,R
€ 34.00
13
1273138A00
ref: 13
SPROCKET,CAM CHAIN DRIVE,R
€ 34.00
14
2111138A00
ref: 14
GEAR,PRIMARY DRIVE
€ 99.50
15
0910312013
ref: 15
BOLT(12X28)
€ 6.00
