FUEL TANK (VL800BL4 E28)

VL800B VOLUSIA 2014 (L4) USA (E03)

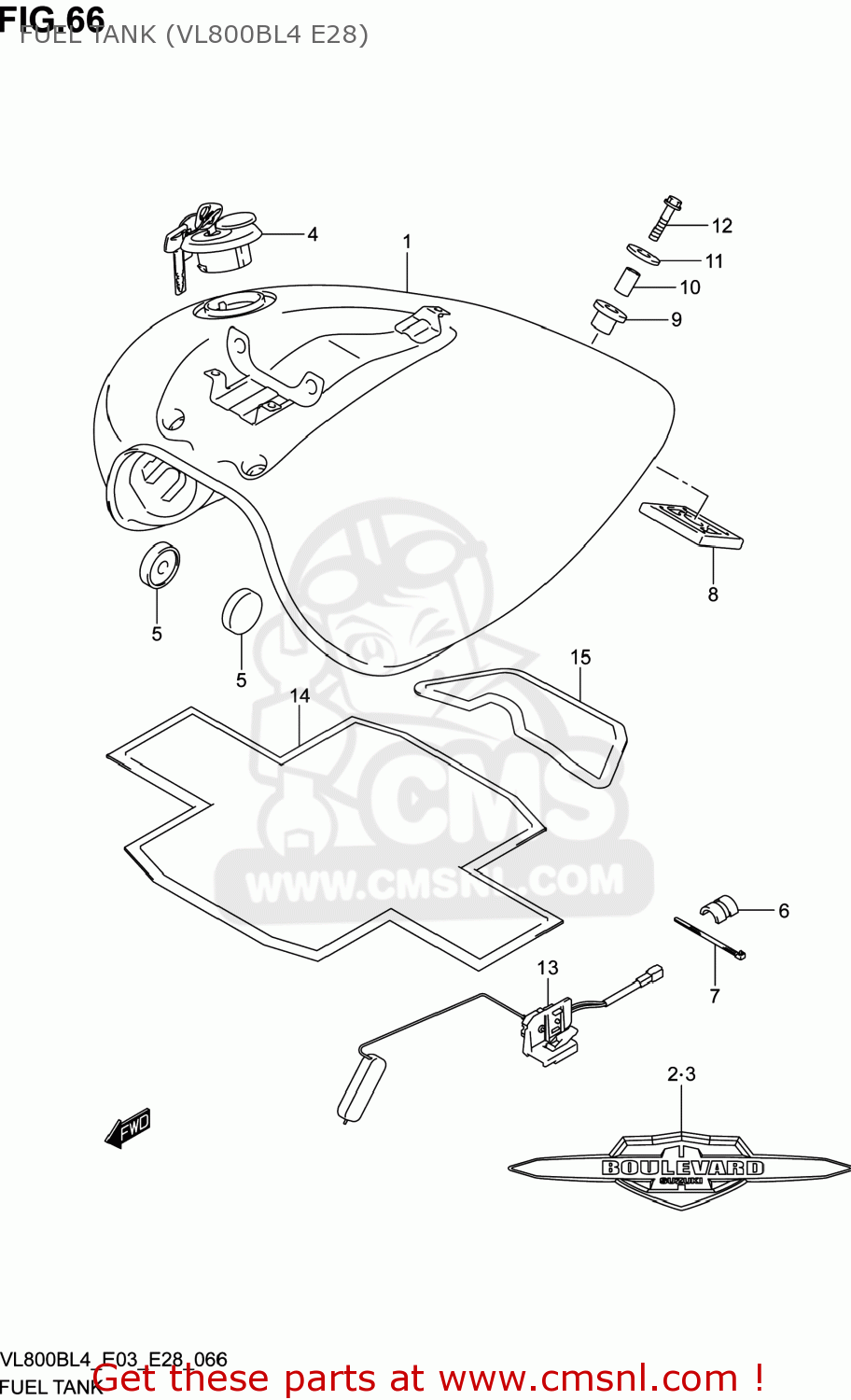

Fuel tank (vl800bl4 e28) diagram VL800B VOLUSIA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

4410043H00YVB
ref: 1

TANK ASSY,FUEL(BLACK)

€ 600.50

6811141F31
ref: 2

EMBLEM,FUEL TANK,R

€ 43.00

6812141F31
ref: 3

EMBLEM,FUEL TANK,L

€ 43.00

4420041830
ref: 4

CAP SET,FUEL TANK

€ 164.50

0932910007
ref: 5

CUSHION

€ 3.00

4454114F10
ref: 6

CUSHION,FUEL TANK LWR

€ 5.00

0940725402
ref: 7

CLAMP(L:250)

€ 4.50

4454241F00
ref: 8

CUSHION,FUEL TANK RR LWR

€ 8.00

4454141F01
ref: 9

CUSHION,FUEL TANK RR UPR

€ 6.50

0918008057
ref: 10

SPACER (8.2X12.5X23.5)

€ 2.00

0916008146
ref: 11

WASHER(8.5X33X1.5)

€ 3.00

015500835A
ref: 12

BOLT

€ 3.50

3481041F11
ref: 13

GAUGE ASSY,FUEL LEVEL SENDER

€ 81.50

4419239G00
ref: 14

SHIELD,FUEL TANK HEAT

€ 94.00

4419143H00
ref: 15

SHIELD,FUEL TANK HEAT NO.2

€ 51.50
