THROTTLE BODY (VL800BL4 E03)

VL800B VOLUSIA 2014 (L4) USA (E03)

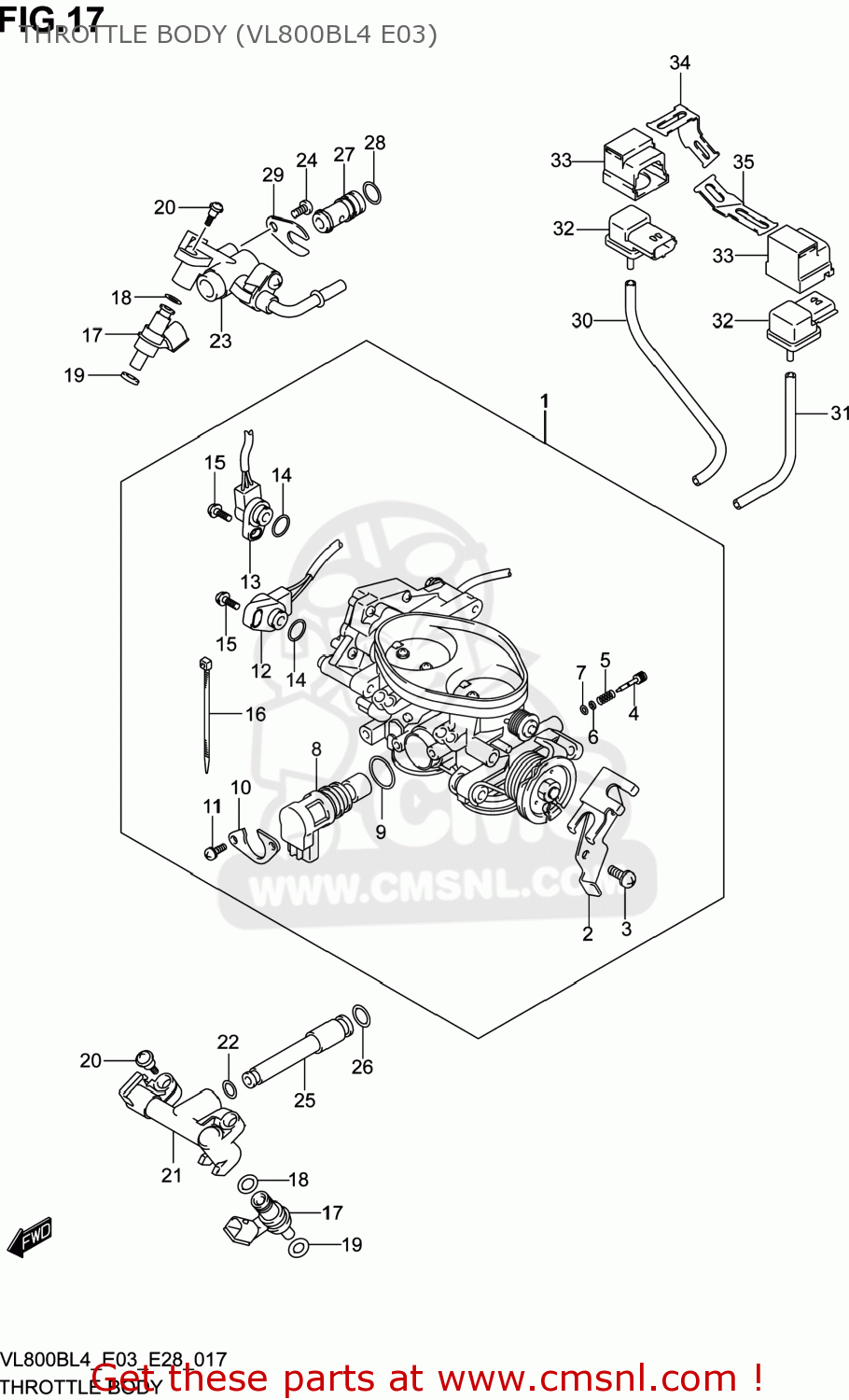

Throttle body (vl800bl4 e03) diagram VL800B VOLUSIA 2014 (L4) USA (E03)

THROTTLE BODY (VL800BL4 E03) VL800B VOLUSIA 2014 (L4) USA (E03)

THROTTLE BODY (VL800BL4 E03) VL800B VOLUSIA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1340141F22
ref: 1

BODY ASSY,THROTTLE

€ 960.00

2

1356541F20
ref: 2

PLATE,STAY

€ 75.00

3

1360121H00
ref: 3

SCREW

€ 2.50

4

1326918G00
ref: 4

SCREW,AIR ADJUST

€ 7.50

5

1327143E00
ref: 5

SPRING

€ 4.00

6

1329126E00
ref: 6

WASHER

€ 3.00

7

1329526E00
ref: 7

O RING

€ 4.50

8

1811715H12
ref: 8

VALVE ASSY,ISC

€ 233.00

9

1811905H00
ref: 9

O RING

€ 2.50

10

1342815H00
ref: 10

PLATE,ISC VALVE

€ 19.50

11

1360515H00
ref: 11

SCREW

€ 4.50

12

1358040F21
ref: 12

SENSOR ASSY,THROTTLE NO.1

€ 163.50

13

1358041F01
ref: 13

SENSOR ASSY,THROTTLE SUB

€ 158.50

14

1357540F00
ref: 14

O RING

€ 3.50

15

1360540F00
ref: 15

SCREW

€ 3.00

16

0940714407
ref: 16

CLAMP(L:145)

€ 4.00

17

1571026GA0
ref: 17

INJECTOR ASSY

€ 282.50

18

1572121H00
ref: 18

O RING

€ 7.00

19

1572221H00
ref: 19

RING,SEAL

€ 9.50

20

1360234F50
ref: 20

SCREW,THROTTLE COVER

€ 2.50

21

1347341FA0
ref: 21

PIPE SET,FUEL FR

€ 49.50

22

1572124F00
ref: 22

O RING

€ 7.50

23

1347341FB0
ref: 23

PIPE SET,FUEL RR

€ 63.50

24

1360210F10
ref: 24

SCREW

€ 2.50

25

1347341FC0
ref: 25

JOINT

€ 8.50

26

1572110G00
ref: 26

O RING

€ 7.00

27

1347441F20
ref: 27

PLUG,STRAIGHT

€ 4.00

28

1572141F20
ref: 28

O RING

€ 13.50

29

1347541F20
ref: 29

PLATE,STAY

€ 3.50

30

1368341FA0
ref: 30

HOSE

€ 15.00

31

1368341FD0
ref: 31

TUBE,RUBBER

€ 19.00

32

1859142F00
ref: 32

SENSOR,PRESSURE

€ 367.00

33

1859542F20
ref: 33

HOLDER,SENSOR

€ 15.00

34

1859841F00
ref: 34

BRACKET,BOOST SENSOR FR

€ 3.50

35

1859939G00
ref: 35

BRACKET,BOOST SENSOR RR

€ 3.50
