WATER PUMP
VL800B VOLUSIA 2014 (L4) USA (E03)

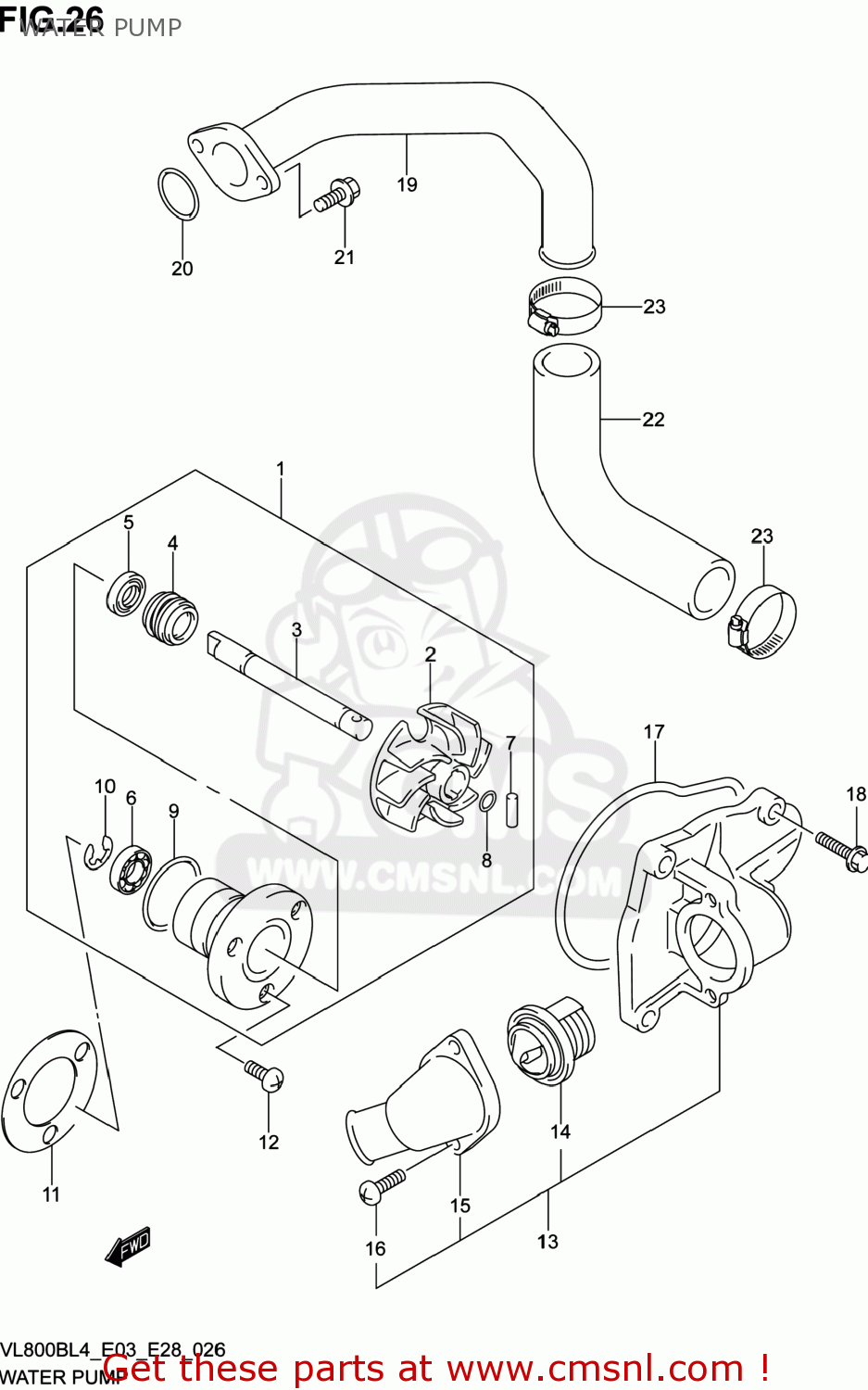

Water pump diagram VL800B VOLUSIA 2014 (L4) USA (E03)
WATER PUMP VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1740038A10
ref: 1
PUMP ASSY,WATER
€ 133.50
2
1749138A00
ref: 2
IMPELLER
€ 12.50
3
1751138A00
ref: 3
SHAFT
€ 30.50
4
1747002F10
ref: 4
SEAL,MECHANICAL
€ 21.50
5
0928310004
ref: 5
SEAL,OIL(10X21X5)
€ 4.50
6
0926210004
ref: 6
BEARING(10X22X6)
€ 20.50
7
1751638A00
ref: 7
PIN
€ 4.00
8
1751538A00
ref: 8
O RING
€ 1.50
9
1741738A00
ref: 9
O RING
€ 2.50
10
083321108A
ref: 10
E RING
€ 2.00
11
1743138A10
ref: 11
GASKET,WATER PUMP (NAS)
€ 5.00
12
021120612B
ref: 12
SCREW
€ 1.50
13
1741041F30
ref: 13
CAP ASSY,WATER PUMP
€ 100.50
14
1767033400
ref: 14
THERMOSTAT,WATER
€ 29.50
15
1741241F00
ref: 15
CONNECTOR
€ 30.00
16
021120616A
ref: 16
SCREW
€ 1.50
17
1743538A00
ref: 17
O RING,WATER PUMP CAP
€ 5.00
18
015470620A
ref: 18
BOLT
€ 2.50
19
1789041F00
ref: 19
PIPE,CYLINDER INLET
€ 29.00
20
0928024007
ref: 20
O RING(D:2.3,ID:24.4)
€ 2.00
21
015470616A
ref: 21
BOLT
€ 2.00
22
1785838A10
ref: 22
HOSE,WATER PUMP OUTLET
€ 10.00
23
0940232512
ref: 23
CLAMP
€ 9.00
