SECOND AIR
VL800B VOLUSIA 2014 (L4) USA (E03)

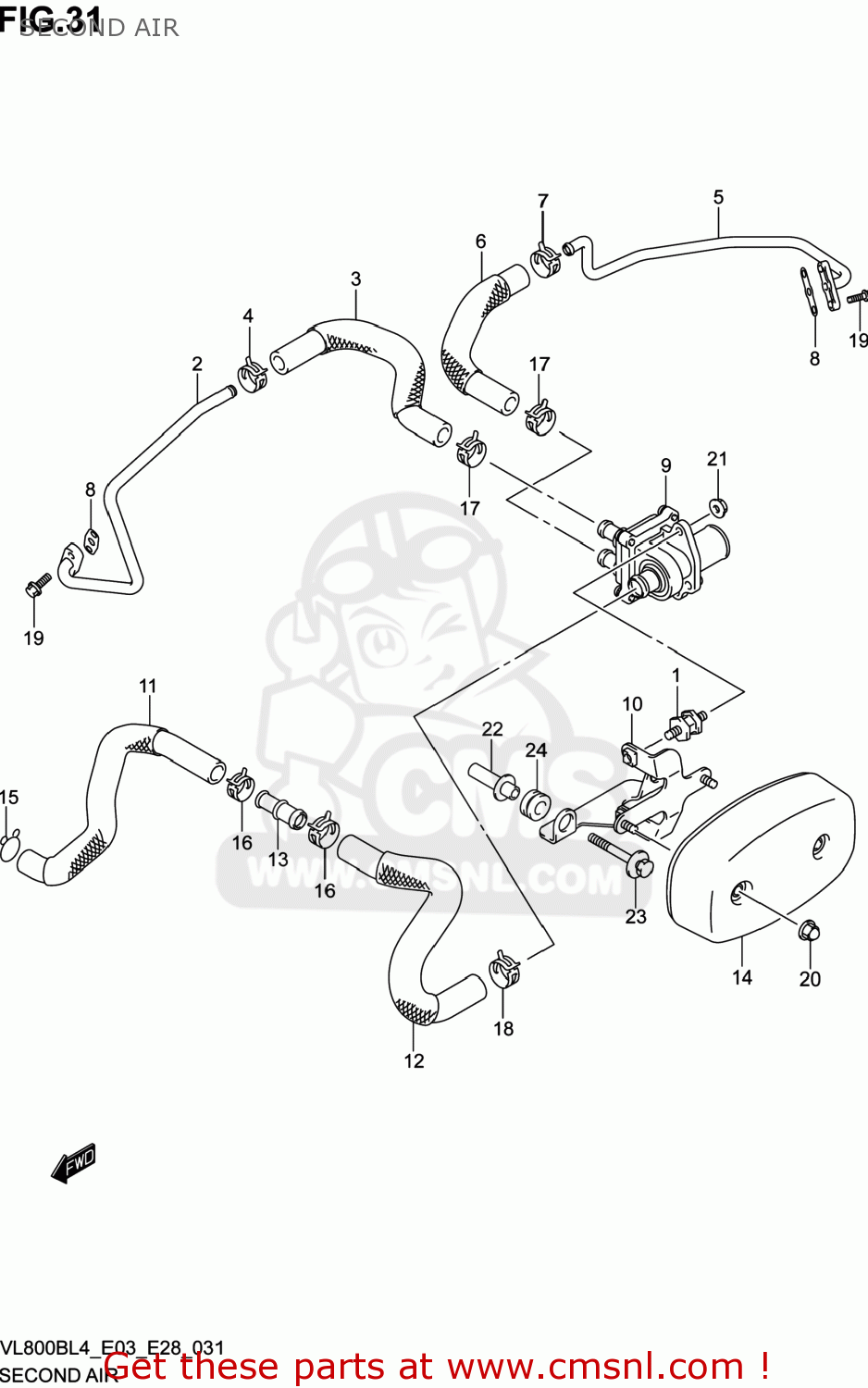

Second air diagram VL800B VOLUSIA 2014 (L4) USA (E03)
SECOND AIR VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1848739G00
ref: 1
BOLT,CUSHION
€ 10.00
2
1841041F30
ref: 2
PIPE,2ND AIR FR
€ 37.50
3
1846139G00
ref: 3
HOSE,2ND AIR VALVE FR
€ 63.50
4
0940115407
ref: 4
CLIP
€ 1.50
5
1842041F30
ref: 5
PIPE,2ND AIR RR
€ 37.00
6
1847139G00
ref: 6
HOSE,2ND AIR VALVE RR
€ 47.00
7
0940115407
ref: 7
CLIP
€ 1.50
8
1844145C01
ref: 8
GASKET,2ND AIR PIPE (NAS)
€ 6.00
9
1845039G01
ref: 9
VALVE ASSY,2ND AIR
€ 179.00
10
1861039G00
ref: 10
BRACKET,2ND AIR SPRT
€ 20.00
11
1871139G00
ref: 11
HOSE,2ND AIR CLEANER
€ 28.00
12
1871239G00
ref: 12
HOSE,2ND AIR CLEANER
€ 23.50
13
1871339G00
ref: 13
JOINT,2ND AIR CLEANER HOSE
€ 13.00
14
1878041F30
ref: 14
COVER,2ND AIR VALVE
€ 46.50
15
0940115101
ref: 15
CLIP
€ 2.00
16
0940116407
ref: 16
CLIP
€ 2.50
17
0940118406
ref: 17
CLIP
€ 2.50
18
0940120405
ref: 18
CLIP
€ 3.00
19
015470616A
ref: 19
BOLT
€ 2.00
20
083132006A
ref: 20
NUT
€ 2.00
21
083161006B
ref: 21
NUT
€ 2.50
22
1862041F00
ref: 22
SPACER,2ND AIR SPRT BRKT
€ 6.50
23
0911606183
ref: 23
BOLT(6X55)
€ 2.50
24
0932010015
ref: 24
CUSHION
€ 2.50
