CRANKCASE COVER (VL800BL4 E03)

VL800B VOLUSIA 2014 (L4) USA (E03)

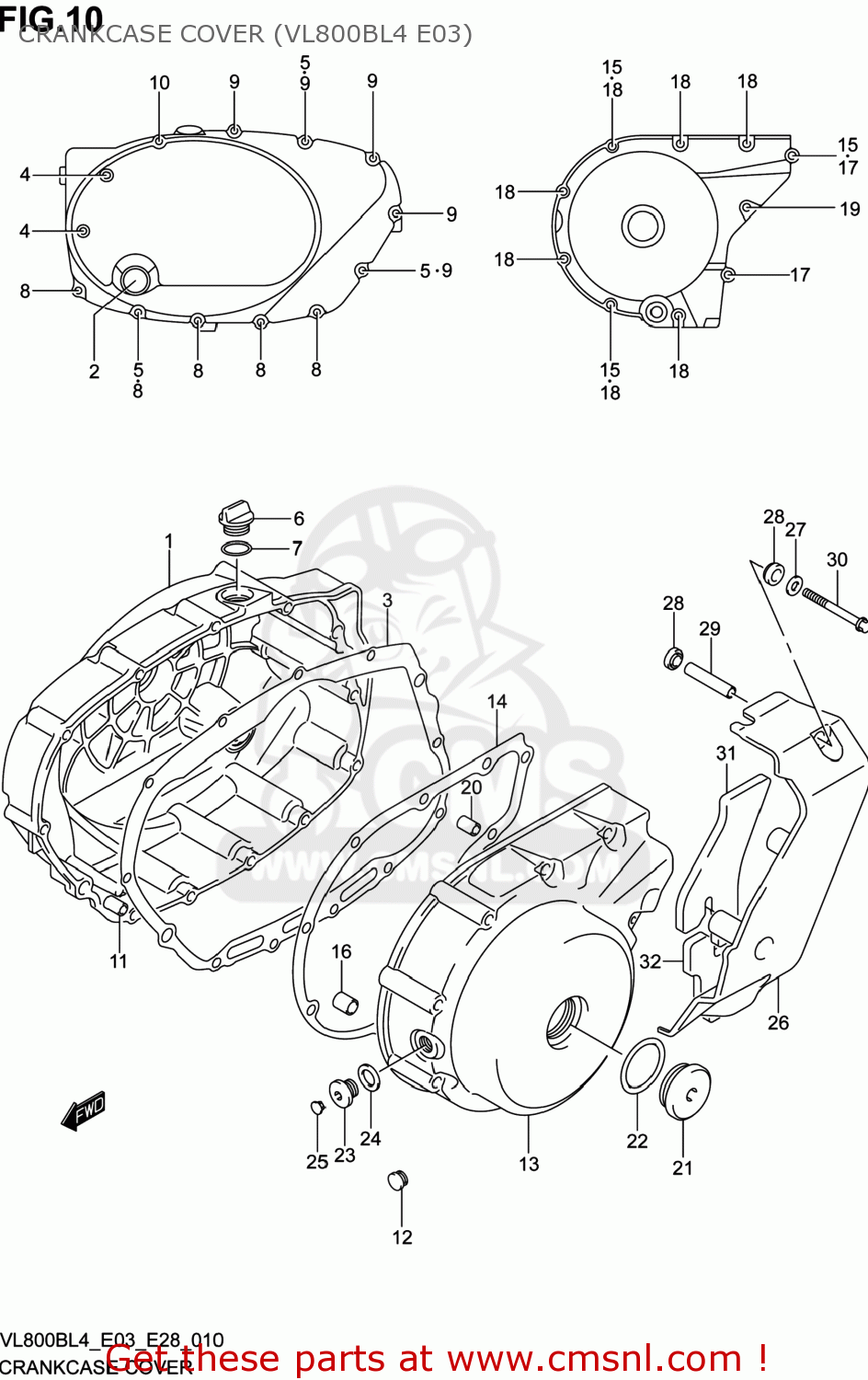

Crankcase cover (vl800bl4 e03) diagram VL800B VOLUSIA 2014 (L4) USA (E03)

CRANKCASE COVER (VL800BL4 E03) VL800B VOLUSIA 2014 (L4) USA (E03)

CRANKCASE COVER (VL800BL4 E03) VL800B VOLUSIA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1134039G00
ref: 1

COVER,CLUTCH

€ 339.00

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148241F00
ref: 3

GASKET,CLUTCH COVER (NAS)

€ 15.50

4

0910306270
ref: 4

BOLT(6X105)

€ 2.50

5

0916806023
ref: 5

GASKET(5.8X13X1.2) (NAS)

€ 2.00

6

1197125D00
ref: 6

PLUG,ENGINE OIL FILLER

€ 5.50

7

0928017003
ref: 7

O RING(D:3.1,ID:16.8)

€ 2.00

8

0910306213
ref: 8

BOLT(6X30)

€ 2.50

9

0910306238
ref: 9

BOLT(6X50)

€ 2.50

10

0910306226
ref: 10

BOLT(6X85)

€ 2.50

11

0421109189
ref: 11

PIN

€ 2.00

12

0925008013
ref: 12

CAP(OD:12)

€ 2.00

13

1135139G01
ref: 13

COVER,GENERATOR

€ 296.50

14

1148341F00
ref: 14

GASKET,GENERATOR COVER (NAS)

€ 11.50

15

0916806023
ref: 15

GASKET(5.8X13X1.2) (NAS)

€ 2.00

16

0920611007
ref: 16

PIN(8.4X11X20)

€ 1.50

17

0910306215
ref: 17

BOLT(6X40)

€ 2.00

18

0910306216
ref: 18

BOLT(6X55)

€ 2.50

19

0910306226
ref: 19

BOLT(6X85)

€ 2.50

20

0421109189
ref: 20

PIN

€ 2.00

21

0925936008
ref: 21

Chrome Crankshaft Plug

€ 8.50

22

0928033004
ref: 22

O RING(D:3.1,ID:32.7)

€ 2.50

23

0924814012
ref: 23

PLUG,14X12

€ 5.00

24

0916814002
ref: 24
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

25

0925008012
ref: 25

CAP(OD:12)

€ 2.00

26

1136139G00
ref: 26

COVER,SECONDARY DRIVE UNIT

€ 136.00

27

0916006125
ref: 27

WASHER(6.5X14X1.6)

€ 2.00

28

0916109005
ref: 28

WASHER(8.7X16X5)

€ 2.50

29

0918006280
ref: 29

SPACER(6.5X9X41.3)

€ 4.00

30

0910306216
ref: 30

BOLT(6X55)

€ 2.50

31

1136239G00
ref: 31

CUSHION,SEC DR UNIT COVER NO.1

€ 9.00

32

1136339G00
ref: 32

CUSHION,SEC DR UNIT COVER NO.2

€ 7.00
