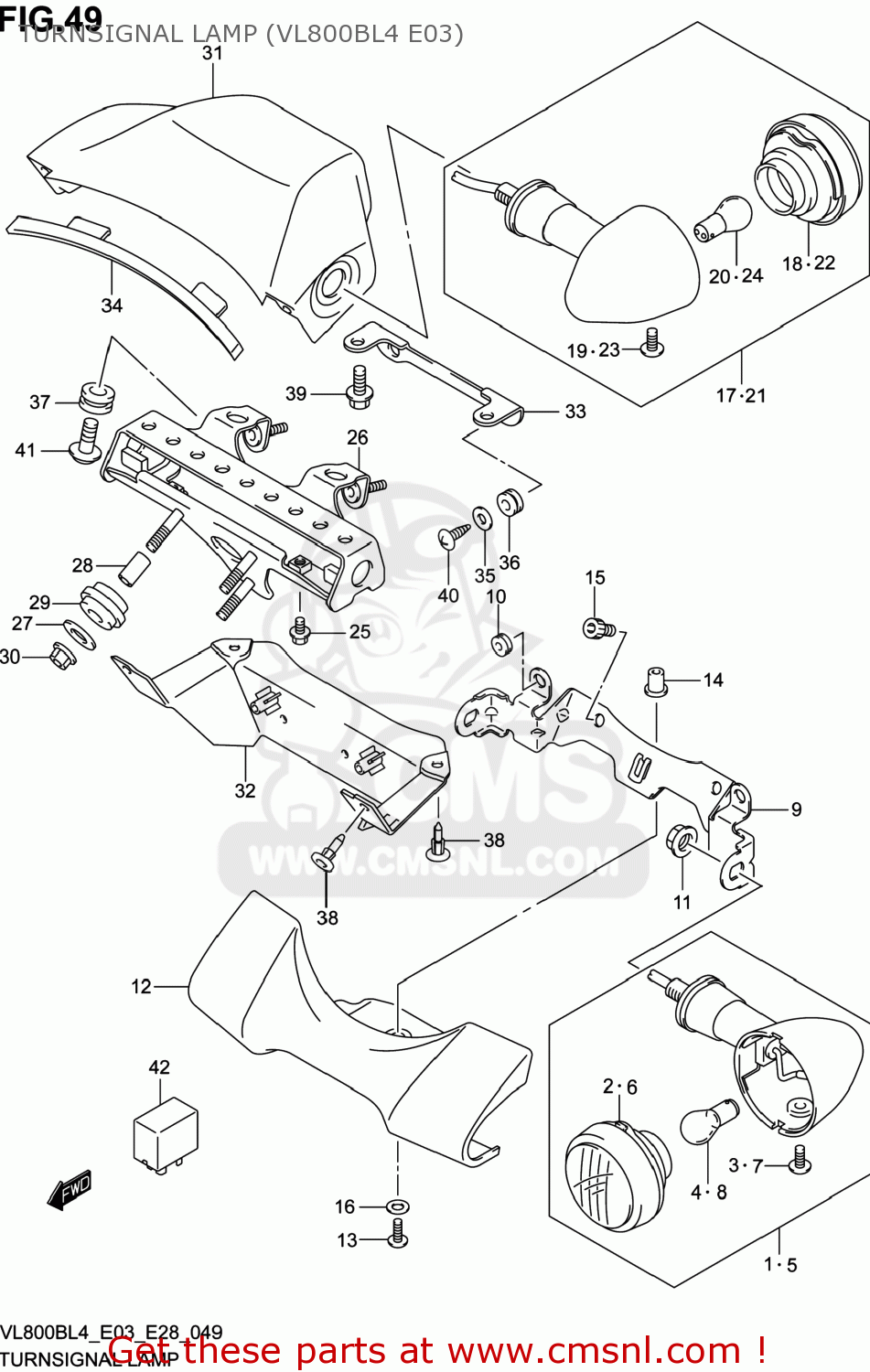

TURNSIGNAL LAMP (VL800BL4 E03)

ref

part #

description

quantity

1

3560141FC0
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 82.50

2

3561038AA0
ref: 2

LENS

€ 19.50

3

3562338AA0
ref: 3

SCREW(4X10)

€ 4.00

4

0947112083
ref: 4
09471-12128

BULB(12V21/5W)

€ 6.00

5

3560241FC0
ref: 5

LAMP ASSY,FR TURN SIGNAL,L

€ 75.50

6

3563038AA0
ref: 6

LENS

€ 19.50

7

3562338AA0
ref: 7

SCREW(4X10)

€ 4.00

8

0947112083
ref: 8
09471-12128

BULB(12V21/5W)

€ 6.00

9

3561641FA2
ref: 9

BRACKET

€ 50.00

10

0932006016
ref: 10

CUSHION

€ 4.50

11

083100010B
ref: 11

NUT

€ 2.00

12

3564141FB0
ref: 12

COVER,FRONT TURNSIGNAL

€ 70.00

13

0913905042
ref: 13

SCREW(5X16)

€ 2.50

14

0915905019
ref: 14

NUT

€ 5.50

15

071300812B
ref: 15

BOLT

€ 3.00

16

0916005048
ref: 16

WASHER(5.5X14X1.2)

€ 2.00

17

3560338AH0
ref: 17

LAMP ASSY,RR TURNSIGNAL,R

€ 68.50

18

3561038AH0
ref: 18

LENS

€ 19.50

19

3562338AA0
ref: 19

SCREW(4X10)

€ 4.00

20

0947112045
ref: 20

BULB(12V21W)

€ 5.00

21

3560438AH0
ref: 21

LAMP ASSY,RR TURNSIGNAL,L

€ 68.50

22

3563038AH0
ref: 22

LENS

€ 19.50

23

3562338AA0
ref: 23

SCREW(4X10)

€ 4.00

24

0947112045
ref: 24

BULB(12V21W)

€ 5.00

25

0910306507
ref: 25

BOLT(6X14)

€ 2.50

26

3562043H01
ref: 26

BRACKET,RR TURNSIGNAL

€ 28.50

27

0916006077
ref: 27

WASHER(6.5X20X1.2)

€ 2.00

28

0918006195
ref: 28

SPACER(6.4X10X18)

€ 3.50

29

0932010504
ref: 29

CUSHION

€ 3.50

30

083161006A
ref: 30

NUT

€ 2.50

31

3562143HB0
ref: 31

COVER,REAR TURNSIGNAL UPPER

€ 71.00

32

3562206J00
ref: 32

COVER,RR TURNSIGNAL LWR

€ 24.00

33

3562343H00
ref: 33

BRACKET,RR TURNSIGNAL COVER

€ 5.50

34

3565743H00
ref: 34

GASKET,RR TURNSIGNAL COVER (NAS)

€ 7.50

35

0916004022
ref: 35

WASHER(4.3X14X0.8)

€ 1.50

36

0932006016
ref: 36

CUSHION

€ 4.50

37

0932008066
ref: 37

CUSHION

€ 7.50

38

09409063225PK
ref: 38

CLIP(BLACK)

€ 3.00

39

015500612A
ref: 39

BOLT

€ 2.50

40

035410412A
ref: 40

SCREW

€ 2.00

41

035410510A
ref: 41

SCREW

€ 1.50

42

3861003F00
ref: 42

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50
