ELECTRICAL (VL800BL4 E03)

VL800B VOLUSIA 2014 (L4) USA (E03)

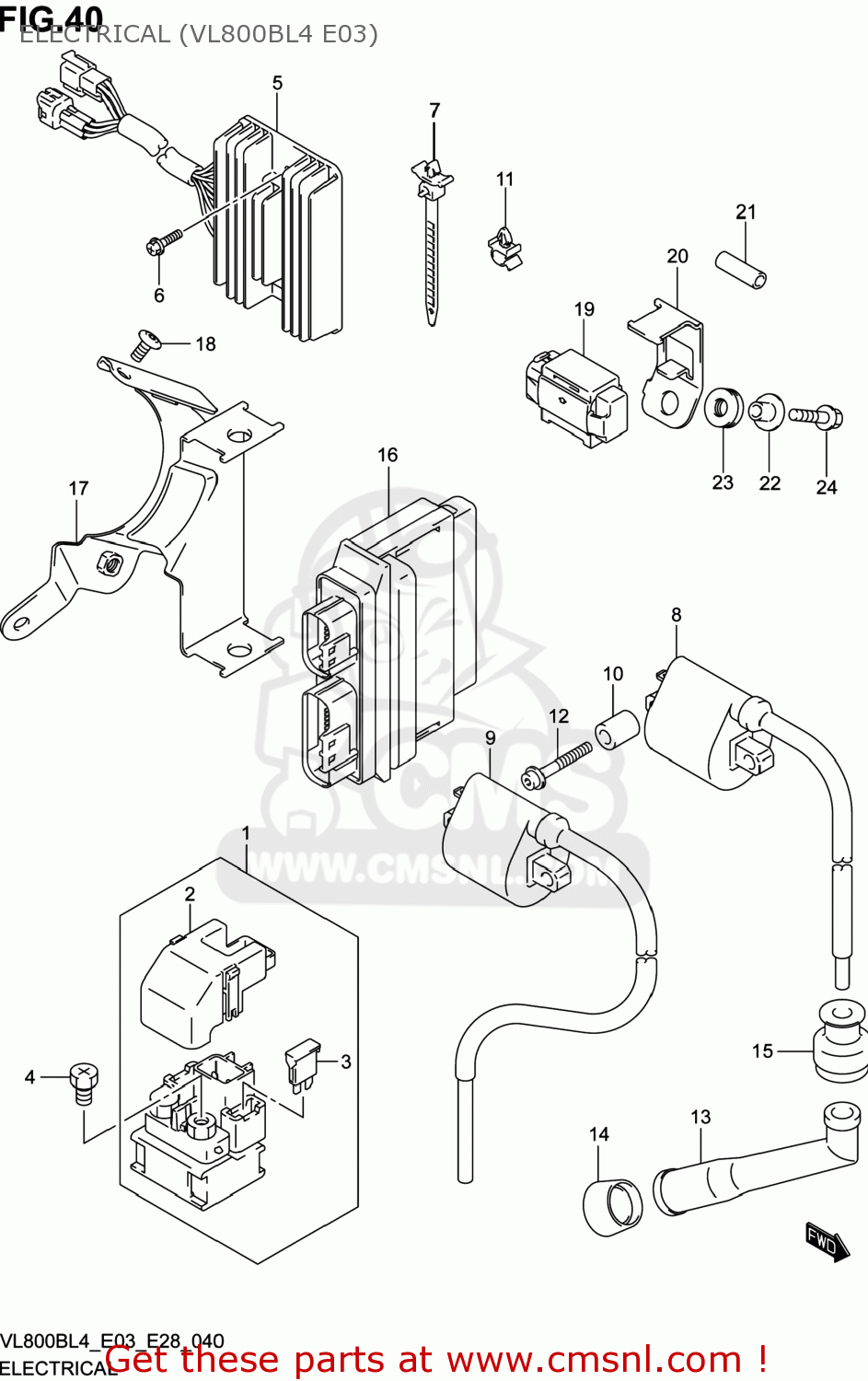

Electrical (vl800bl4 e03) diagram VL800B VOLUSIA 2014 (L4) USA (E03)

ELECTRICAL (VL800BL4 E03) VL800B VOLUSIA 2014 (L4) USA (E03)
ELECTRICAL (VL800BL4 E03) VL800B VOLUSIA 2014 (L4) USA (E03)
ELECTRICAL (VL800BL4 E03) VL800B VOLUSIA 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3180021E20
ref: 1
RELAY ASSY,STARTING MOTOR
3180021E20
€ 69.00
2
3186147E00
ref: 2
COVER
3186147E00
€ 10.50
3
0948130101
ref: 3
FUSE(30A)
0948130101
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
0912806013
€ 1.50
5
3280047H00
ref: 5
RECTIFIER ASSY
3280047H00
€ 268.50
6
021620620B
ref: 6
SCREW
€ 2.00
7
0940711402
ref: 7
CLAMP(L:90)
0940711402
€ 2.50
8
3341017G00
ref: 8
COIL ASSY,IGNITION
3341017G00
€ 86.50
9
3342041F10
ref: 9
COIL ASSY,IGNITION
€ 74.00
10
0918006195
ref: 10
SPACER(6.4X10X18)
0918006195
€ 3.50
11
0940307308
ref: 11
CLAMP
0940307308
€ 1.50
12
0910605033
ref: 12
BOLT(5X35)
€ 2.50
13
3351011410
ref: 13
CAP,SPARK PLUG
3351011410
€ 24.50
14
3354147D00
ref: 14
SEAL,SPARK PLUG
3354147D00
€ 7.00
15
3354238B00
ref: 15
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
16
3292039GH0
ref: 16
CONTROL UNIT,FI
€ 868.00
17
4488043H00
ref: 17
BRACKET,FI CONTROL UNIT
€ 18.00
18
0913906108
ref: 18
SCREW(6X12)
€ 3.00
19
3396006G10
ref: 19
SENSOR ASSY,FUEL CUT
3396006G10
€ 75.00
20
3396141F00
ref: 20
BRACKET,FUEL CUT SENSOR
€ 4.00
21
0935250823600
ref: 21
44420-44AR0
HOSE(5X8.2X600)
0935250823600
€ 13.00
22
0918006325
ref: 22
SPACER(6.2X8.4X6.9)
0918006325
€ 3.00
23
0932006017
ref: 23
CUSHION
0932006017
€ 3.00
24
015470616A
ref: 24
BOLT
015470616A
€ 2.00
