BATTERY
VL800B VOLUSIA 2014 (L4) USA (E03)

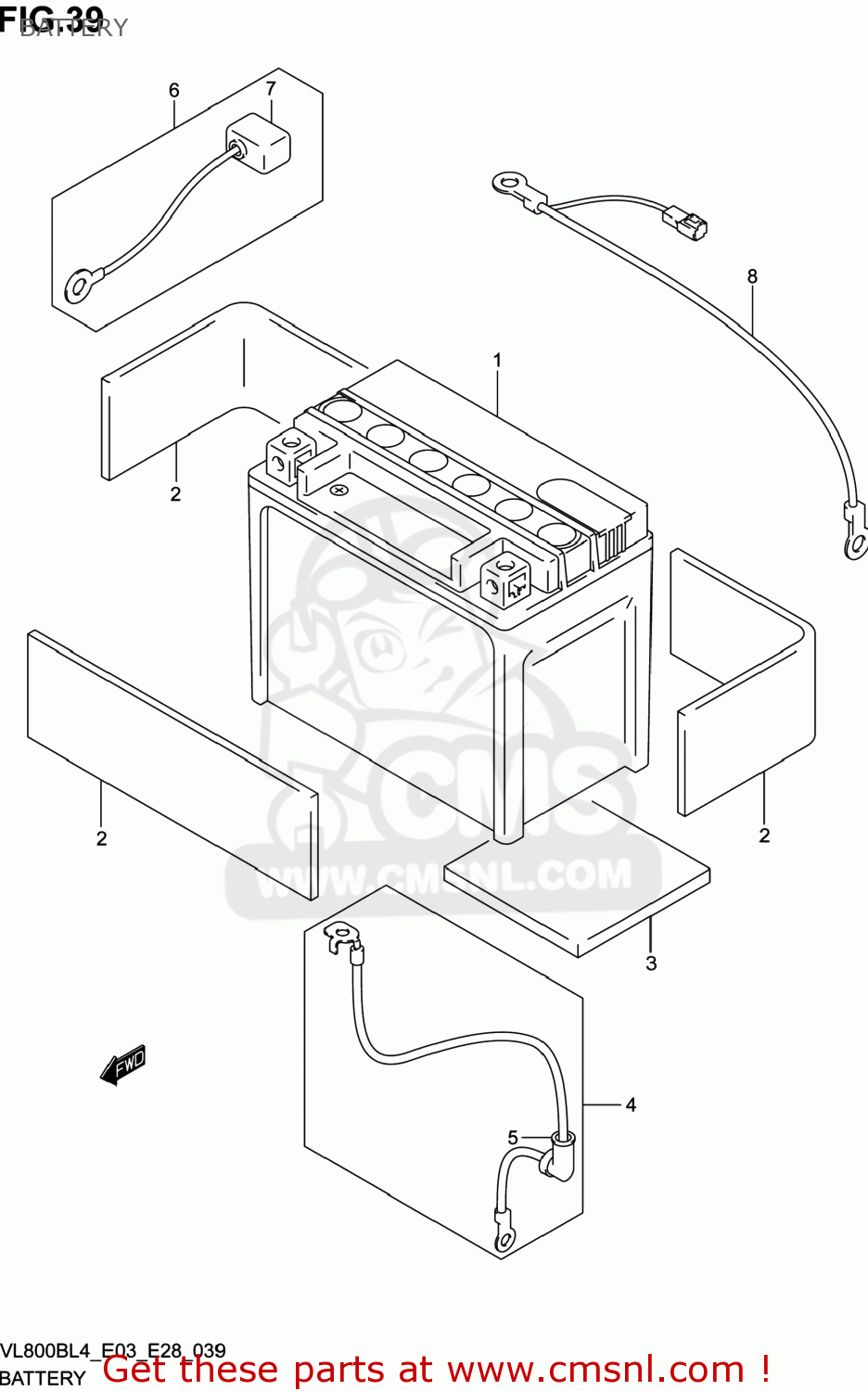

Battery diagram VL800B VOLUSIA 2014 (L4) USA (E03)
BATTERY VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3361048E21
ref: 1
BATTERY(FTX12-BS,12V10.5AH)
€ 97.50
2
3365137000
ref: 2
PROTECTOR(170X95X3.0)
€ 5.00
2
3365137000
ref: 2
PROTECTOR(170X95X3.0)
€ 5.00
3
3365220C00
ref: 3
PROTECTOR(50X50X5)
€ 2.50
4
3381041F00
ref: 4
WIRE,STARTER MOTOR LEAD
€ 17.50
5
3186148B10
ref: 5
CAP,STARTER MOTOR LEAD
€ 4.50
6
3382048E00
ref: 6
WIRE,BATTERY PLUS LEAD
€ 13.00
7
3362416E00
ref: 7
CAP,BATTERY PLUS
€ 4.00
8
3386041F00
ref: 8
WIRE,BATTERY MINUS
€ 14.50
