REAR FENDER
VL800B VOLUSIA 2014 (L4) USA (E03)

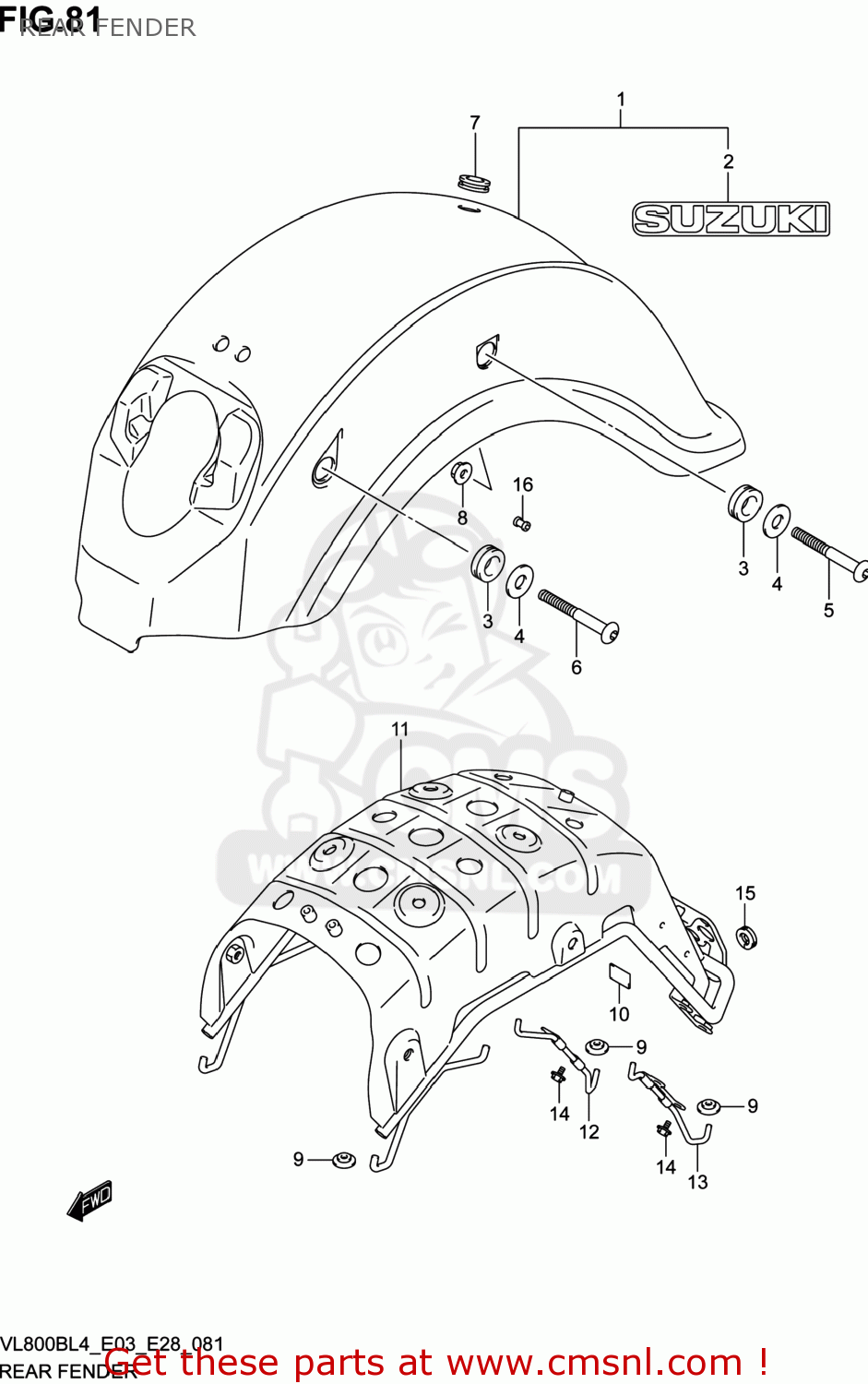

Rear fender diagram VL800B VOLUSIA 2014 (L4) USA (E03)
REAR FENDER VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6311043H006UX
ref: 1
FENDER,REAR
€ 300.50
2
6827134A00YJH
ref: 2
EMBLEM,SUZUKI
€ 8.50
3
4719124F00
ref: 3
CUSHION,FRAME COVER UPR RR
€ 3.00
4
0916015002
ref: 4
WASHER(15.5X26X2.3)
€ 2.00
5
6316141F00
ref: 5
BOLT,RR FENDER
€ 5.00
6
6316141F10
ref: 6
BOLT,REAR FENDER FR
€ 9.50
7
0932015008
ref: 7
CUSHION
€ 3.50
8
083161008B
ref: 8
NUT
€ 3.00
9
0932006026
ref: 9
CUSHION
€ 3.00
10
5314517C11
ref: 10
CUSHION,FR FENDER
€ 5.00
11
6313043H00
ref: 11
REINF,RR FENDER
€ 209.50
12
6315043H00
ref: 12
BRACKET,RR FENDER LWR,R
€ 27.50
13
6316043H00
ref: 13
BRACKET,RR FENDER LWR,L
€ 27.50
14
015500610B
ref: 14
BOLT
€ 2.50
15
0930810017
ref: 15
GROMMET
€ 3.50
16
0925007004
ref: 16
PLUG(OD:9)
€ 2.00
