prices are in EUR
ref
part #
description
quantity

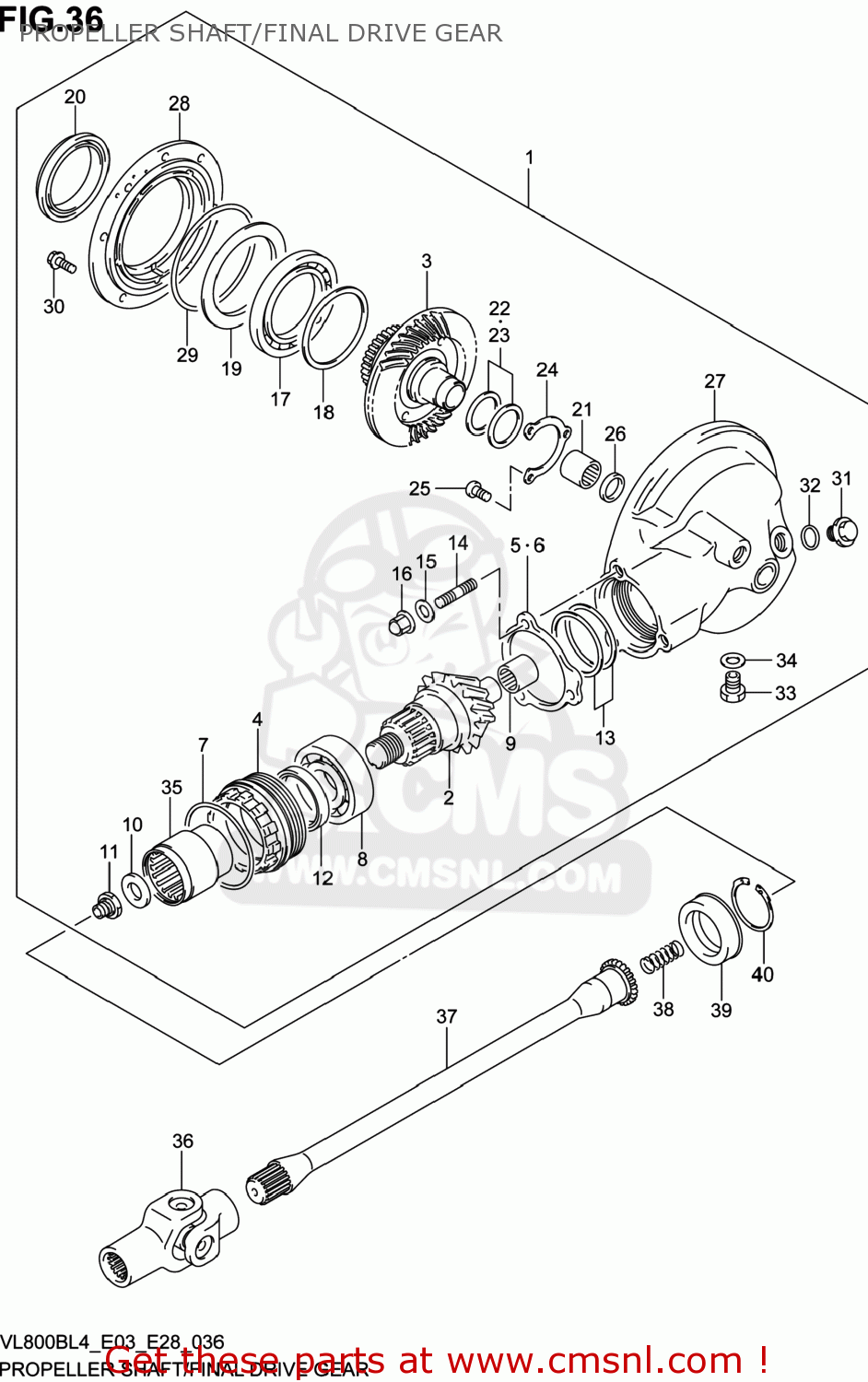

1
GEAR & CASE SET,FINAL BEVEL
1
GEAR & CASE SET,FINAL BEVEL
2
GEAR,FINAL DRIVE BEVEL(NT:11)
2
GEAR,FINAL DRIVE BEVEL(NT:11)
3
GEAR,FINAL DRIVEN BEVEL(NT:34)
3
GEAR,FINAL DRIVEN BEVEL(NT:34)
4
STOPPER,FINAL DRIVE BEARING
5
PLATE,BEARING STOPPER
6
PLATE,BEARING STOPPER
7
O RING(D:1.9,ID:61.6)
9
BEARING(17X32X16)
10
WASHER(16X29X4)
11
NUT
12
SEAL,OIL(38X54X6)
13
SHIM SET,FINAL DRIVE GEAR
14
BOLT,STUD
15
WASHER
16
NUT
17
BEARING(70X110X13)
18
SHIM SET,DRIVEN GEAR BEARING
19
PLATE,FINAL DRIVEN BRG OIL
20
SEAL,OIL(70X96X16)
21
BEARING(32X46X17.7)
22
SHIM SET,FINAL DRIVEN GEAR
23
SHIM SET,FINAL DRIVE GEAR
24
RETAINER,FINAL DRIVEN GEAR BRG
25
SCREW(6X12)
26
SEAL,OIL(30X42X7)
28
CASE,FINAL GEAR BEARING
29
O RING(D:3.5,ID:131.6)
30
BOLT
31
PLUG
32
O RING(D:2.4,ID:17.8)
33
PLUG(MAGNETO)
34
GASKET(13.8X18.8X4.8) (NAS)
35
COUPLING,FINAL DRIVE GEAR
36
YOKE,UNIVERSAL JOINT
37
SHAFT,PROPELLER
38
SPRING
39
SEAL,OIL(28.4X48X15)
40
CIRCLIP
