STARTER CLUTCH
VL800B VOLUSIA 2014 (L4) USA (E03)

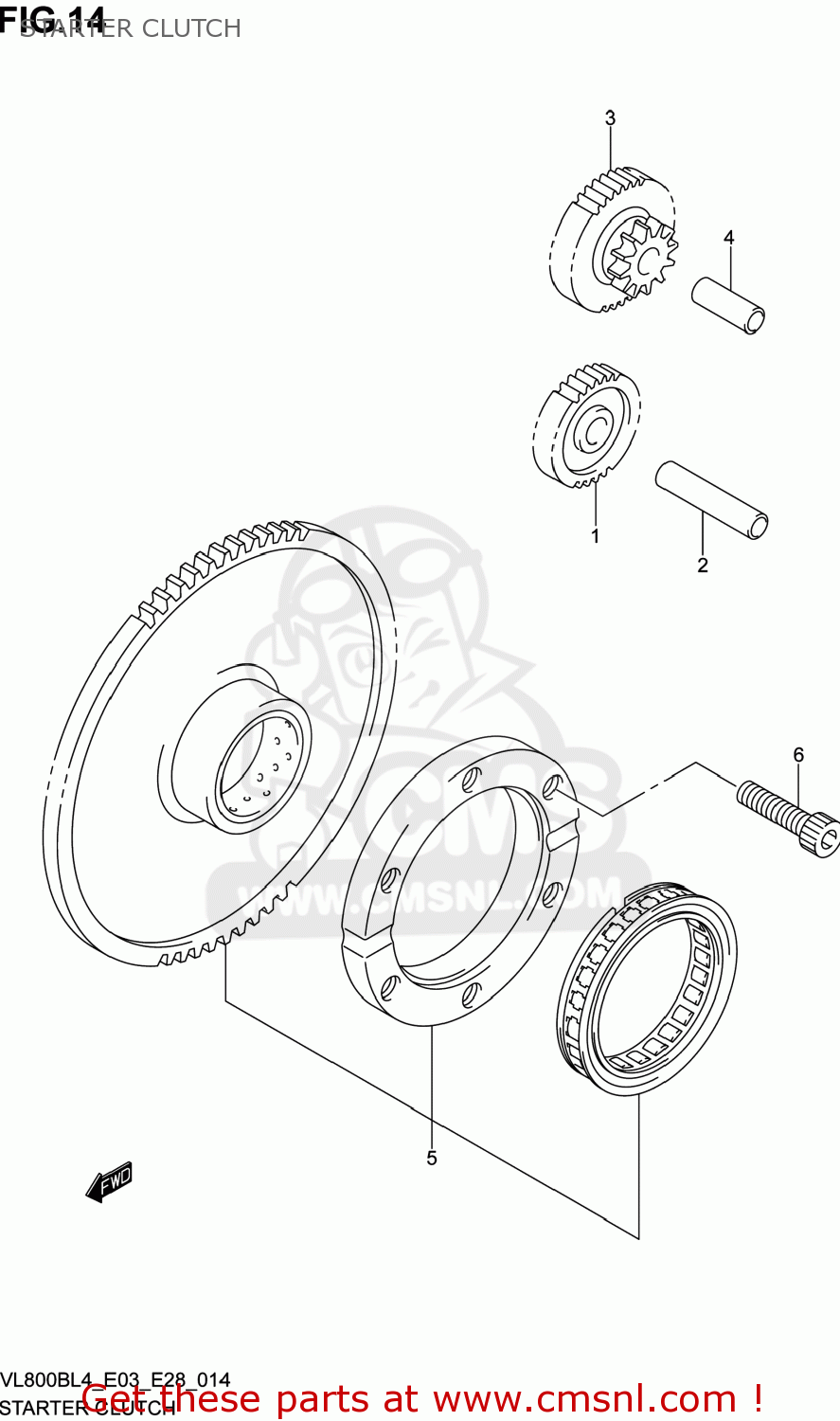

Starter clutch diagram VL800B VOLUSIA 2014 (L4) USA (E03)
STARTER CLUTCH VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1261138A01
ref: 1
GEAR,STARTER IDLE NO.1
€ 57.50
1
1261138A01
ref: 1
GEAR,STARTER IDLE NO.1
€ 57.50
2
0920210008
ref: 2
PIN,10X43
€ 9.00
3
1261138A11
ref: 3
GEAR,STARTER IDLE NO.2
€ 39.50
3
1261138A11
ref: 3
GEAR,STARTER IDLE NO.2
€ 39.50
4
0920210006
ref: 4
PIN
€ 6.50
5
1260041851
ref: 5
CLUTCH SET,STARTER
€ 212.50
5
1260041851
ref: 5
CLUTCH SET,STARTER
€ 212.50
6
0910608105
ref: 6
BOLT(8X30)
€ 3.00
