FRAME (VL800BL4 E33)
VL800B VOLUSIA 2014 (L4) USA (E03)

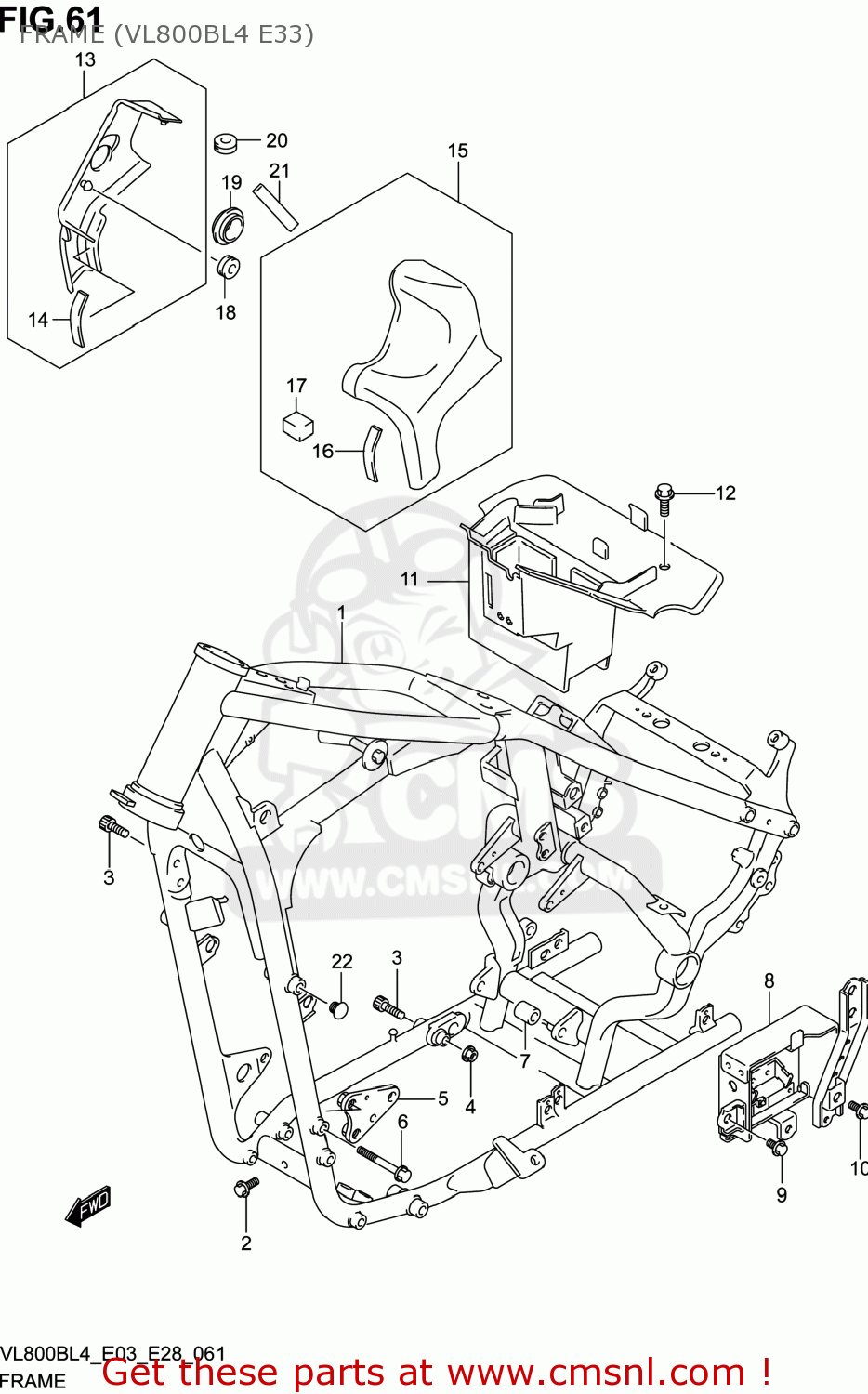

Frame (vl800bl4 e33) diagram VL800B VOLUSIA 2014 (L4) USA (E03)
FRAME (VL800BL4 E33) VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110041F80019
ref: 1
FRAME(BLACK)
€ 2,239.00
2
015500816B
ref: 2
BOLT
€ 3.00
3
071301035B
ref: 3
BOLT
€ 3.50
4
083193110B
ref: 4
NUT
€ 3.00
5
4192041F00
ref: 5
PLATE,ENGINE MOUNT NO.1,L
€ 16.50
6
0911208013
ref: 6
BOLT(8X65)
€ 3.50
7
4194141F00
ref: 7
SPACER,ENG MTG LR
€ 8.00
8
4154041F30
ref: 8
HOLDER,ELECTRIC PARTS
€ 42.00
9
015470612A
ref: 9
BOLT
€ 2.00
10
015500816A
ref: 10
BOLT
€ 2.50
11
4741041F02
ref: 11
HOLDER,ELECTRIC PARTS
€ 57.00
12
0911306001
ref: 12
BOLT(6X16)
€ 3.00
13
4735041F10019
ref: 13
COVER,FRAME HEAD,R(BLACK)
€ 59.50
14
5314540A00
ref: 14
CUSHION,FR FENDER
€ 1.50
15
4736041F12019
ref: 15
COVER,FRAME HEAD,L(BLACK)
€ 69.00
16
5314540A00
ref: 16
CUSHION,FR FENDER
€ 1.50
17
5314605G00
ref: 17
CUSHION,FR FENDER SIDE
€ 3.00
18
0932008018
ref: 18
CUSHION
€ 4.00
19
4735541F01
ref: 19
CAP
€ 3.00
20
0932009501
ref: 20
CUSHION
€ 2.00
21
1779839G00
ref: 21
CUSHION,RADIATOR COVER INNER
€ 5.50
22
0925009001
ref: 22
CAP(OD:14)
€ 1.00
