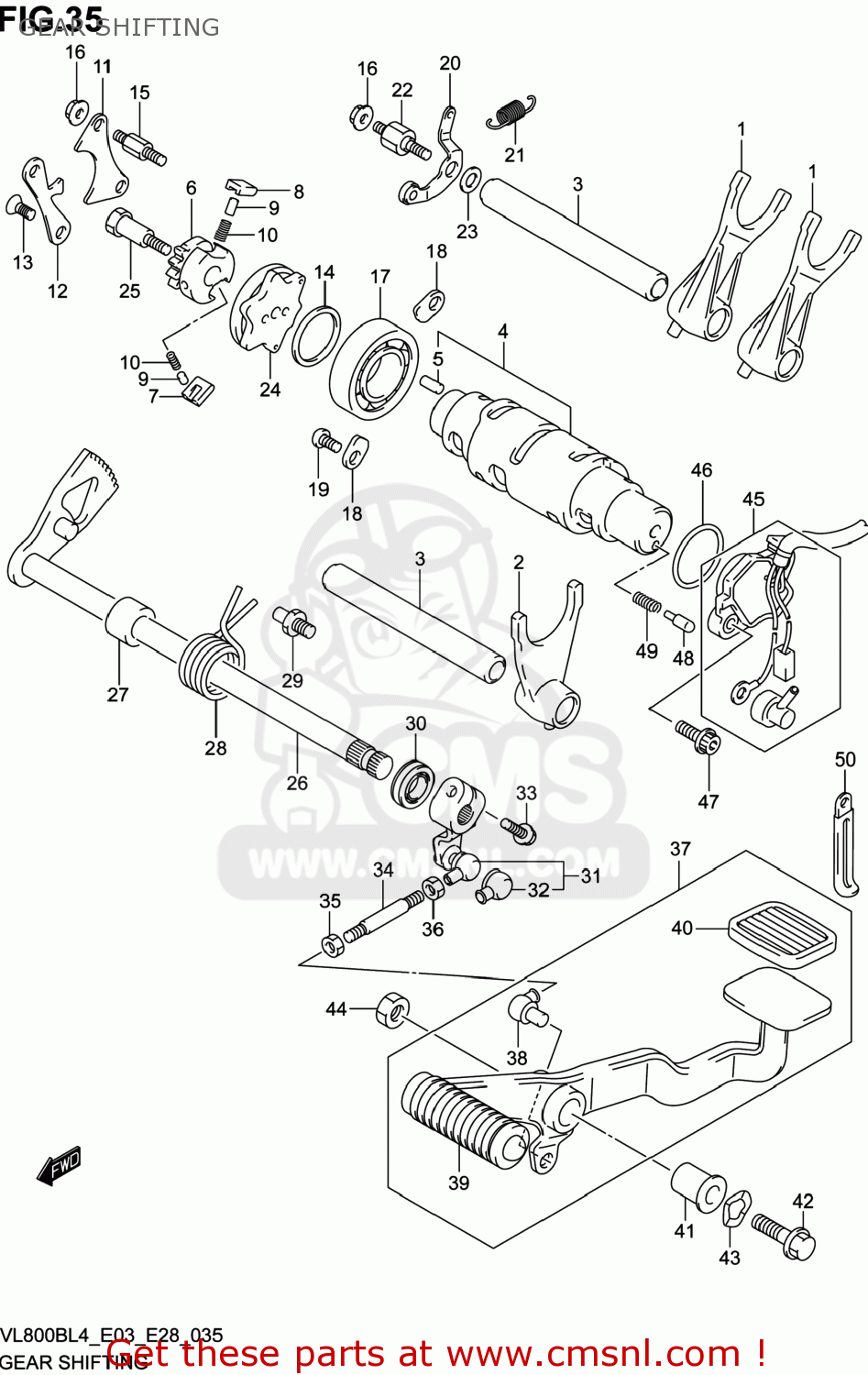

GEAR SHIFTING

ref

part #

description

quantity

1

2521138A10
ref: 1

FORK,GEAR SHIFT NO.1

€ 58.50

2

2522138A10
ref: 2

FORK,GEAR SHIFT NO.2

€ 58.50

3

2541138A00
ref: 3

SHAFT,GEAR SHIFT FORK(L:115)

€ 17.00

4

2531041F00
ref: 4

CAM,GEAR SHIFT

€ 138.50

5

0422104089
ref: 5

PIN

€ 1.50

6

2532231310
ref: 6

GEAR,GEAR SHIFT CAM DRIVEN

€ 14.50

7

2532334201
ref: 7

PAWL,GEAR SHIFT NO.1

€ 6.00

8

2532434201
ref: 8

PAWL,GEAR SHIFT NO.2

€ 6.00

9

0926105003
ref: 9

PIN(5X8)

€ 1.50

10

0944004003
ref: 10

SPRING

€ 1.50

11

2533138A00
ref: 11

LIFTER,GEAR SHIFT POLE

€ 4.50

12

2534138A00
ref: 12

GUIDE,GEAR SHIFT CAM

€ 6.00

13

0912606011
ref: 13

SCREW(6X12)

€ 2.00

14

0916025059
ref: 14

WASHER(25X32X3)

€ 5.00

15

2533238A10
ref: 15

BOSS,SHIFT POLE LIFTER

€ 3.50

16

083161006A
ref: 16

NUT

€ 2.50

17

0926225006
ref: 17

BEARING(25X47X8)

€ 24.00

18

2474121A00
ref: 18

RETAINER

€ 2.00

19

0912506122
ref: 19

SCREW(6X12)

€ 1.50

20

2535038A00
ref: 20

STOPPER,GEAR SHIFT CAM

€ 9.00

21

0944309027
ref: 21

SPRING

€ 2.50

22

2535538A10
ref: 22

SUPPORT,CAM STOPPER ARM

€ 5.50

23

0821106141
ref: 23

WASHER

€ 2.50

24

2538038A02
ref: 24

PLATE,GEAR SHIFT CAM

€ 15.00

25

2531238A00
ref: 25

PIN,SHIFT CAM DRIVEN GEAR

€ 4.00

26

2551038A00
ref: 26

SHAFT,GEAR SHIFT

€ 66.50

27

0918012068
ref: 27

SPACER(12X20X15.3)

€ 3.00

28

0944426013
ref: 28

SPRING

€ 3.50

29

2567101011
ref: 29

STOPPER,GEAR SHIFT ARM

€ 3.00

30

0928512006
ref: 30

SEAL,OIL (12X22X9)

€ 7.00

31

2552038B00
ref: 31

ARM,GEAR SHIFT LINK

€ 39.50

32

2552647000
ref: 32

COVER,DUST

€ 3.50

33

015470620A
ref: 33

BOLT

€ 2.50

34

2552541F00
ref: 34

ROD,GEAR SHIFT LINK

€ 6.00

35

0914006011
ref: 35

NUT

€ 1.50

36

0831000067
ref: 36

NUT

€ 2.50

37

2560041F20
ref: 37

LEVER ASSY,GEAR SHIFT

€ 84.00

38

2552647000
ref: 38

COVER,DUST

€ 3.50

39

2565210F00
ref: 39

RUBBER

€ 8.00

40

4315101400
ref: 40

RUBBER,BRAKE PEDAL

€ 4.00

41

2561741F00
ref: 41

SPACER,GEAR SHIFT LEVER

€ 13.00

42

0910310300
ref: 42

BOLT(10X40)

€ 5.50

43

0916418009
ref: 43

WASHER

€ 1.50

44

083100010B
ref: 44

NUT

€ 2.00

45

3773041F02
ref: 45

BASE ASSY,GEAR SHIFT TERMINAL

€ 92.00

46

0928026005
ref: 46

O RING(D:2.4,ID:26.2)

€ 2.50

47

071200516A
ref: 47

BOLT

€ 1.50

48

0920905011
ref: 48

PIN(5X15.5)

€ 2.00

49

0944004010
ref: 49

SPRING

€ 1.50

50

0940406433
ref: 50

CLAMP(L:80)

€ 3.00
