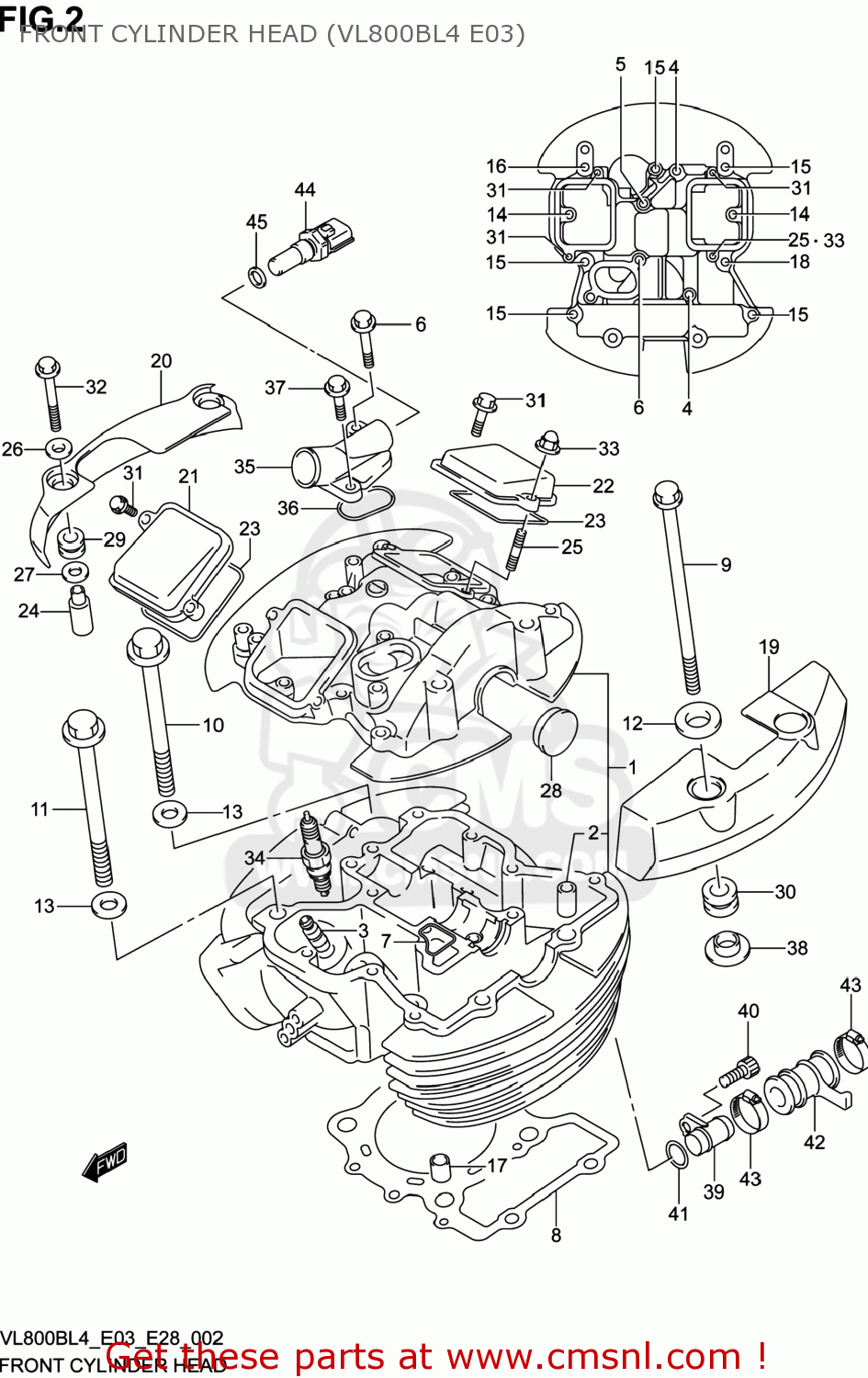

FRONT CYLINDER HEAD (VL800BL4 E03)

ref

part #

description

quantity

1

1110139G10
ref: 1

HEAD ASSY,CYLINDER FR

€ 720.00

2

0920611011
ref: 2
09206-11004

PIN(11X14)

€ 6.00

3

1111541F70
ref: 3

GUIDE,VALVE(OS:0.3)

€ 18.50

4

0910306304
ref: 4

BOLT(6X50)

€ 1.50

5

0910306305
ref: 5

BOLT(6X55)

€ 1.50

6

071300680B
ref: 6

BOLT

€ 3.00

7

1112338A00
ref: 7

GASKET,CYLINDER HEAD WATER (NAS)

€ 2.50

8

1114141F00
ref: 8

GASKET,CYLINDER HEAD FR (NAS)

€ 27.50

9

0910308370
ref: 9

BOLT(8X250)

€ 11.00

10

0910310133
ref: 10

BOLT(10X155)

€ 7.50

11

0910310134
ref: 11

BOLT(10X165)

€ 7.50

12

0916008130
ref: 12

WASHER(8.5X24X1.6)

€ 2.00

13

0916010039
ref: 13

WASHER(10.5X22X2.3)

€ 2.50

14

015470625A
ref: 14

BOLT

€ 2.50

15

015470630A
ref: 15

BOLT

€ 2.50

16

015470640A
ref: 16

BOLT

€ 2.50

17

0421113189
ref: 17

PIN

€ 2.50

18

071200630B
ref: 18

BOLT

€ 3.00

19

1117141FA0
ref: 19

CAP,CYLINDER HEAD COVER FR,L

€ 112.00

20

1117241F00
ref: 20

CAP,CYLINDER HEAD COVER FR

€ 113.50

21

1117538A11
ref: 21

CAP,INSPECTION INTAKE

€ 14.50

22

1117638A11
ref: 22

CAP,INSPECTION EXHAUST

€ 14.50

23

1117738A00
ref: 23

GASKET,INSPECTION CAP (NAS)

€ 5.00

24

1117910F10
ref: 24

SPACER,CYL HEAD COVER CAP NO.2

€ 8.00

25

0910806102
ref: 25

BOLT,STUD

€ 3.00

26

0916006084
ref: 26

WASHER(6.5X18X1.6)

€ 2.00

27

0916009016
ref: 27

WASHER(9.5X20X1)

€ 2.00

28

0924130004
ref: 28

PLUG(OD:30)

€ 6.50

29

0932009016
ref: 29

CUSHION

€ 2.50

30

0932013015
ref: 30

CUSHION

€ 3.00

31

015470620A
ref: 31

BOLT

€ 2.50

32

0154706557
ref: 32

BOLT

€ 2.50

33

0915906093
ref: 33

NUT

€ 2.00

34-1

0948200354
ref: 34-1

PLUG,SPARK(DPR7EA-9)

€ 4.00

34-2

0948200330
ref: 34-2

PLUG,SPARK(DPR9EA-9)

€ 4.00

34-3

0948200331
ref: 34-3

PLUG,SPARK(X27EPR-U9)

€ 4.00

34-4

0948200334
ref: 34-4

PLUG,SPARK(DPR8EA-9)

€ 4.00

34-5

0948200335
ref: 34-5

PLUG,SPARK(X24EPR-U9)

€ 4.00

35

1118141F00
ref: 35

UNION,CYL HEAD OUTLET

€ 31.50

36

1118238A00
ref: 36

GASKET,WATER OUTLET UNION (NAS)

€ 2.00

37

071300620A
ref: 37

BOLT

€ 3.00

38

0930108007
ref: 38

BUSH

€ 4.00

39

1789141F10
ref: 39

UNION,CYL HEAD JOINT

€ 11.50

40

071300612A
ref: 40

BOLT

€ 2.50

41

0928016005
ref: 41

O RING(D:2.4,ID:15.8)

€ 1.50

42

1785441F01
ref: 42

HOSE,CYLINDER HEAD JOINT

€ 12.00

43

0940228513
ref: 43

CLAMP

€ 6.50

44

1365057F00
ref: 44

SENSOR,WATER TEMP

€ 35.50

45

0916812017
ref: 45

GASKET(12X17X1) (NAS)

€ 2.00
