CYLINDER
VL800B VOLUSIA 2014 (L4) USA (E03)

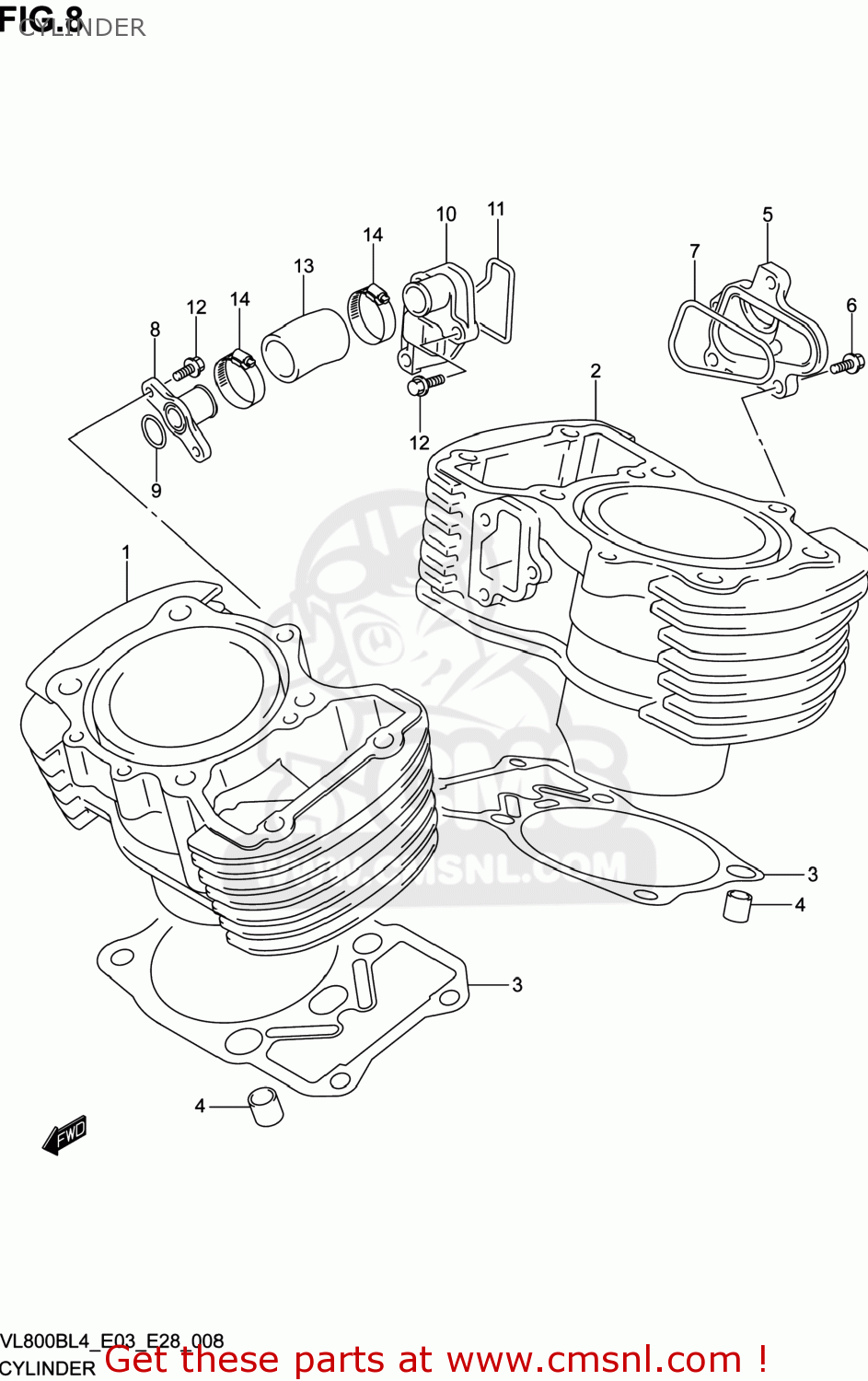

Cylinder diagram VL800B VOLUSIA 2014 (L4) USA (E03)
CYLINDER VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1121041F000F0
ref: 1
CYLINDER,FR
€ 669.00
2
1122041F000F0
ref: 2
CYLINDER,RR
€ 669.00
3
1124139G00
ref: 3
GASKET,CYLINDER (NAS)
€ 9.50
4
0421113189
ref: 4
PIN
€ 2.50
5
1123741F00
ref: 5
CONNECTOR,CYLINDER INLET PIPE
€ 28.00
6
015470620A
ref: 6
BOLT
€ 2.50
7
1124738A00
ref: 7
O RING,INLET WATER CHAMBER
€ 3.00
8
1123541F00
ref: 8
UNION,CYL INLET
€ 16.00
9
0928016005
ref: 9
O RING(D:2.4,ID:15.8)
€ 1.50
10
1789241F00
ref: 10
UNION,CYL OUTLET
€ 20.00
11
1789941F00
ref: 11
O RING,CYL OUTLET UNION
€ 4.50
12
015470616A
ref: 12
BOLT
€ 2.00
13
1785338A10
ref: 13
HOSE,CYLINDER JOINT
€ 3.50
14
0940228513
ref: 14
CLAMP
€ 6.50
