SEAT
VL800B VOLUSIA 2014 (L4) USA (E03)

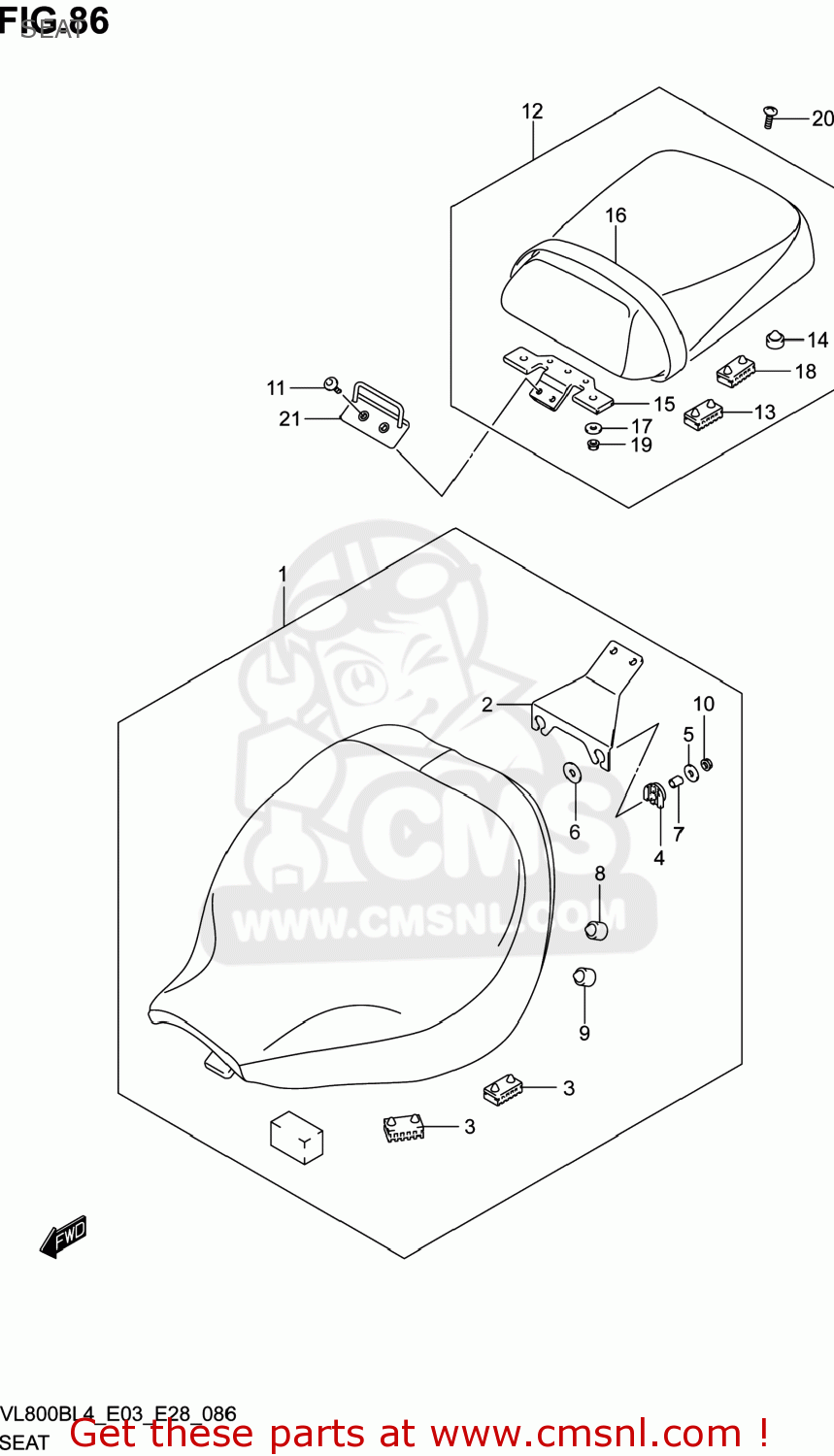

Seat diagram VL800B VOLUSIA 2014 (L4) USA (E03)
SEAT VL800B VOLUSIA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510043H00V4Y
ref: 1
SEAT ASSY
€ 256.50
2
4511543H00
ref: 2
BRACKET,SEAT
€ 15.00
3
4514931300
ref: 3
CUSHION,SEAT(40X20X15)
€ 2.00
4
4521543H00
ref: 4
CUSHION,SEAT BRACKET
€ 9.00
5
0916006088
ref: 5
WASHER(6.5X20X1.6)
€ 2.00
6
0916006501
ref: 6
WASHER(6.5X24X1.6)
€ 2.00
7
0918006288
ref: 7
SPACER(6.5X10X11)
€ 1.50
8
0932110002
ref: 8
CUSHION(11.5X22X20)
€ 2.00
9
0932110033
ref: 9
CUSHION
€ 3.50
10
083161006A
ref: 10
NUT
€ 2.50
11
0910606064
ref: 11
BOLT(6X18)
€ 6.00
12
4530043H00V4Y
ref: 12
SEAT ASSY,PILLION
€ 173.50
13
4514931300
ref: 13
CUSHION,SEAT(40X20X15)
€ 2.00
14
4514712FA0
ref: 14
CUSHION,RR
€ 3.50
15
4533043H00
ref: 15
BRACKET,PILLION SEAT
€ 22.50
16
4538043H00V4Y
ref: 16
BAND,SEAT PILLION(BLACK)
€ 5.50
17
0916006088
ref: 17
WASHER(6.5X20X1.6)
€ 2.00
18
0932110002
ref: 18
CUSHION(11.5X22X20)
€ 2.00
19
083161006A
ref: 19
NUT
€ 2.50
20
0910608140
ref: 20
BOLT(8X16)
€ 6.00
21
4521043H00
ref: 21
BRACKET,SEAT SUPPORT
€ 13.00
